Parker EME
Compax3 device description
192-120113 N08 C3I12T11 - December 2010

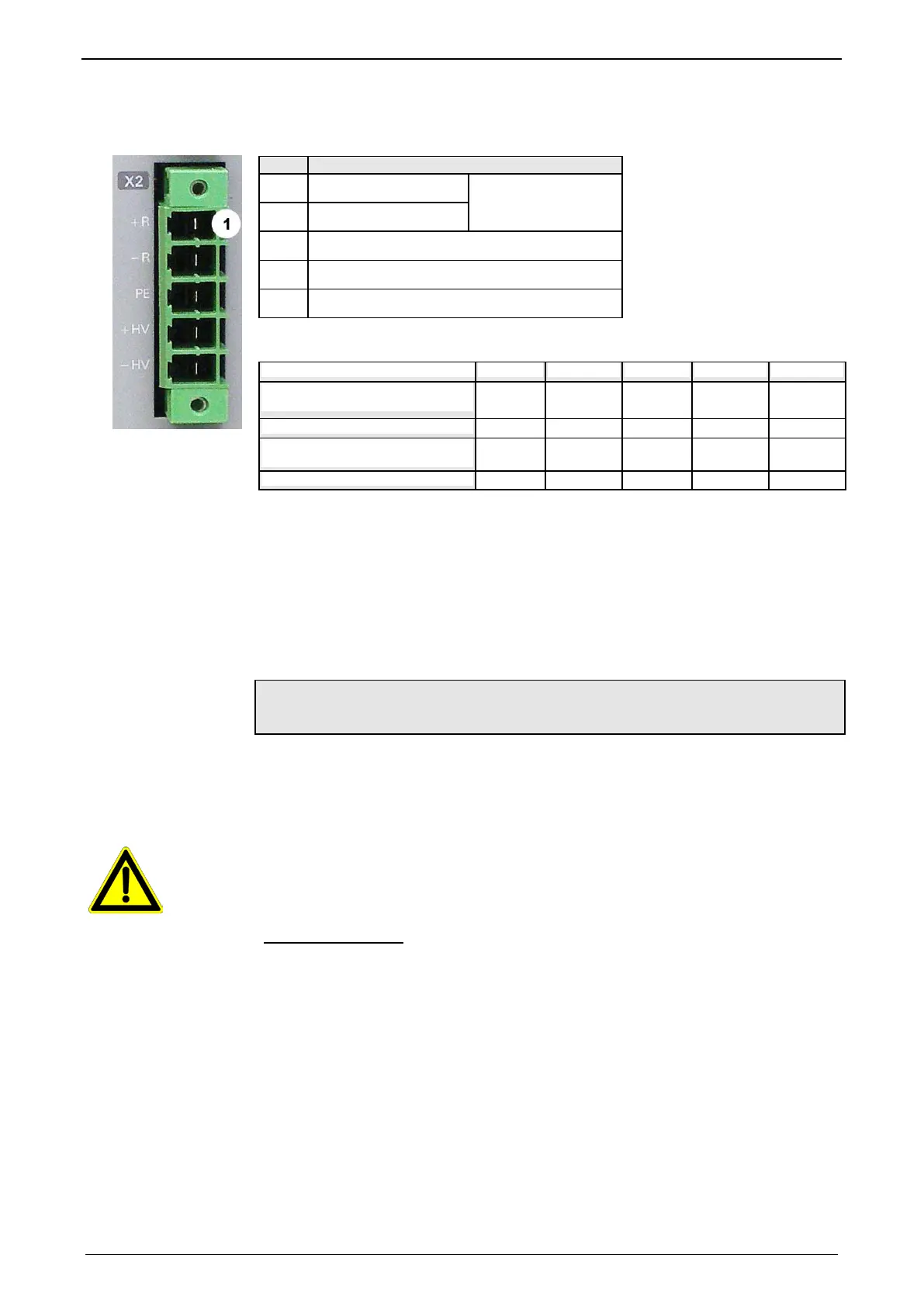

3.3.6.2 Braking resistor / high voltage supply connector X2
for 3AC 400VAC/480VAC_C3S devices
1 + Braking resistor no short-circuit
protection!
2 - Braking resistor
3 PE
4 + DC high voltage supply
5 - DC high voltage supply
Braking operation Compax3SxxxV4 3AC
Controller type S015V4 S038V4 S075V4 S150V4 S300V4
Capacitance / storable energy
400V / 480V
235µF
37 / 21 Ws
235µF
37 / 21 Ws
470µF
75 / 42 Ws
690µF
110 / 61 Ws
1230µF
176 / 98 Ws
Minimum braking- resistance
100Ω 100Ω 56Ω 33Ω 15Ω
Recommended nominal power
rating
60 ...
100W
60 ... 250W
60 ... 500
W
60 ... 1000
W
60 ... 1000
W
Maximum continuous current
10A 10A 15A 20A 30A
Connection of a braking resistor
Minimum line cross section: 1.5mm
2
Maximum line length: 2m
Maximum output voltage: 800VDC
3.3.6.3 Connection of the power voltage of 2 C3S 3AC
devices
The power voltage DC of the single phase Compax3 servo axes must not be
connected!
In order to improve the conditions during brake operation, the DC power voltage of
2 servo axes may be connected.
The capacity as well as the storable energy are increased; furthermore the braking
energy of one servo axis may be utilized by a second servo axis, depending on the
application.
It is not permitted to connect the power voltage in order to use one brake
circuit for two servo axes, as this function cannot be ensured reliably.
Note the following:
Caution! In case of non-compliance with the following instructions, the
device may be destroyed!
You can only connect two similar servo axes (same power supply; same rated
currents)
Connected servo axes must always be fed separately via the AC power supply.
If the external pre-fuse of one of the servo axes takes action, the second servo axis
must also be disconnected automatically.
Please connect as follows:
Servo axis 1 X2/4 to servo axis 2 X2/4
Servo axis 1 X2/5 to servo axis 2 X2/5
