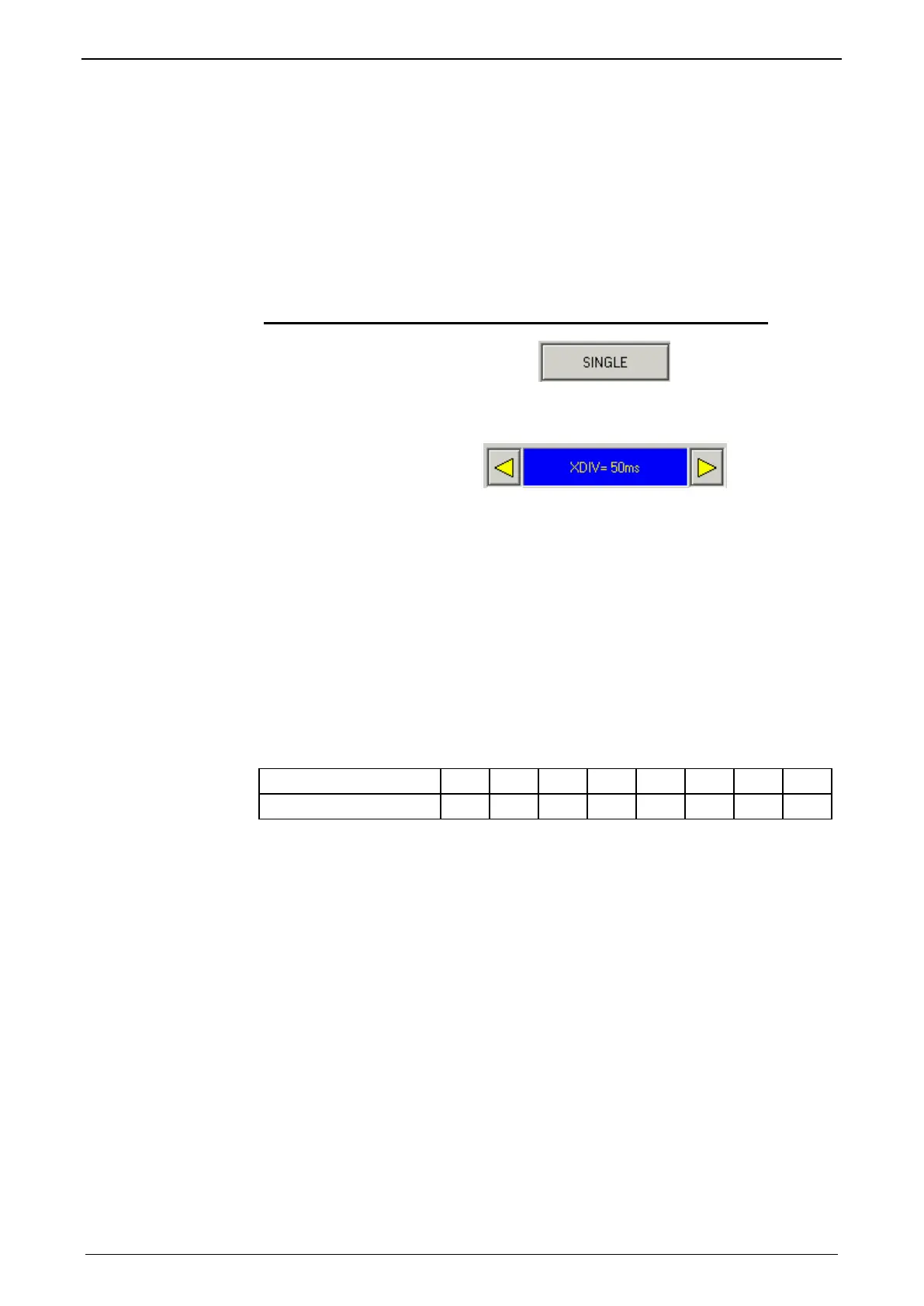

Page #173 background image
Parker EME
Setting up Compax3
192-120113 N08 C3I12T11 - December 2010
171
4.4.2.3 Example: Setting the Oscilloscope
SINGLE measurement with 2 channels and logic trigger on digital
inputs
The order of the steps is not mandatory, but provides a help for better
understanding.
As a rule, all settings can be changed during a measurement. This will lead to an
automatic interruption of the current measurement and to a re-start of the
measurement with the new settings:
Assumption: A test movement in the commissioning mode is active.
1.) Select OSCI operating mode
2.) Select Time basis XDIV
3.) Select channel 1 signal source digital inputs 120.2 from status tree with
the aid of Drag & Drop
4.) Select channel 2 (filtered actual speed) via "Drag and drop" from the
status tree
5.) Set trigger to channel 1 and DG.
Input of the mask in HEX
Triggering a rising edge to input I1.
BIT 0 (value 1) = I0
BIT 1 (value 2) = I1
BIT 2 (value 4) = I2 etc.
Trigger to input
I0 I1 I2 I3 I4 I5 I6 I7
Trigger mask in hex
1 2 4 8 10 20 40 80
The masks can also be combined so that the trigger is only active, if several inputs
are active. Example: Triggering to I2 and I5 and I6 -> 4h + 20h + 40h = 64h
The mask for input I1 is in this case 2.
Select rising edge.
NOTE: If the trigger mask DG (digital) is selected for a channel, the display mode
of the trigger channel is automatically set to DIG display.
6.) Start measurement
7.) Set pretrigger in the OSCI window
Note: There is no level for the DIG trigger. The the event limit determines the mask
If a trigger event occurs, the measurement values are captured until the
measurement is completed.
Afterwards, the measurement values are read from the Compax3 and displayed.
The display mask of trigger channel 1 was not yet limited, therefore it shows all 16
bit tracks (b0...b15). In order to limit it to 8 bit tracks, you must call up the menu for
channel 1 via [CH1] and select "change logic of display mask [H].
Limit the display mask to 8 bit tracks with Mask FFh.
In the display the bit tracks b0 to b7 are now shown:
