Cursor modes -functions

Depending on the operating mode, different cursor functions are available within

the osci monitor.

The functions can be changed sequentially by pressing on the right mouse button.

Cursor Symbol

Function

Set Marker 1

the measurement values of the active channel as well as the Y

difference to marker 2 are displayed

Set Marker 2

Delete and hide marker

Move offset of the active channel.

The yellow symbol indicates that the scrolling is active.

Set trigger level and pretrigger

In the ROLL operating mode, marker functions and set trigger level positions are

not available.

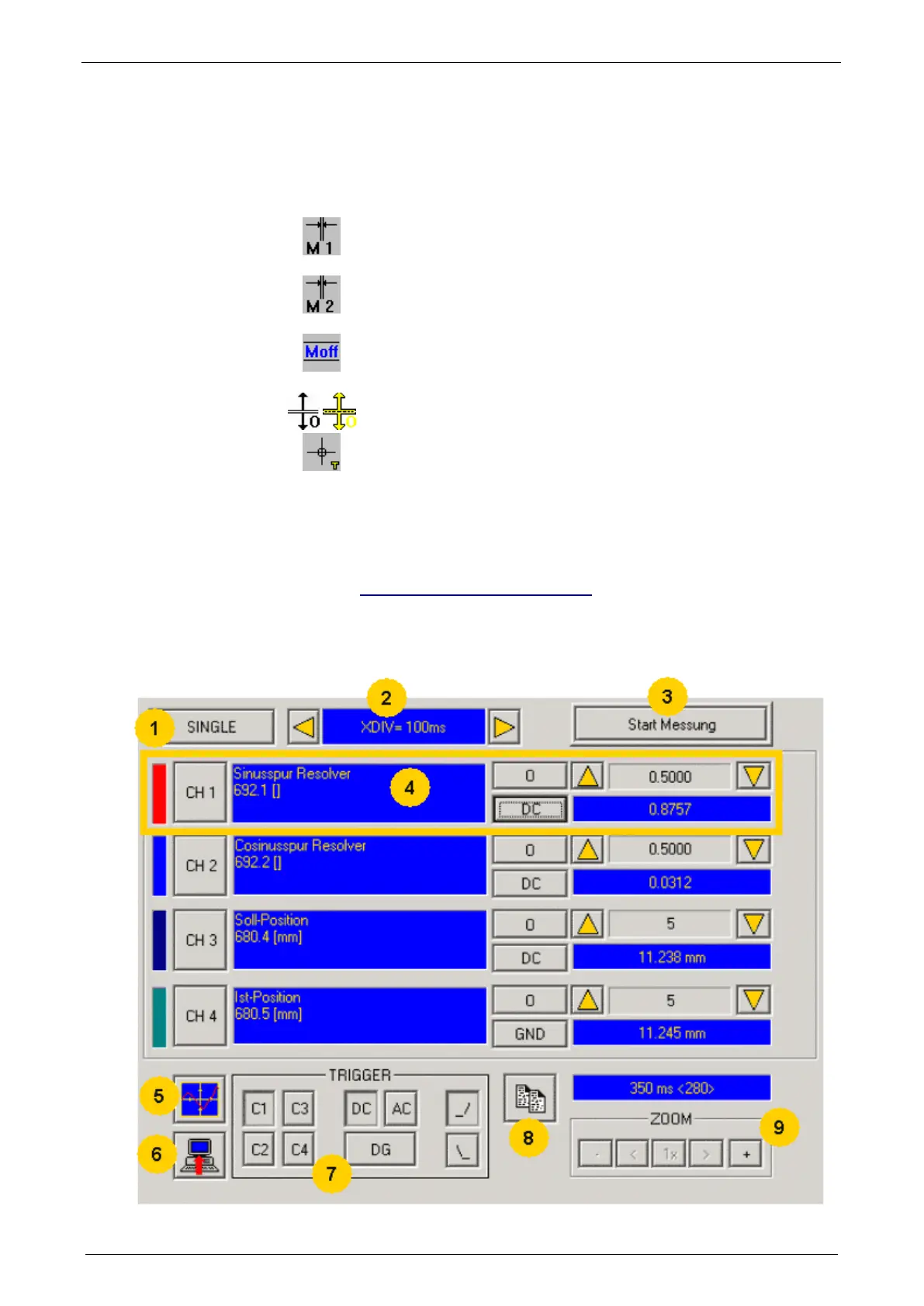

4.4.2.2 User interface

In this chapter you can read about:

Oscilloscope operating mode switch: .............................................................................

Setting the time basis XDIV ...........................................................................................

Settings for channels 1..4 ..............................................................................................

Trigger settings ..............................................................................................................

Special functions ...........................................................................................................
