Parker Compax3 User Manual

Parker EME
Compax3 Accessories
192-120113 N08 C3I12T11 - December 2010
369

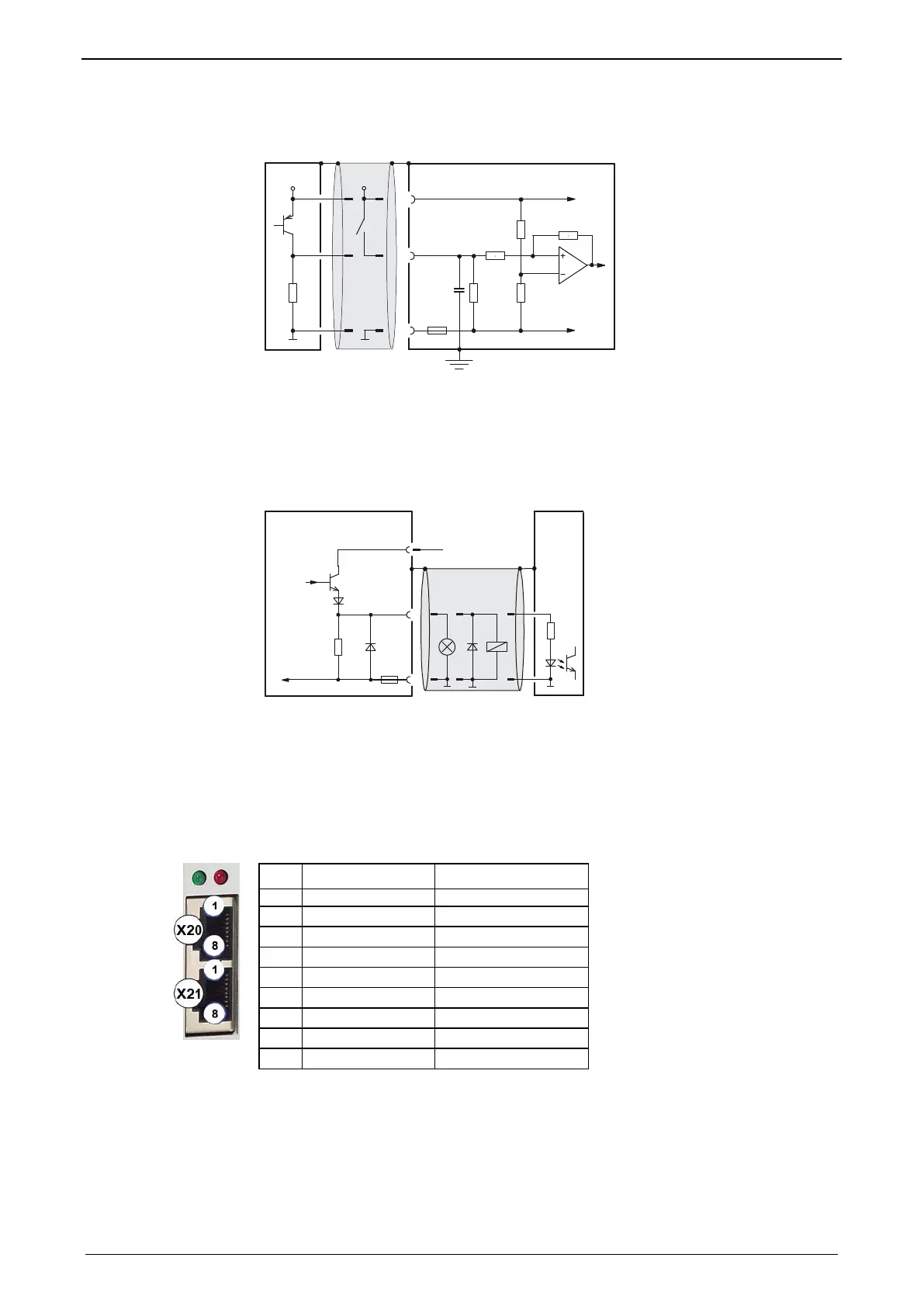

Input wiring of digital inputs
100KΩ
X22/11
X22/6
10K
Ω22KΩ
22KΩ
22KΩ
SPS/PLC
F1
X22/15
24VDC
24VDC
10nF
Compax3
The circuit example is valid for all digital inputs!
F1: Quick action electronic fuse; can be reset by switching the 24VDC supply off
and on again.
Output wiring of digital outputs
X12/2
22KΩ
X22/15
X22/11
SPS/
PLC
F1
24VDC
Compax3
The circuit example is valid for all digital outputs!
The outputs are short circuit proof; a short circuit generates an error.
F1: Quick action electronic fuse; can be reset by switching the 24VDC supply off
and on again.
10.9.2. HEDA (motion bus) - Option M11
RJ45 (X20)
RJ45 (X21)
Pin
HEDA in
HEDA out
1
Rx
Tx
2 Rx/ Tx/
3 Lx Lx
4 - factory use
5 - factory use
6 Lx/ Lx/
7 - factory use
8 - factory use
