Homing modes with home switch (on X12/14)
In this chapter you can read about:
Without motor reference point ........................................................................................ 112
With motor reference point............................................................................................. 115
Without motor reference point
In this chapter you can read about:
Without direction reversal switches ................................................................................ 112
With direction reversal switches ..................................................................................... 113
Without direction reversal switches

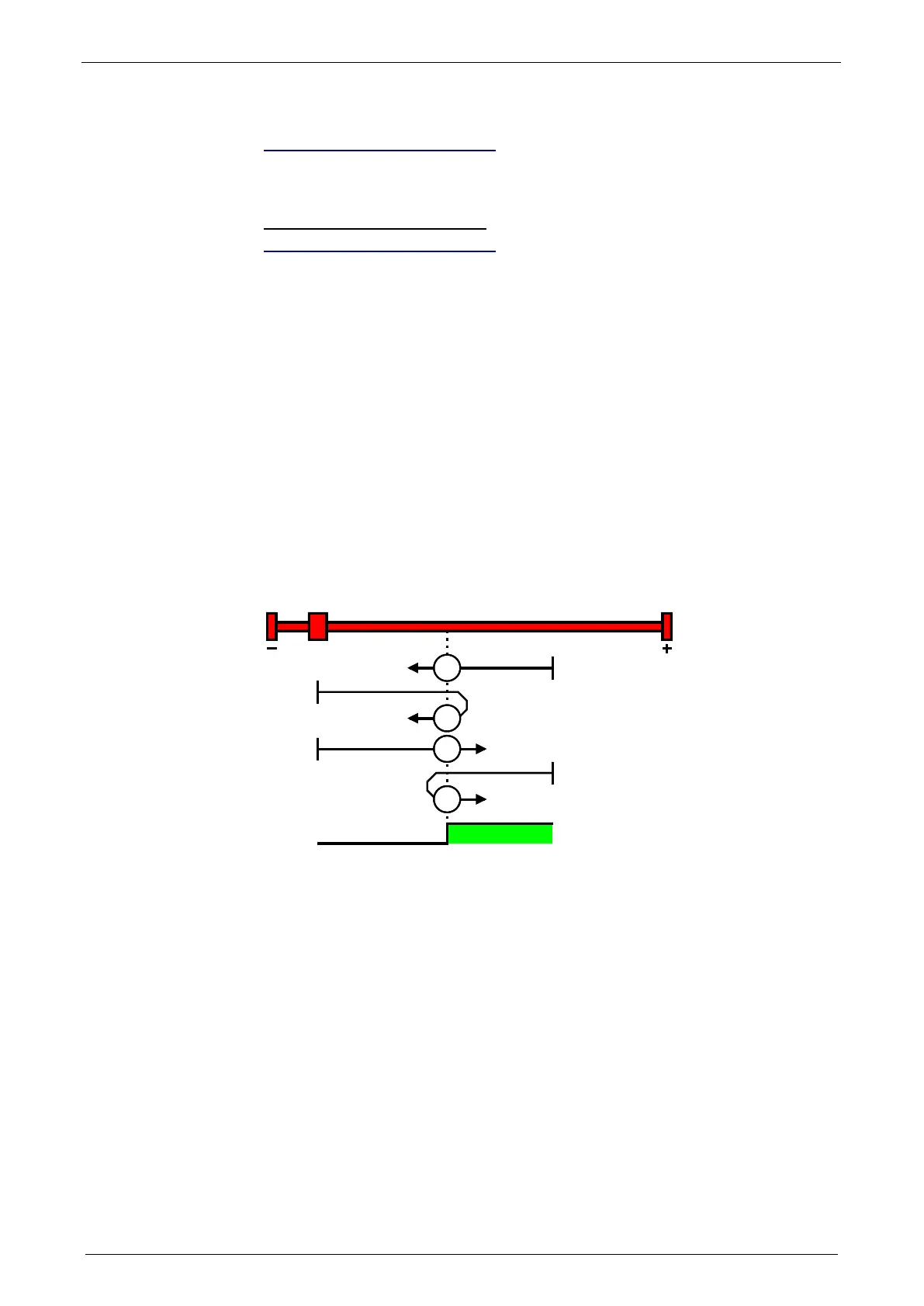

MN-M 19,20: MN-Initiator = 1 on the positive side
The MN initiator can be positioned at any location within the travel range. The
travel range is then divided into 2 contiguous ranges: one range with deactivated
MN initiator (left of the MN initiator) and one range with activated MN initiator (right
of the MN initiator).
When the MN initiator is inactive (signal = 0) the search for the machine reference
is in the positive travel direction.
MN-M 19: The negative edge of the MN proximity switch is taken directly as MN
(the motor zero point remains without consideration).
MN-M 20: The positive edge of the MN proximity switch is used directly as MN (the
motor zero point remains without consideration).
1: logic state
point, without
direction reversal
