Parker Compax3 User Manual

Compax3 Accessories
C3I12T11
368
192-120113 N08 C3I12T11 - December 2010
10.9 Options M1x
In this chapter you can read about:
Input/output option M12 ................................................................................................. 368
HEDA (motion bus) - Option M11 .................................................................................. 369
Option M10 = HEDA (M11) & I/Os (M12) ...................................................................... 371
10.9.1. Input/output option M12
An optional input/output extension is available for Compax3. This option is named
M12 (or M10: with HEDA) and offers 8 digital 24V inputs and 4 digital outputs on
X22.

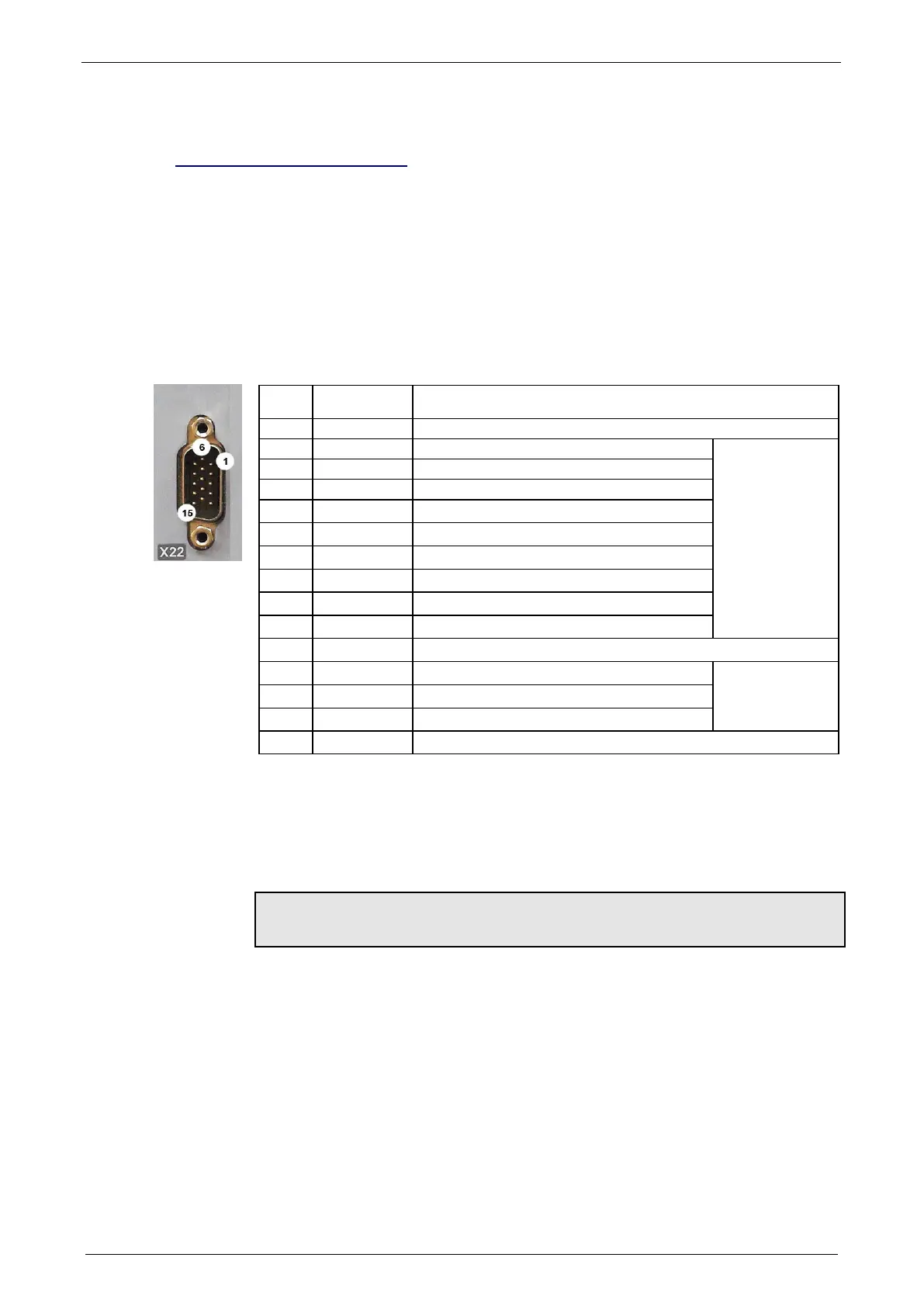

10.9.1.1 Assignment of the X22 connector
Pin
X22/
Input/output
High density/Sub D
1 n.c. factory use
2 M.I0 Address 0
*
3 M.I1 Address 1
4 M.I2 Address 2
5 M.I3 Address 3
6 M.I4 Address 4
7 M.I5 Start (edge triggered)
8 M.I6 no Stop (2nd Stop input)
9 M.I7 Open motor holding brake
10 M.O8 Machine zero (home) Position known
11 I 24 VDC power supply
12 M.O9 programmable status bit 0 (PSB0)
*
13 M.O10 programmable status bit 1 (PSB1)
14 M.O11 programmable status bit 2 (PSB2)
15 E GND24V
* free assignment at operation via RS232 / RS485 as well as configurable in
groups of 4 as inputs or outputs (C3 ServoManager).
 All inputs and outputs have 24V level.
 The input/output designation M.I0 ... helps to make the distinction between the
standard I/Os on X12 and the inputs/outputs of the M options.
 Maximum load on an output: 100mA
 Maximum capacitive load: 50nF (max. 4 Compax3 inputs)
Caution! The 24VDC power supply (X22/11) must be supplied from an
external source and must be protected by a 1.2A delayed fuse!
