Parker Compax3 User Manual

Compax3 device description
C3I12T11
58
192-120113 N08 C3I12T11 - December 2010

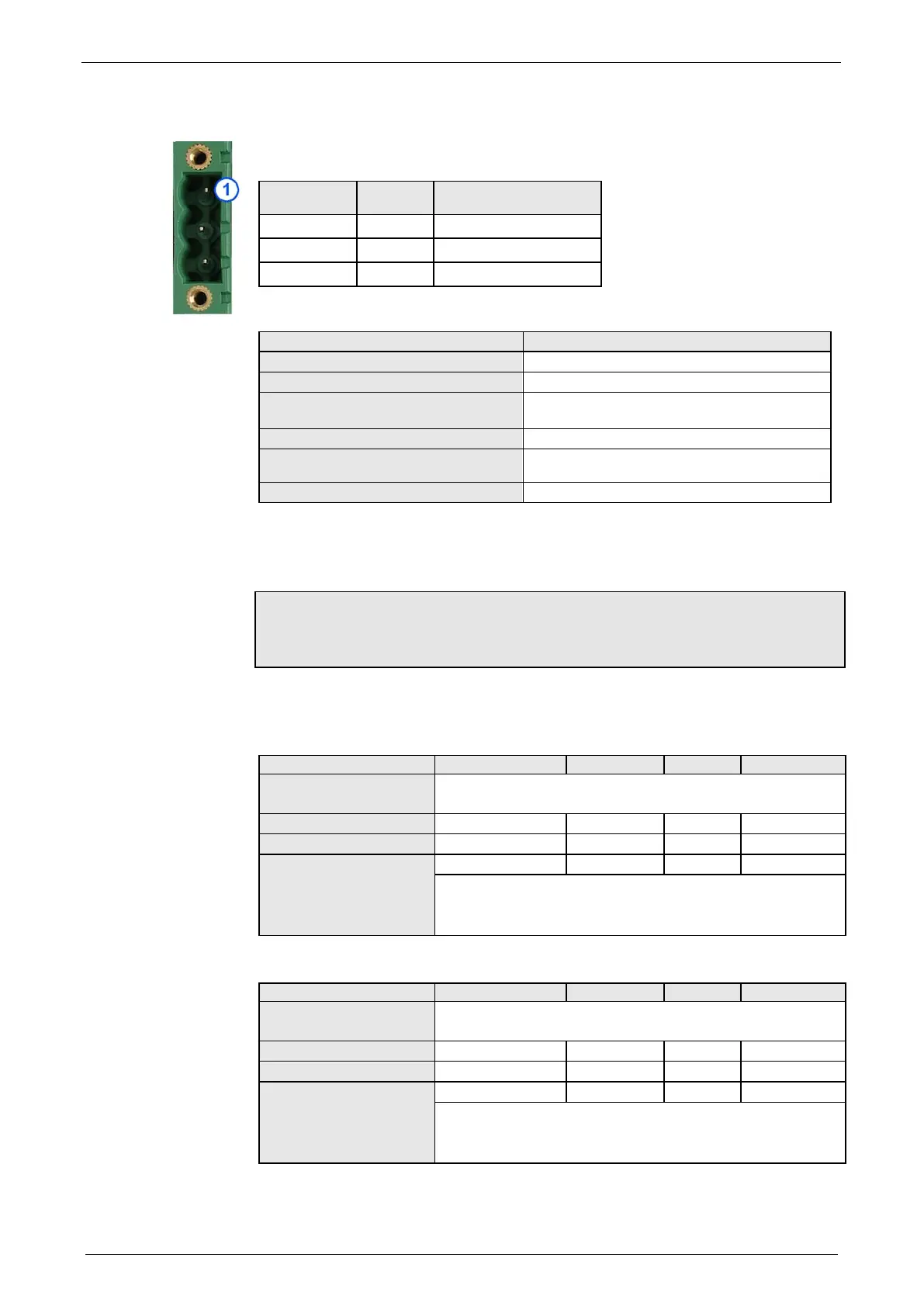

3.6.6. Control voltage 24 VDC C3H
Connection of control voltage 24VDC figure (see on page 55)
Connector
X4 Pin
Descripti
on
1 NC NC
2 GND24V GND
3 +24 V 24 VDC (power supply)
Control voltage 24VDC Compax3S and Compax3H
Controller type
Compax3
Voltage range
21 - 27VDC
Current drain of the device
0.8 A
Total current drain
0.8 A + Total load of the digital outputs + current
for the motor holding brake
Ripple
0.5Vpp
Requirement according to safe extra
low voltage (SELV)
yes
Short-circuit proof
conditional (internally protected with 3.15AT)
3.6.7. Mains connection Compax3H
Avoid permanent switching on and off so that the charging connection is not
overloaded. Therefore wait at least 1 minute before switching on the device
again.
Connection of mains voltage figure (see on page 53)
Mains connection Compax3HxxxV4 3*400VAC
Device type Compax3
H050V4 H090V4 H125V4 H155V4
Supply voltage
Three-phase 3*400VAC
350-528VAC / 50-60Hz
Input current
66Arms 95Arms 143Arms 164Arms
Output current
50Arms 90Arms 125Arms 155Arms
Maximum fuse rating per
device(=short circuit
rating)
Branch circuit protection
according to UL
80A 100A 160A 200A
JDDZ Class K5 or H
JDRX Class H
Mains connection Compax3HxxxV4 3*480VAC
Device type Compax3
H050V4 H090V4 H125V4 H155V4
Supply voltage
Three-phase 3*480VAC
350-528VAC / 50-60Hz
Input current
54Arms 82Arms 118Arms 140Arms
Output current
43Arms 85Arms 110Arms 132Arms
Maximum fuse rating per
device(=short circuit
rating)
Branch circuit protection
according to UL
80A 100A 160A 200A
JDDZ Class K5 or H
JDRX Class H
Device protection
