Parker Compax3 User Manual

Parker EME
Compax3 device description
192-120113 N08 C3I12T11 - December 2010
67

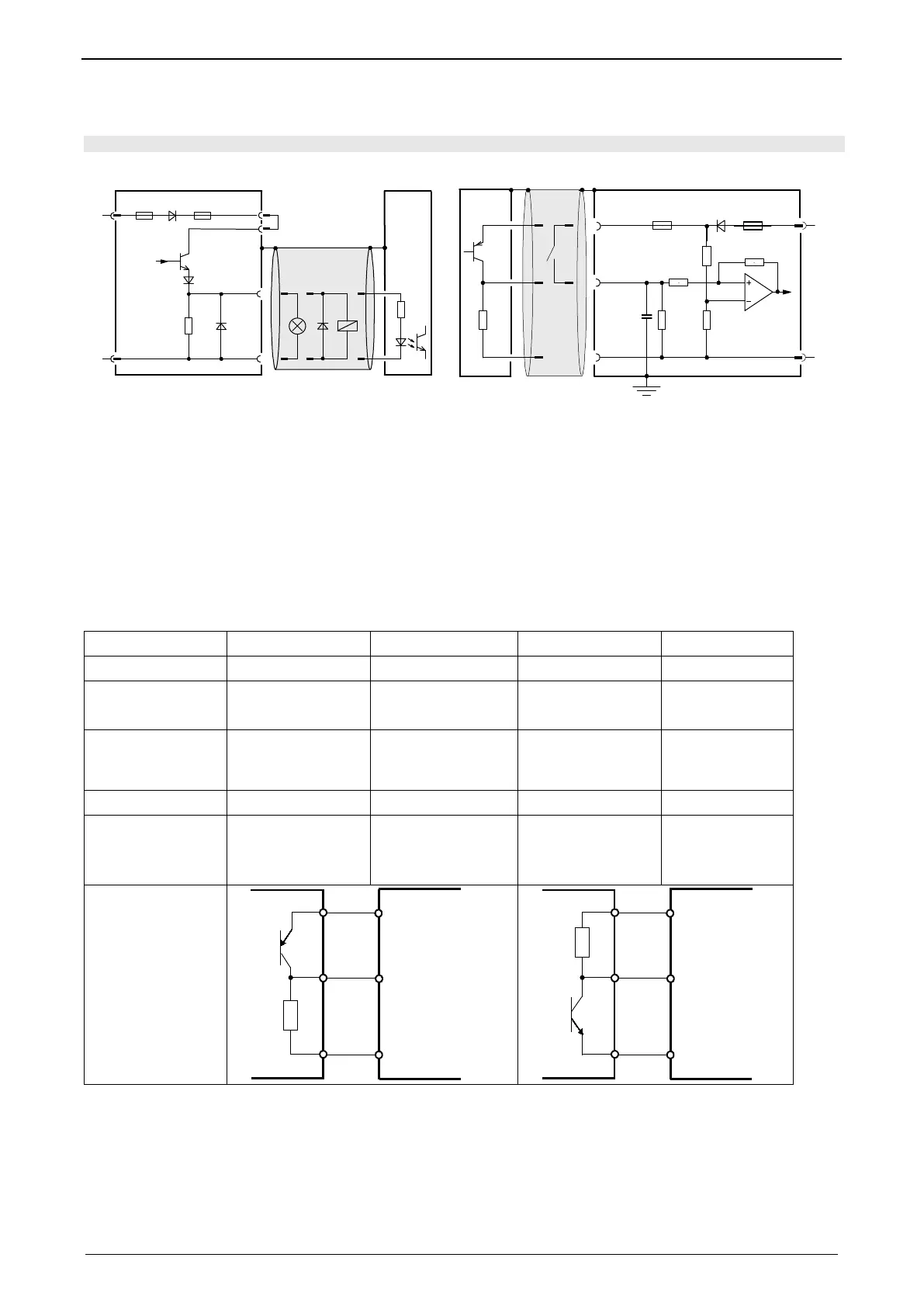

3.8.3.1 Connection of the digital Outputs/Inputs
Wiring of digital outputs
Status of digital inputs
24V
0V
X12/2
18.2K
Ω
X12/15
X12/1
X12/11
SPS/
PLC
F2
F1
Compax3
24V
0V
100K
Ω
X12/1
X12/6
X12/15
10K
Ω
22K
Ω
22K
Ω
22K
Ω
SPS/PLC
F2
F1
10nF
Compax3
The circuit example is valid for all digital outputs!
The outputs are short circuit proof; a short circuit
generates an error.
The circuit example is valid for all digital inputs!
Signal level:
 > 9.15V = "1" (38.2% of the control voltage applied)
 < 8.05V = "0" (33.5% of the control voltage applied)
F1: Delayed action fuse
F2: Quick action electronic fuse; can be reset by switching the 24 VDC supply off and on again.
3.8.3.2 Logic proximity switch types
Type 1 2 3 4
Transistor switch PNP PNP NPN NPN
Logic (N.O.)
“active high"
(N.C)
“active low"
(N.O.)
“active low"
(N.C)
“active high"
Description of logic Compax3 sees a
logical “1” upon
activation
Compax3 sees a
logical “0” upon
activation"
Compax3 sees a
logical “0” upon
activation"
Compax3 sees a
logical “1” upon
activation
Fail safe logic no yes Only conditional
1)
no
Instruction for pull
up resistor in the
initiator
- - Rmin=3k3
Rmax=10k
2)
Rmin=3k3
Rmax=10k
2)
Connections
X12/1 (+24 VDC)
X12/15 (GND)
X12/X (Input)
Compax3
Initiator
Initiator
X12/1 (+24 VDC)
X12/15 (GND)
X12/X (Input)
1)
When the connection between transistor emitter of the initiator and X12/15
(GND24V of the Compax3 )is lost, it can not be guaranteed, that the Compax3
detects a logical „0".
2)
The INSOR NPN types INHE5212 and INHE5213 manufactured by Schönbuch
Electronic do correspond to this specification.
