5.19

9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual

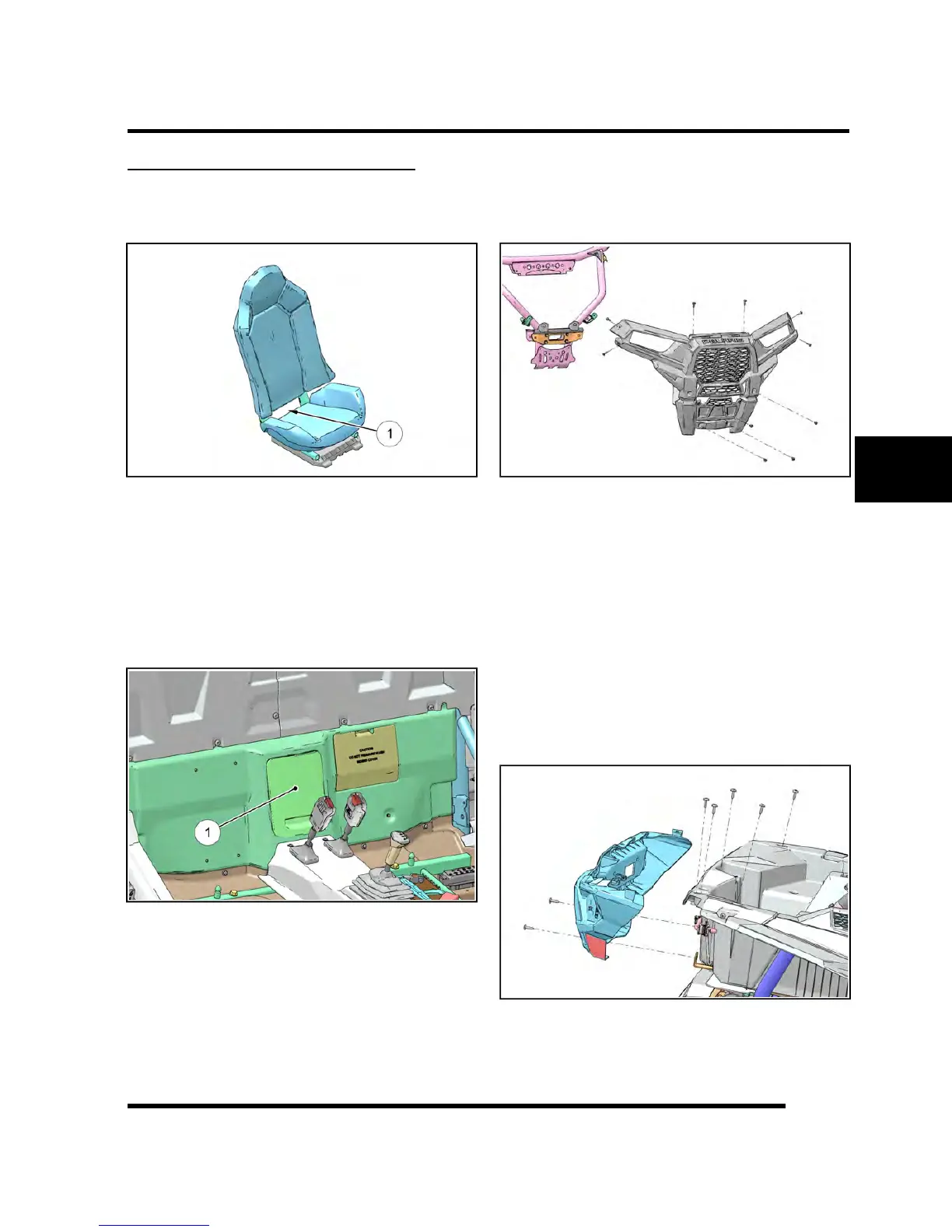

BODY COMPONENT REMOVAL

Seats

1. To remove any of the seats, lift upward on the latch

lever (Item 1) located behind the seat bottom.

2. Lift upward and forward on the seat while lifting up

on the latch lever and remove the seat from the

vehicle.

Engine Service Panel

1. Remove the seats:

• Remove the driver and passenger seats

2. Lift the panel upward and towards the front of the

vehicle to remove the panel (Item 1).

Front Bumper XP

1. Remove the ten T-40 Torx screws retaining the front

bumper.

2. Disconnect the front headlight connectors.

3. Remove the ten Torx screws retaining the upper,

middle and lower portion of the bumper.

4. Pull out on the front bumper to remove the bumper,

headlights and radiator deflector as an assembly.

5. If replacing the front bumper, remove both headlights

and the radiator deflector.

Rear Bumper

1. Disconnect the harness connectors at the tail lights.

2. Remove the zip ties retaining the harness to the rear

bumper.

3. Remove the seven (two lower and five upper) T-27

Torx screws retaining rear bumper to the cargo box.

4. Remove rear bumper from vehicle.

BODY / STEERING / SUSPENSION
