9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.
neutral. If throttle is applied, this limiting feature
prevents operation, which protects the park brake
pads from excessive wear.
Diagnostic Mode
The diagnostic mode is accessible only when the check
engine MIL has been activated.
Use the following procedure to display diagnostic trouble
codes that were activated during current ignition cycle
causing the MIL to illuminate. Diagnostic trouble codes
will remain stored in the gauge (even if MIL turns off) until
the key is turned off.
1. If the trouble code (s) are not displayed, use the
MODE button to toggle until “CK ENG” displays on
the information display area.
2. Press and hold the MODE button to enter the
diagnostics code menu.

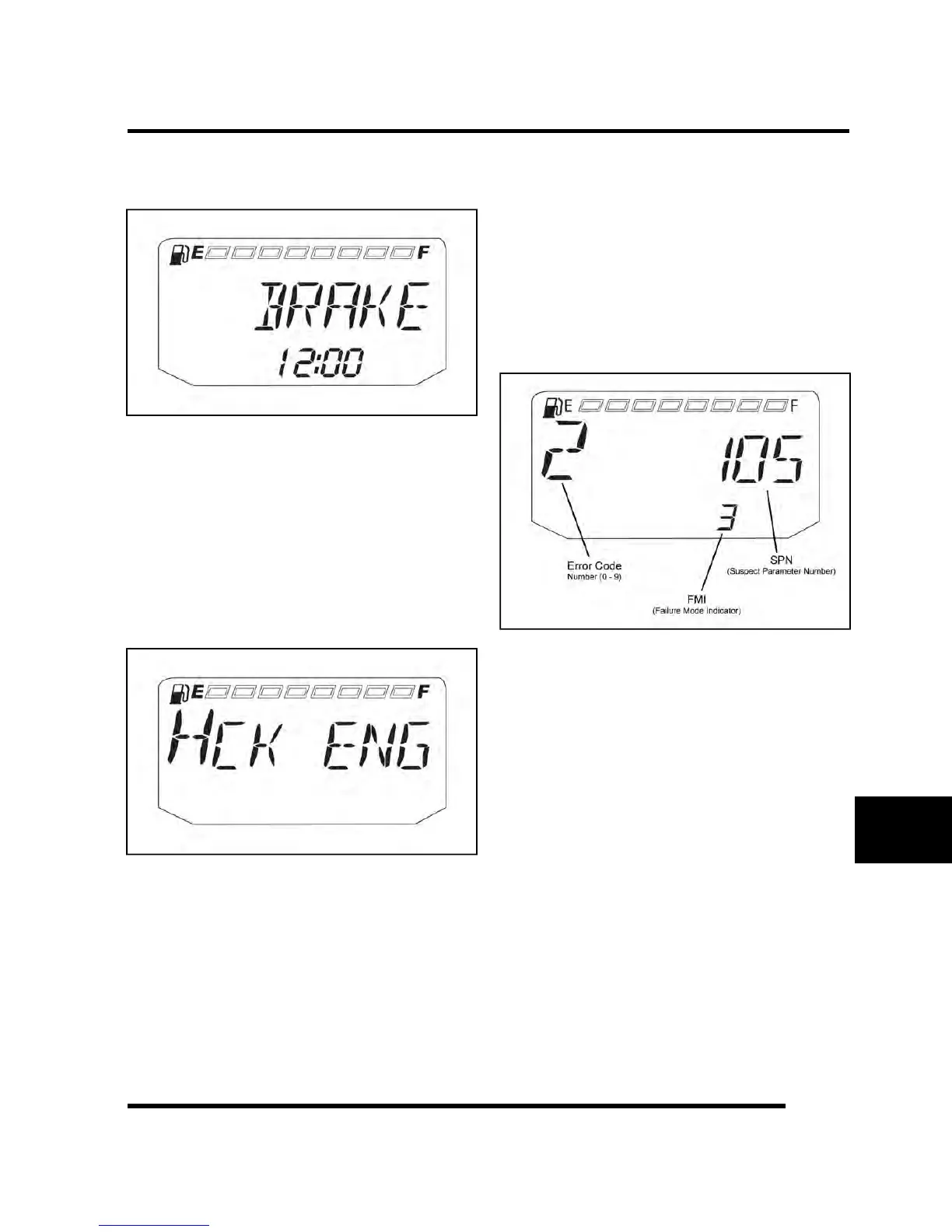

3. A set of three numbers will appear in the information
area.
• The first number (located far left) can range from 0
to 9. This number represents the total number of
trouble codes present (example: 2 means there
are 3 codes present).
• The second number (located top right) can be 2 to
6 digits in length. This number equates to the
suspected area of fault (SPN).
• The third number (located bottom right) can be 1 to
2 digits in length. This number equates to the fault
mode (FMI).
4. Use the trouble code reference table in the EFI
Chapter for a description of each code (see Chapter
4).
5. If more than one code exists, press the MODE button
to advance to the next trouble code.
6. To exit the diagnostic mode, press and hold the
MODE button or turn the ignition key OFF once the
codes are recorded.
NOTE: If there is a diagnostic problem with the
power steering system, the power steering MIL
will illuminate and blink in place of the check
engine MIL.
ELECTRICAL
