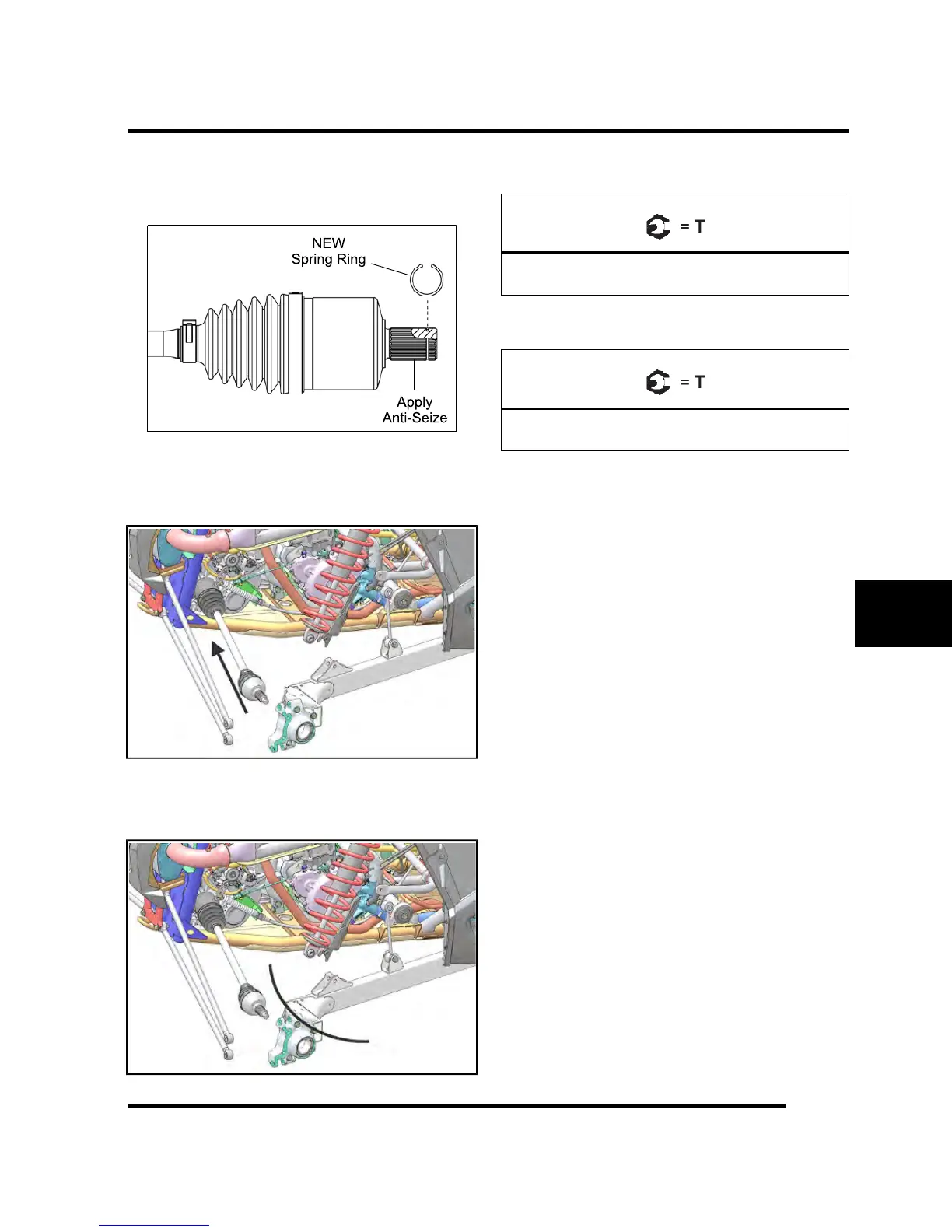

Drive Shaft Installation
1. Install new spring ring (Item 1) on drive shaft. Apply
an anti-seize compound to the splines (Item 2).
2. Align splines of drive shaft with transmission splines
and reinstall the drive shaft. Use a rubber mallet to
tap on the outboard end of the drive shaft if
necessary.
3. Swing the rear trailing arm assembly outward and
upward until the rear axle can be inserted into the
bearing carrier. Support the trailing arm from
underneath.
4. Install the lower shock mounting bolt and new nut.
Torque fastener to specification.
Lower Shock Bolt to Trailing Arm:
70 ft-lbs (95 Nm)
5. Install the stabilizer bar mounting bolt, washer and
new nut. Torque fastener to specification.
Stabilizer Bar Linkage:
40 ft-lbs (54 Nm)
6. Apply Anti-Seize to drive shaft axle splines.
