Polaris 2014 RZR XP 1000 Service Manual

5
5.51
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.
Rear Shock Service Information
REAR SHOCK DESIGN DETAILS
Travel
12.09″ (30.71 mm)
Extended Length 34.36″ (87.27 mm)

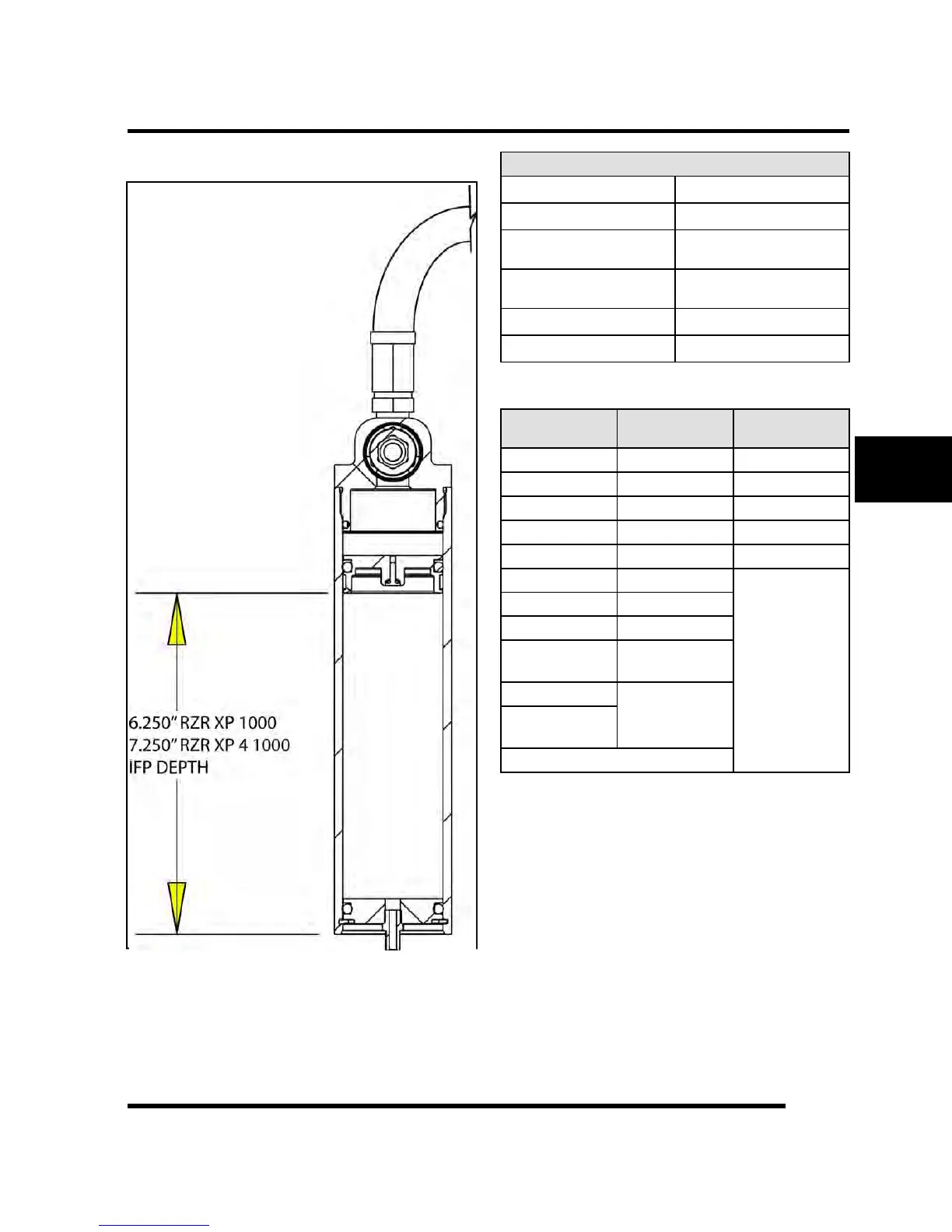

IFP Location RZR XP
1000
6.25″ (158.8 mm)
IFP Location RZR XP 4
1000
7.25″ (184.15 mm)
Nitrogen Pressure 125 psi (862 kPa) +/- 5%
Gas Shock Oil P/N
2874124 (qt.)
Shock Valving RZR XP 1000
COMPRES-
SION
REBOUND CLICKER
1.55 x 0.008 1.500 x 0.01 1.00 x 0.015
1.00 x 0.010 1.45 x 0.01 1.00 x 0.015
1.55 x 0.008 1.30 x 0.01 0.90 x 0.015
1.55 x 0.008 1.20 x 0.01 0.70 x 0.015
1.55 x 0.008 1.10 x 0.01 0.70 x 0.015
1.55 x 0.008 1.00 x 0.01
1.55 x 0.008 0.90 x 0.01
1.45 x 0.010 0.80 x 0.01
1.30 x 0.012
0.75 x 0.065
(top-out)
1.20 x 0.012
1.50 x 0.125
(top-out)
Piston Bleed Orifice: 0.100″
BODY / STEERING / SUSPENSION
