13. Install the right rear wheel. Torque wheel nuts to
specification.
Wheel Nuts:
120 ft-lbs (163 Nm)
14. Connect the (-) negative battery cable.
15. Fill and bleed cooling system as outlined in this
chapter.
16. Install the hood, engine service panel and seats.
Water Pump Service
NOTE: The water pump cover gasket can be
replaced while the water pump housing is still
installed in the engine.
1. Remove water pump assembly as outlined in this
chapter.

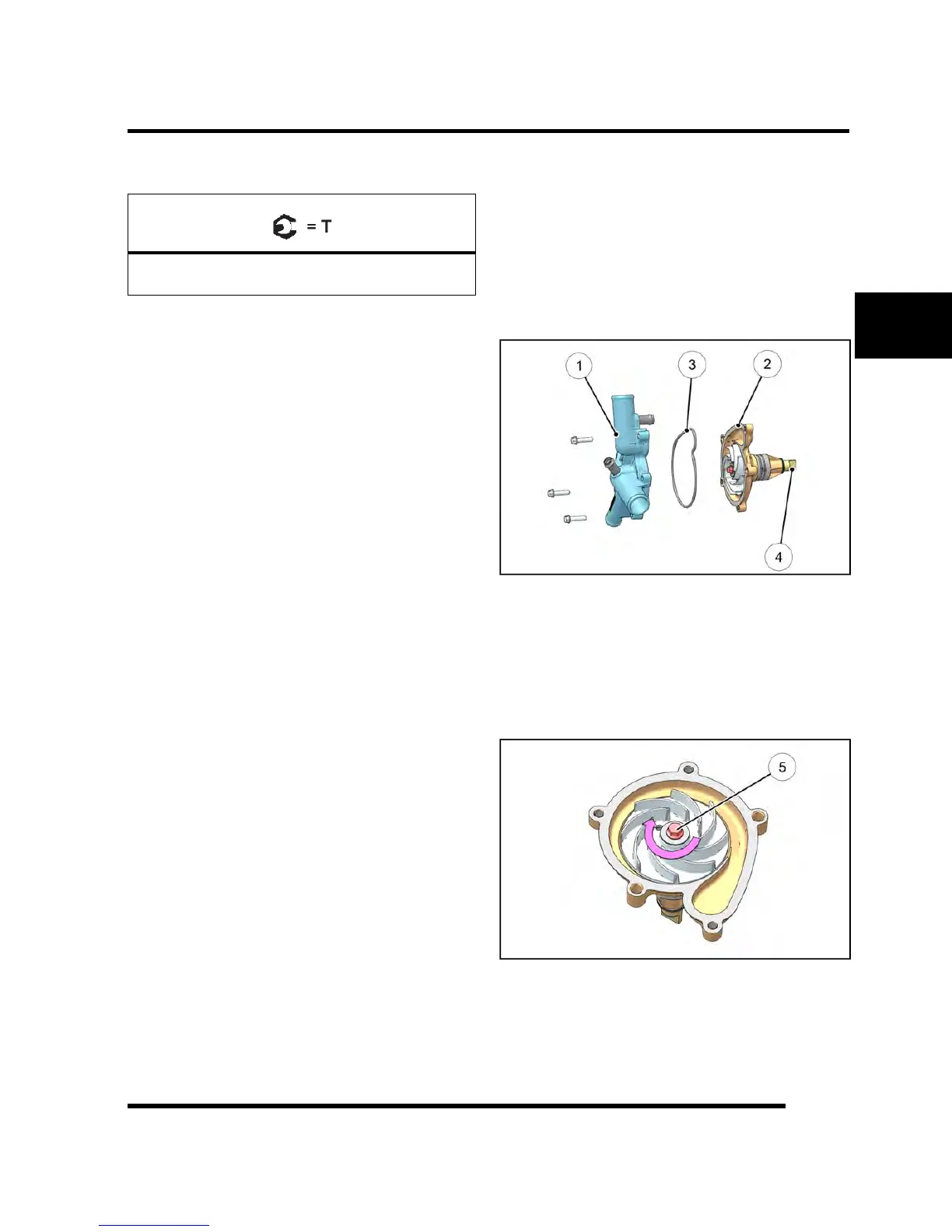

2. Remove the three bolts retaining water pump cover
(Item 1) to water pump housing (Item 2). Discard
cover gasket (Item 3).
3. Place the water pump drive tab (Item 4) vertically into
a soft jaw vice.
4. Remove the bolt and washer retaining the water
pump impeller to the shaft. Inspect the impeller veins
and water pump housing for damage. Replace if
needed.
NOTE: The water pump impeller bolt (Item 5) is
left hand thread (reverse thread).
5. Remove impeller from water pump shaft.
6. Using an appropriate arbor press, properly support
the water pump housing and press out the water
pump shaft from the impeller side.
