Polaris 2014 RZR XP 1000 Service Manual

7.24
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.

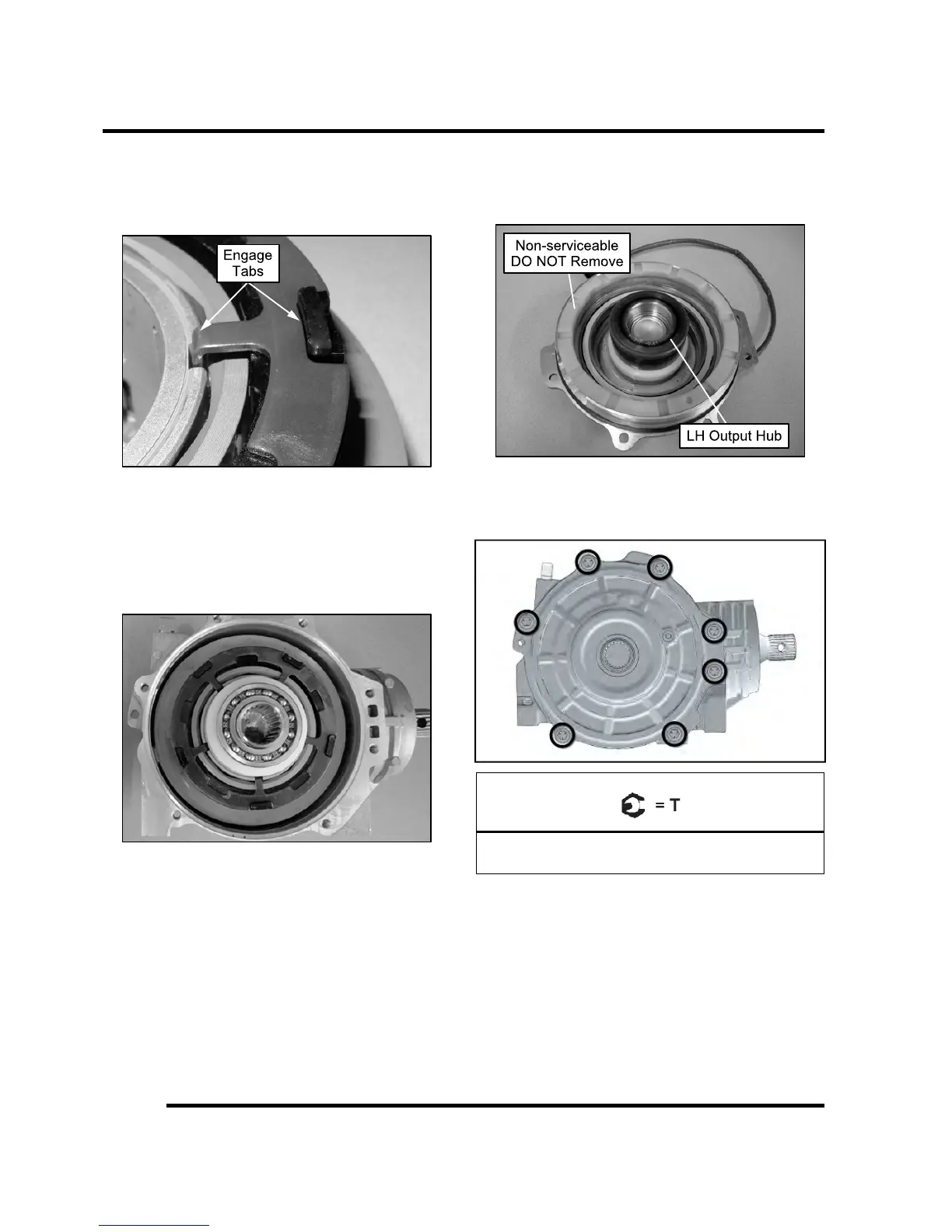

9. Install armature plate. Be sure all of the armature
plate tabs are fully engaged into the roll cage
assembly and that it is resting properly on the torsion
spring retainer.
NOTE: Verify armature plate tabs are in the roll
cage slots and that it rests properly on the spring
retainer.
10. Carefully install the ring gear and roll cage assembly
into the gearcase housing.
11. Install a new O-ring on the cover plate assembly.
NOTE: Be sure the square O-ring is placed flat
on the cover surface. If the O-ring is twisted fluid
leakage may occur.
12. Carefully install the LH output hub assembly into the
cover plate. Take care not to damage the new cover
plate seal while installing the output hub.
13. Install the output cover assembly onto the gearcase
housing. Install the seven cover plate screws and
torque to specification.
Cover Plate Screws:
11 ft-lbs (15 Nm)
FINAL DRIVE
