16. Torque the locking screw to specification.
Snorkel Locking Screw:
10 ft-lb (14 Nm)
Transmission Assembly
NOTE: The snorkel shaft and pinion shaft must
be installed prior to transmission assembly. The
snorkel shaft cannot be installed after
assembling the transmission.
17. Clean both transmission case halves thoroughly.
Inspect case half mating surfaces for damage.

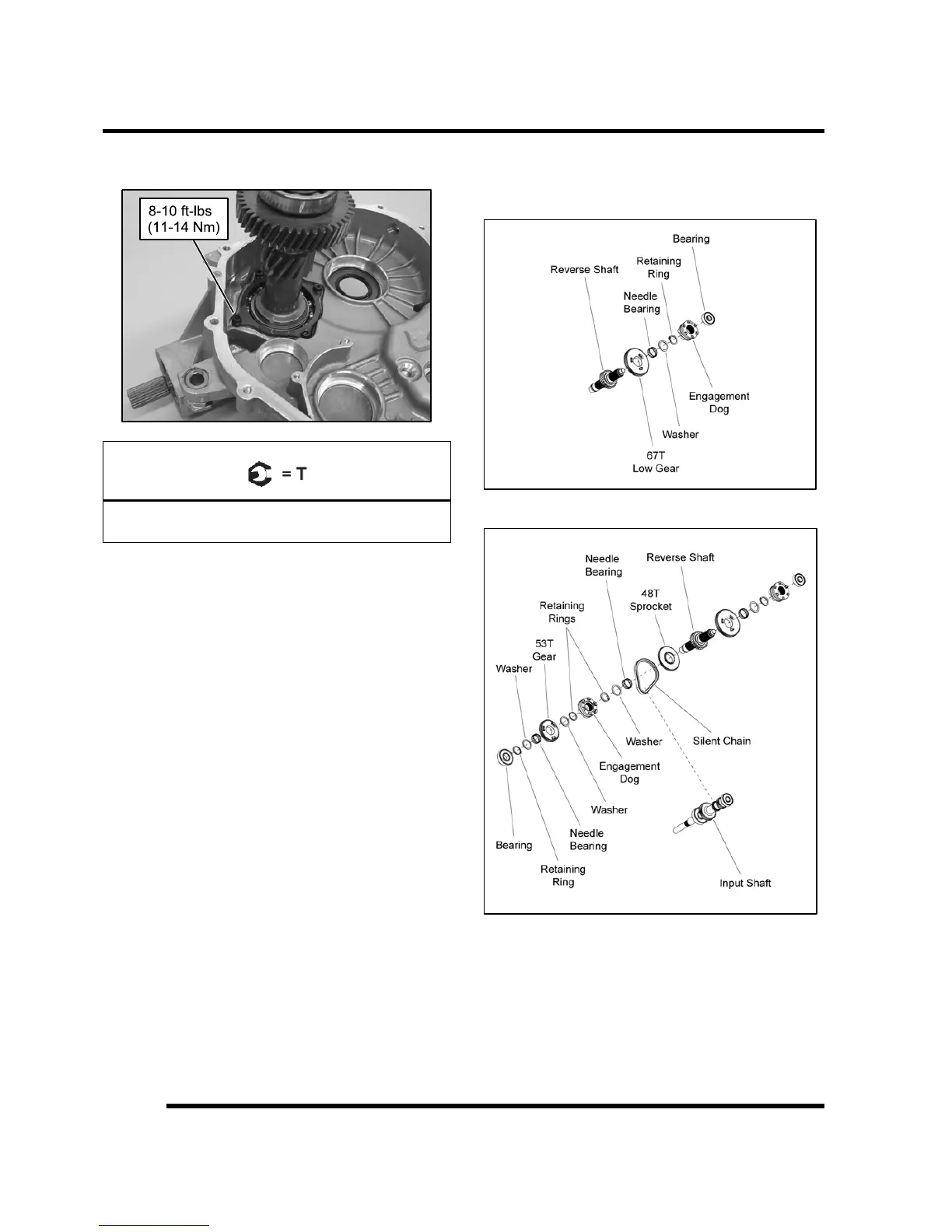

18. Assemble the reverse shaft assembly and input shaft
assembly if previously disassembled (see
illustrations).
TRANSMISSION
