8.6
TRANSMISSION
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

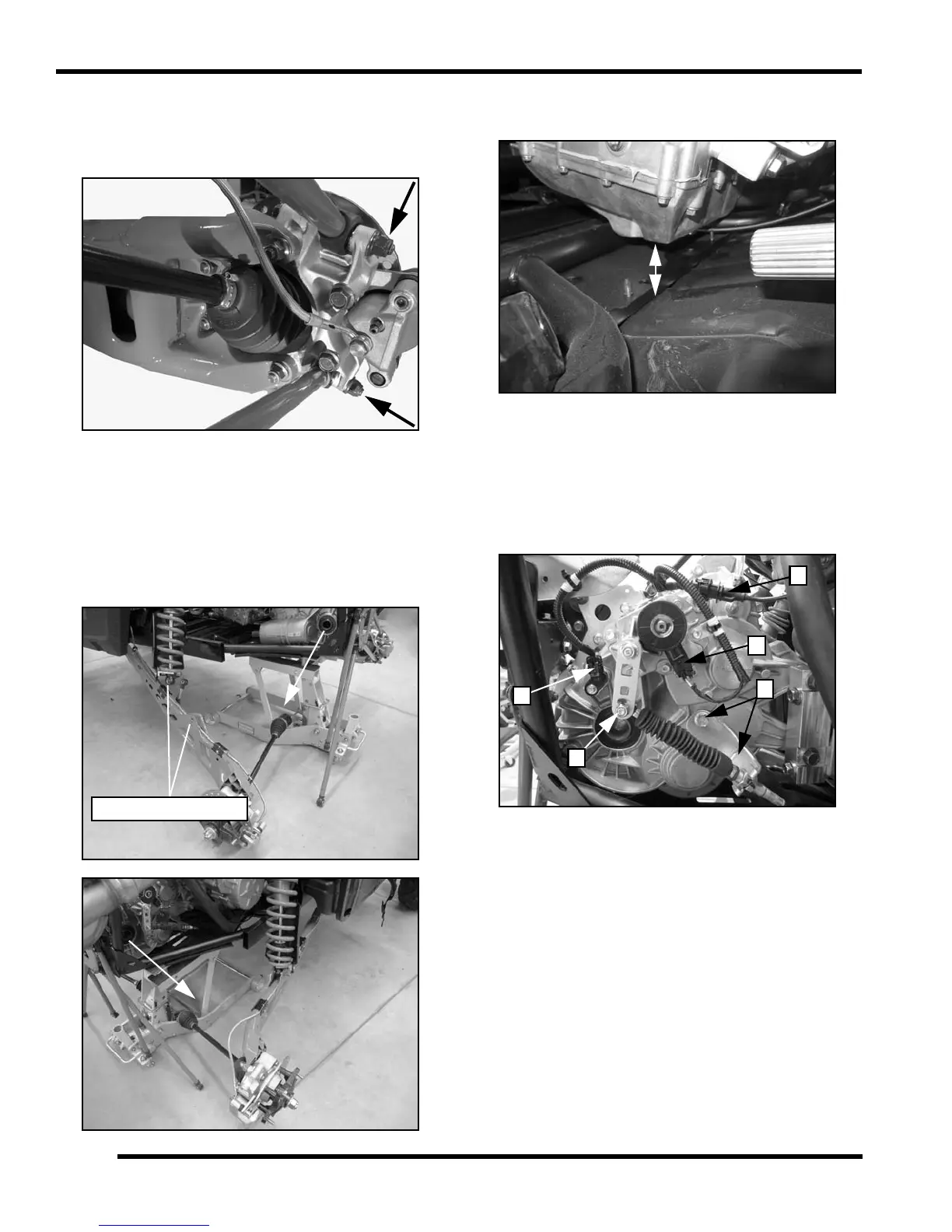

13. Remove the (4) bolts attaching the upper and lower
radius rods to the bearing carriers (left and right side).
Discard nuts and replace with new upon assembly.
Allow the radius rods swing downward.
14. Remove both lower shock bolts (left and right side)
while supporting the trailing arms from underneath.
Lift training arms up and swing trailing arms outward
to remove the drive shafts from the transmission.
15. Maneuver the drive shafts out of the vehicle frame.
Reinstall the lower shock bolts to hold the trailing arms
up during the rest of the removal procedure.
16. Place a spacer or support between the vehicle frame
and engine to hold the engine up in position.
17. Remove vent hose from transmission.
18. Remove the gear position switch connector (A),
speed sensor connector (B), crankshaft position
sensor connector (C), shift bracket bolts and shift
bracket (D), shift cable clevis pin and washer (E) from
the transmission.
