8.7
TRANSMISSION
8
9924096 - 2013 RANGER RZR XP 900 / RZR XP 4 900 Service Manual
© Copyright 2012 Polaris Sales Inc.

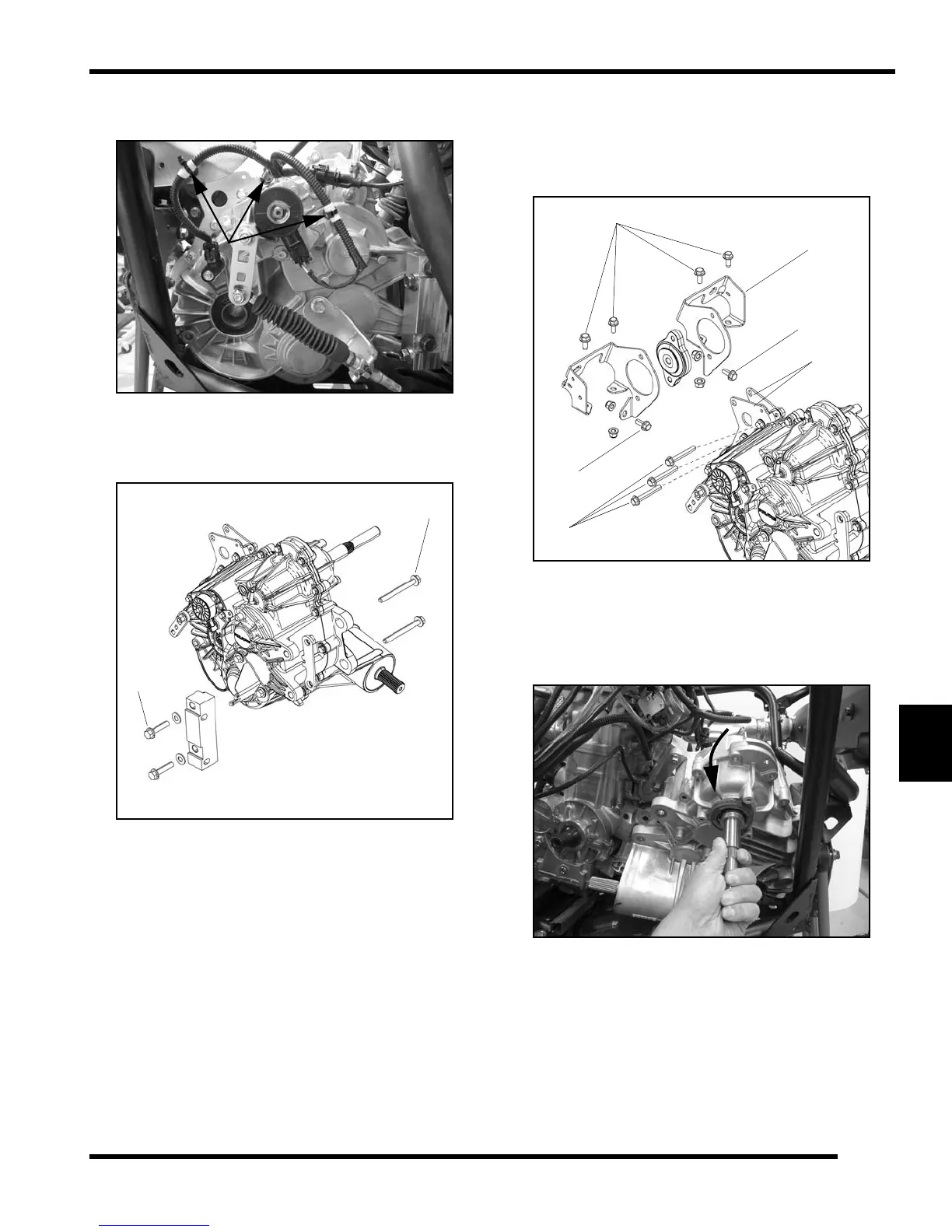

19. Remove the wire ties retaining harness to
transmission and mounts.
20. Using a 15mm socket, remove the (4) bolts from the
left side (F) and right side (G), securing the
transmission to the engine.
21. Remove the (2) rear exhaust springs securing the
muffler to the rear transmission mounting bracket.
22. Remove the (6) bolts (H) attaching the rear
transmission mount bracket assembly (J) to the
frame. Remove the (3) bolts (K) that attach the (2) rear
mounts (L) to the transmission. Remove the mount
assemblies from the vehicle.
23. Slide transmission towards the rear of the vehicle. Lift
and rotate the top of the transmission towards the left
side of the vehicle. With the help of an assistant,
remove transmission from the left rear wheel well
area.
To Next Page
