10 August, 2001 IMAGE FUSING AND PAPER EXIT
2-63
Detailed
Descriptions
2.10.3 FUSING ENTRANCE GUIDE SHIFT MECHANISM

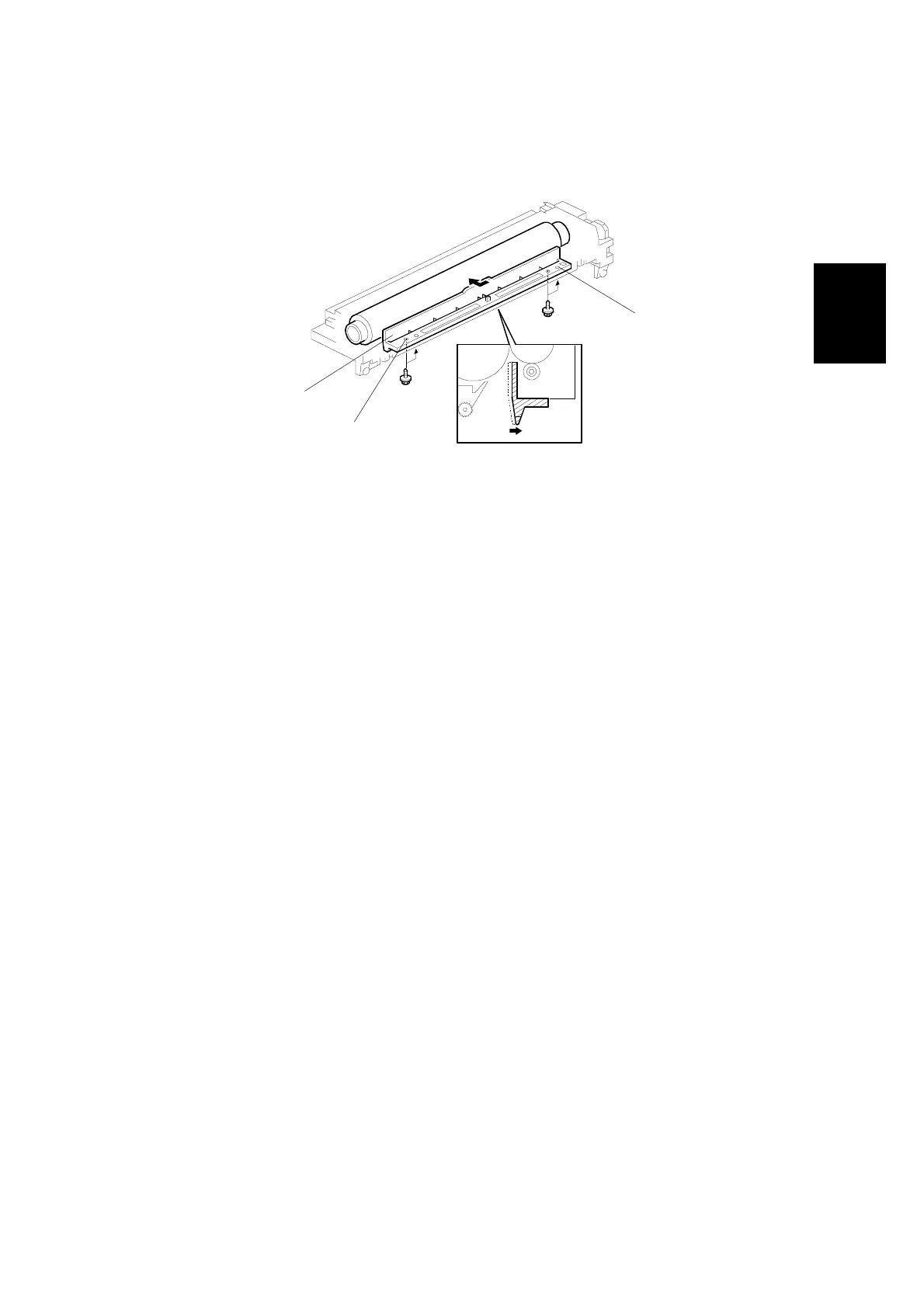

The entrance guide [A] is adjustable for paper thickness to prevent creasing. The
left screw holes [B] on each side are used as the default setting.
If creasing occurs frequently in the fusing unit, adjust the entrance guide to the
right, by securing it with the other holes [C]. This allows more direct access to the
gap between the hot roller and the pressure roller.
B027D566.WMF
[A]
[B]
[C]
