10 August, 2001 DUPLEX UNIT INSTALLATION
3-31
3.10.2 INSTALLATION PROCEDURE
!
CAUTION
Unplug the copier power cord before starting the following procedure.
NOTE: Before installing the duplex unit, the optional interchange unit (B416)
must be installed.

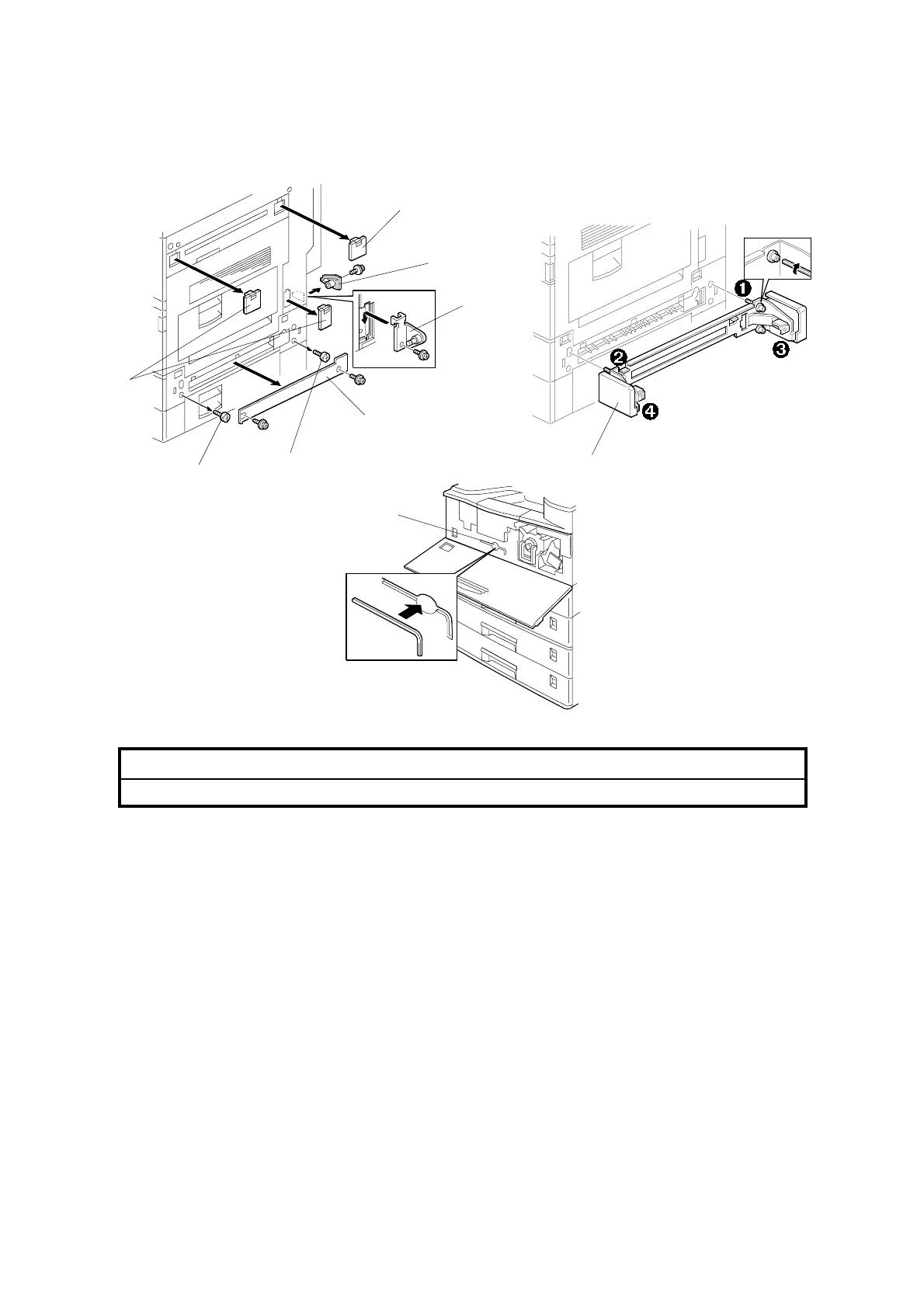

1. Remove all tapes.
2. Remove three covers [A].
3. Remove the connector cover [B] (1 screw), the entrance cover [C] (2 screws; if
the by-pass tray has not been installed), and two screws [D].
4. Install the bracket [E] (1 screw).
5. If the by-pass tray has already been installed, skip this step: Install the unit
holder [F] using the Allen key (4 set screws).
NOTE: 1) Make sure that the four screws are tightened in the proper order, as
shown above. Otherwise, the duplex unit will not properly lock in place.
2) After securing the unit, store the Allen key in the inner cover [G] for
future use.
B414I103.WMF
B414I501.WMF
B414I500.WMF
[A]
[B]
[C]
[E]
[A]
[D]
[F]
[D]
[G]
To Next Page
