BY-PASS FEED UNIT INSTALLATION 10 August, 2001
3-28
3.9 BY-PASS FEED UNIT INSTALLATION

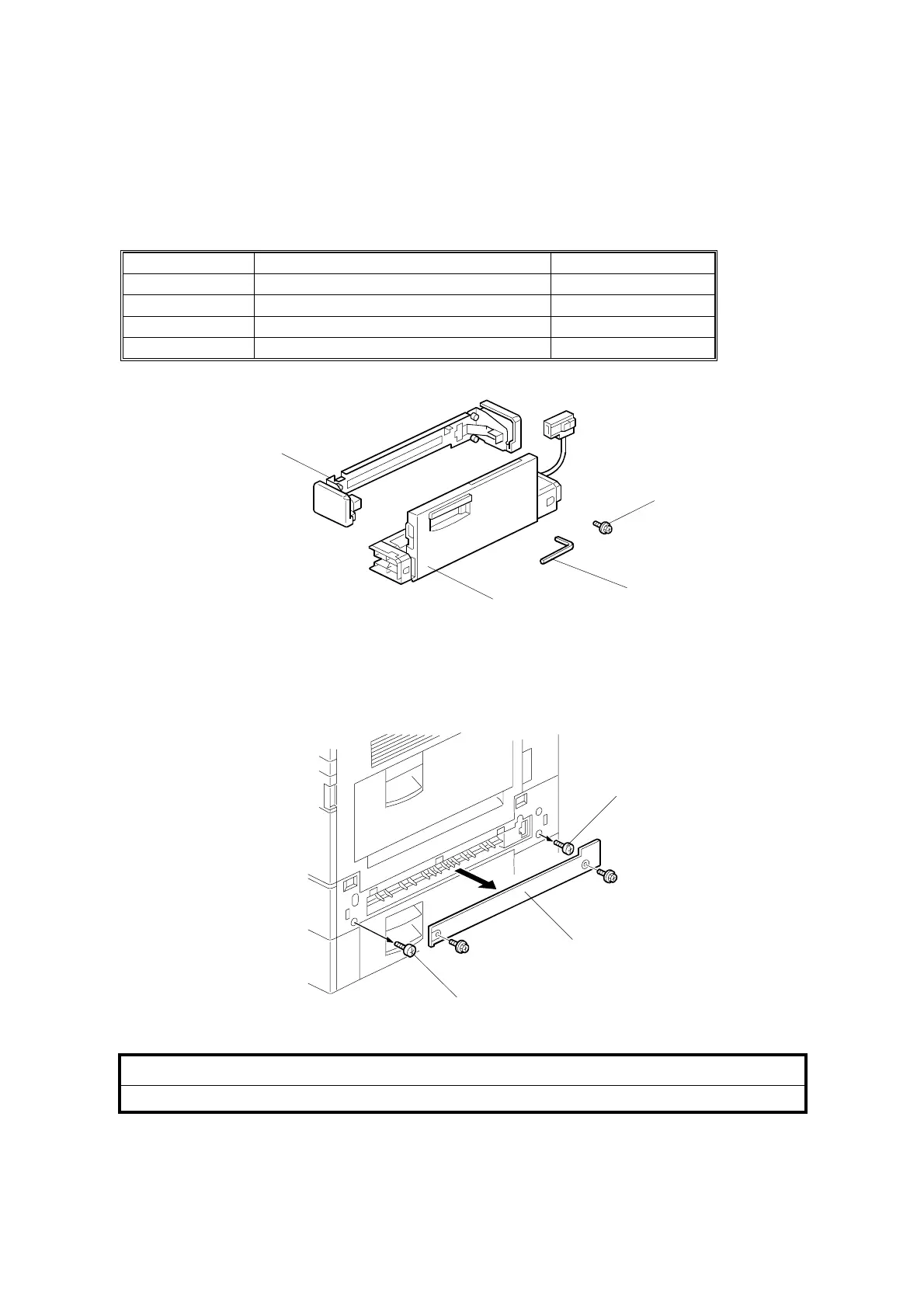

3.9.1 COMPONENTS CHECK
Check the quantity and condition of the components against the following list.
No. Description Q’ty
1 By-pass Tray Unit 1
2 Unit Holder 1
3 Tapping Screw 2
4 Allen Key 1
3.9.2 INSTALLATION PROCEDURE
!
CAUTION
Unplug the copier power cord before starting the following procedure.
1. Remove all tapes.
2. Remove the entrance cover [A] (2 screws) and two screws [B].
B415I101.WMF
B415I500.WMF
1
2
3
4
[A]
[B]
[B]
To Next Page
