10 August, 2001 IMAGE FUSING AND PAPER EXIT
2-61
Detailed
Descriptions
2.10 IMAGE FUSING AND PAPER EXIT
2.10.1 OVERVIEW

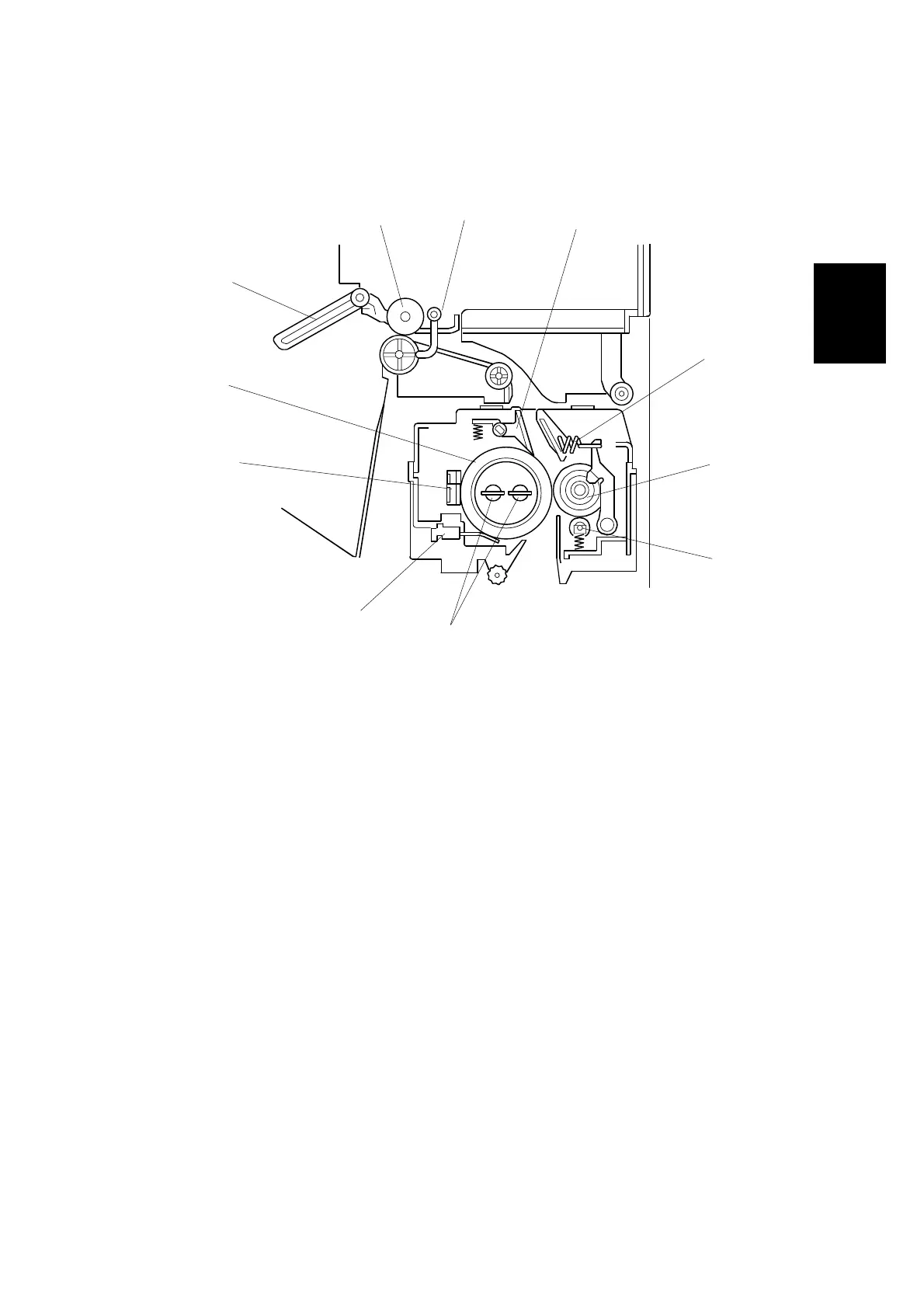

The fusing unit and paper exit area consist of the following parts.
1. Paper exit roller
2. Fusing exit sensor
3. Hot roller strippers
4. Pressure spring
5. Pressure roller
6. Cleaning roller
7. Two fusing lamps
8. Two thermistors
9. Four thermostats
10. Hot roller
11. Paper overflow sensor
B022D551.WMF
1
2
3
4
5
6
7
8
10
9
11
