INSTALLATION REQUIREMENTS 10 August, 2001
3-2

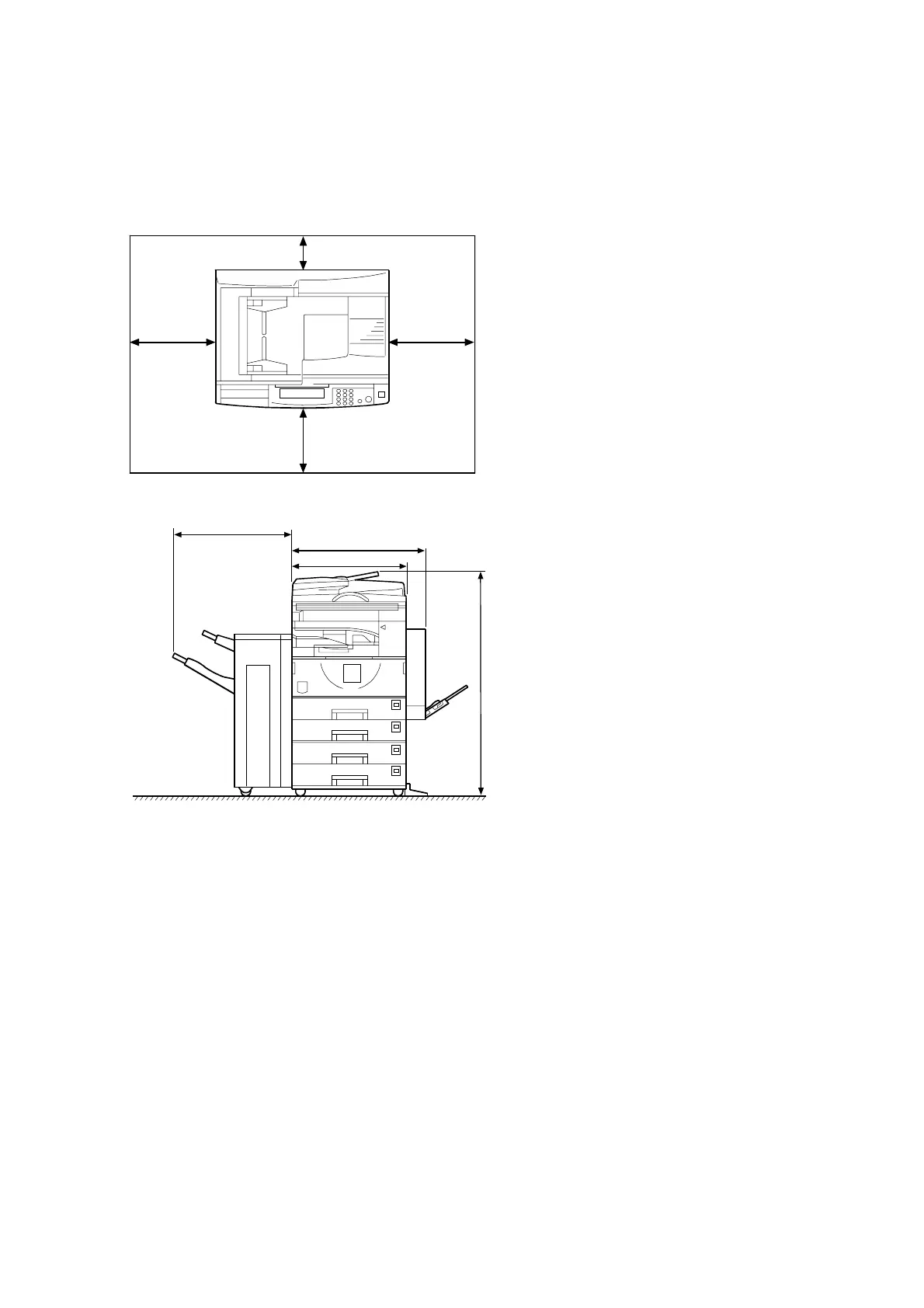

3.1.3 MINIMUM SPACE REQUIREMENTS
Place the copier near the power source, providing clearance as shown:
NOTE: The 750 mm recommended for the space at the front is only for pulling out
the paper tray. If an operator stands at the front of the copier, more space
is required.
B027I201.WMF
B027I202.WMF
C
A
B
D
G
F
E
A: In Front: Over 750 mm (29.6")
B: Left: Over 10 mm (4")
C: To Rear:Over 10 mm (4")
D: Right: Over 10 mm (4")
E: 620 mm (24.4")
F: 640 mm (25.2")
G: 550 mm (21.7")
H: 1137 mm (44.8")
H
