10 August, 2001 PAPER FEED
6-25
Replacement
Adjustment
6.6.3 PAPER TRAY LIFT MOTORS

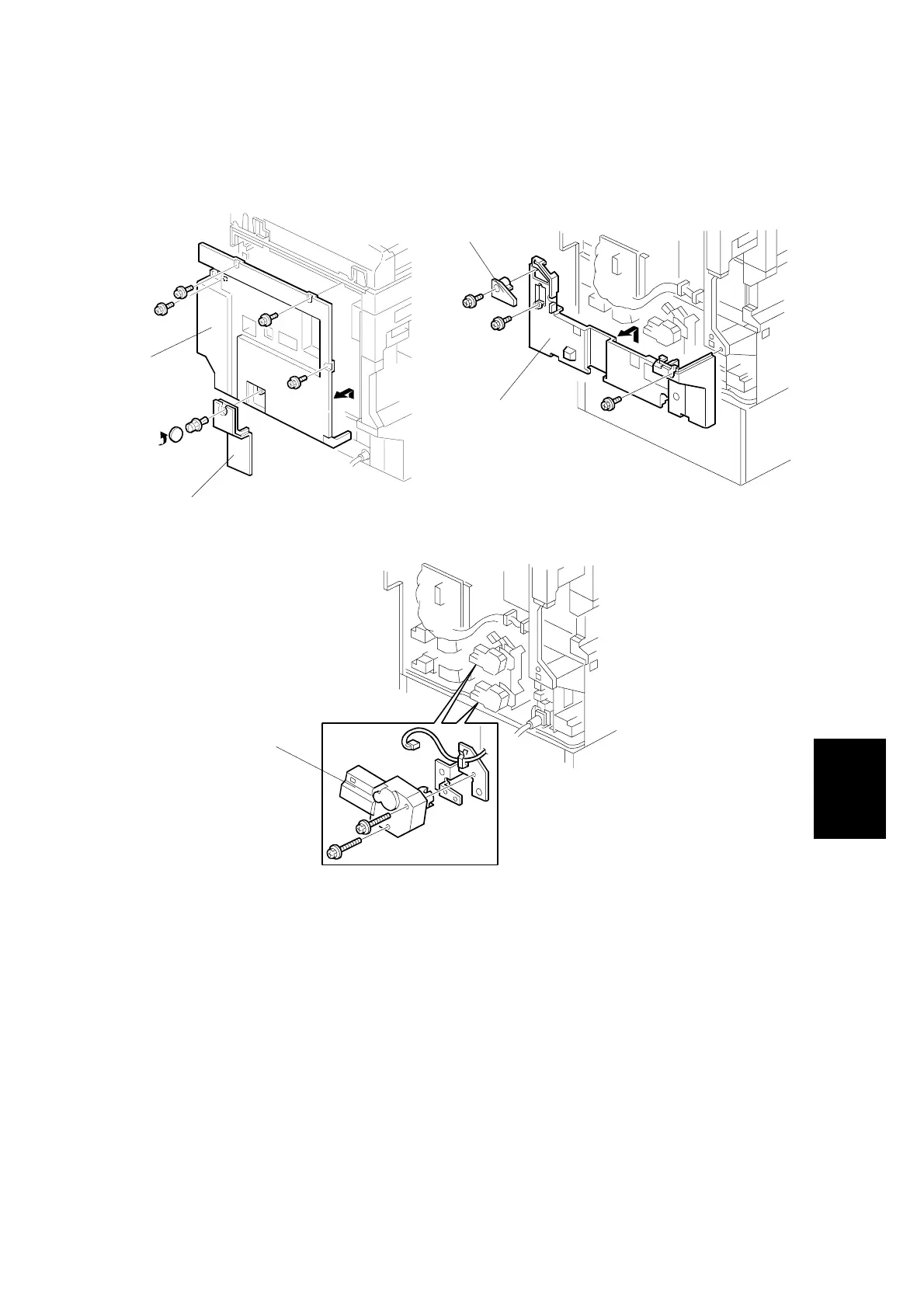

1. Remove the paper tray.
2. Remove the connector cover [A] (1 screw) and disconnect the cable.
3. Remove the rear cover [B] (4 screws).
4. Remove the duplex connector cover [C] (1 screw).
5. Remove the lower rear cover [D] (2 screws).
6. Replace the paper lift motors [E] (2 screws each, 1 connector each).
B027R705.WMF
B027R515.WMF
B027R707.WMF
[A]
[B]
[C]
[D]
[E]
