1.8.2 CONTROLLER

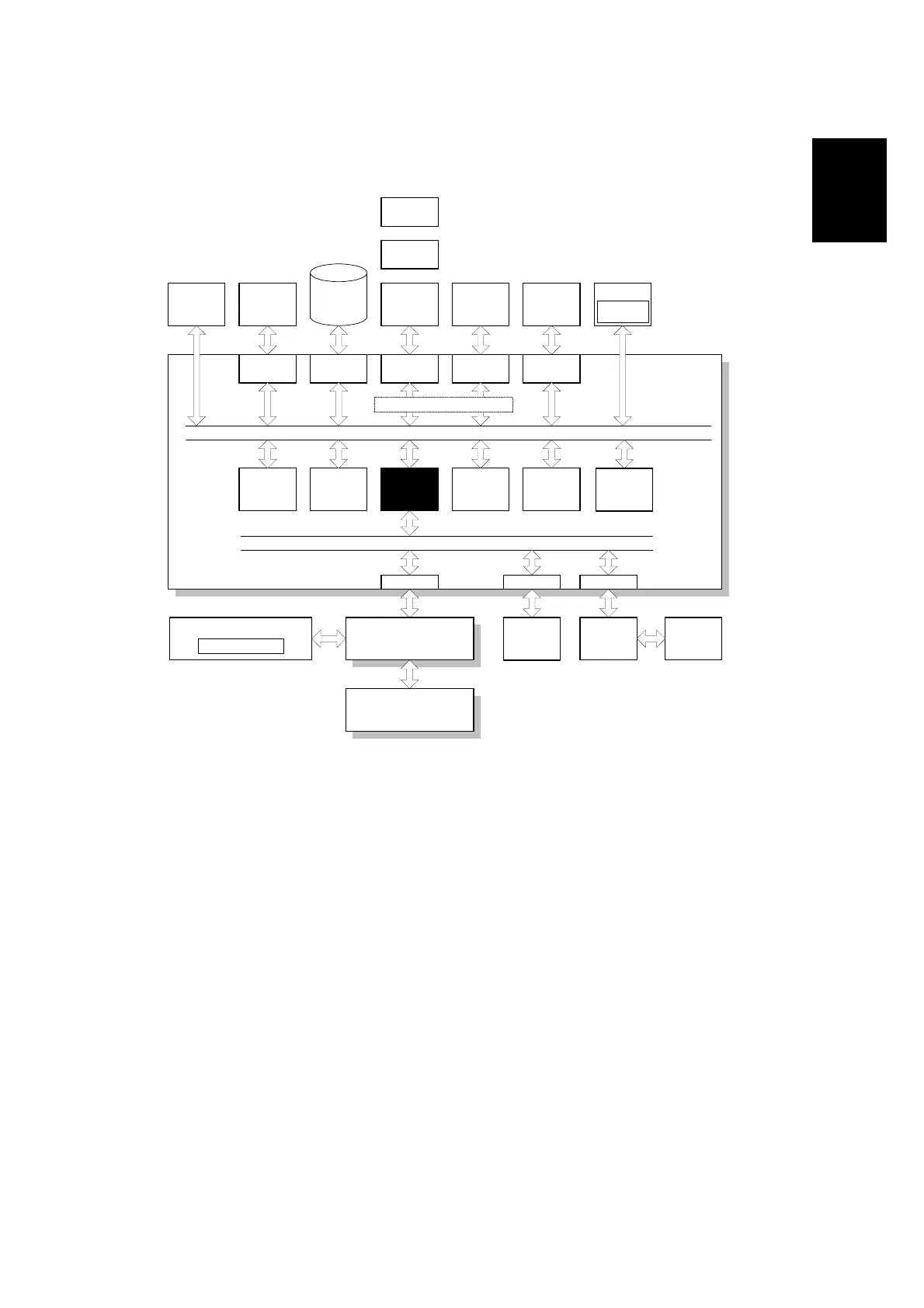

The controller employs GW (Ground Work) architecture, which allows the board to
control all applications, including copier, printer, scanner, and fax applications. To
add the optional printer, scanner, or fax applications, ROM DIMMs must be
installed on the controller. The fax option, however, requires FCU and NCU
installation also.
The following systems and application software can be downloaded from the
controller’s IC Card slot.
• Controller (System OS/Copier)
• Operation panel
• SBCU (engine control)
• Printer
• Scanner
• Fax
• PostScript 3
• NIB
• FCU
For details about how to download software from an IC card, see “Software
Download” in 4.3. Program Download.
IEEE1284 IC Card
Printer/
Scanner
(Fax)
PS3
RAM
(32/64 MB)
NIB
Printer
(Fax)
Fax
IC Card I/F IDE Slot 1 Slot 2
SDRAM
DIMM
System
Flash ROM
(8 MB)
Resident
SDRAM
(32 MB)
SIMAC
CPU
NVRAM
(32 kB)
PCI
or
or
OPTION OPTION OPTION
OPTION
Flash ROM
(4 MB)
2.5" HDD
Flash ROM DIMM (4/8 MB)
CONTROLLER
NVRAM
(32 kB)
OPTION
PCIPCI
IPU
FCU NCU
SBCU
Operation Panel
Flash ROM (4 MB)
OPTION
IEEE1394
OPTION
PCI BUS
Local BUS
OPTION
OPTION
B027V503.WMF
