10 August, 2001 SCANNER UNIT
6-7
Replacement
Adjustment
6.1.7 SCANNER WIRES
1. Remove the exposure glass, operation panel, and all scanner exterior covers.
(☛ 6.1.1 and 6.1.2)
2. Remove the left upper stay. (☛ 6.1.5)
3. Remove the front frame. (☛ 6.1.5)
4. Remove the rear bracket. (☛ 6.1.5)
5. Remove the rear frame. (☛ 6.1.5)
6. Remove the lens cover. (☛ 6.1.3)
7. Remove the lens block assembly. (☛ 6.1.3)
8. Remove the front and rear scanner wire pins [A]. Then, remove the 1st
scanner.

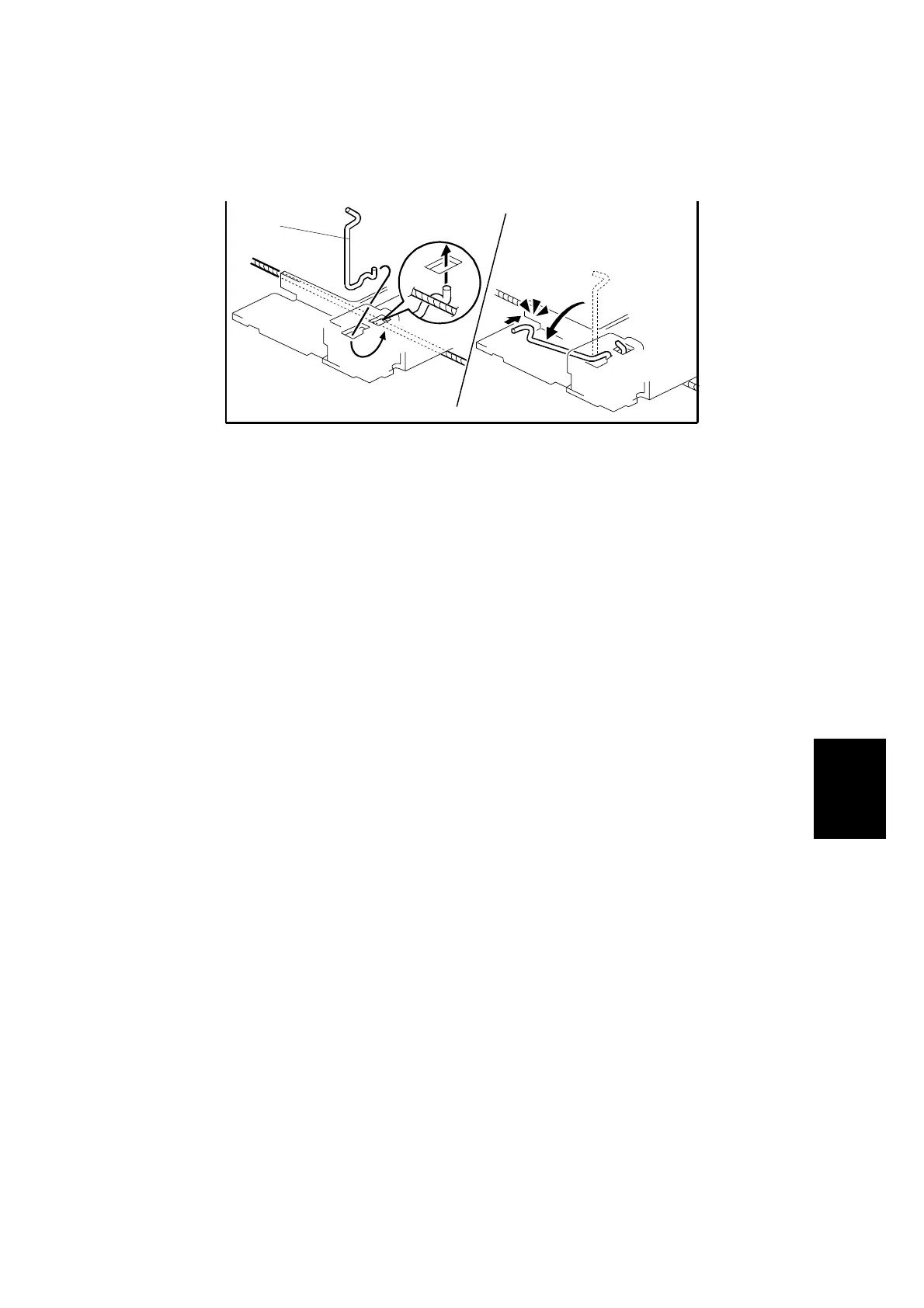

B027R012.WMF
[A]
To Next Page
