10 August, 2001 1-BIN TRAY UNIT INSTALLATION
3-23

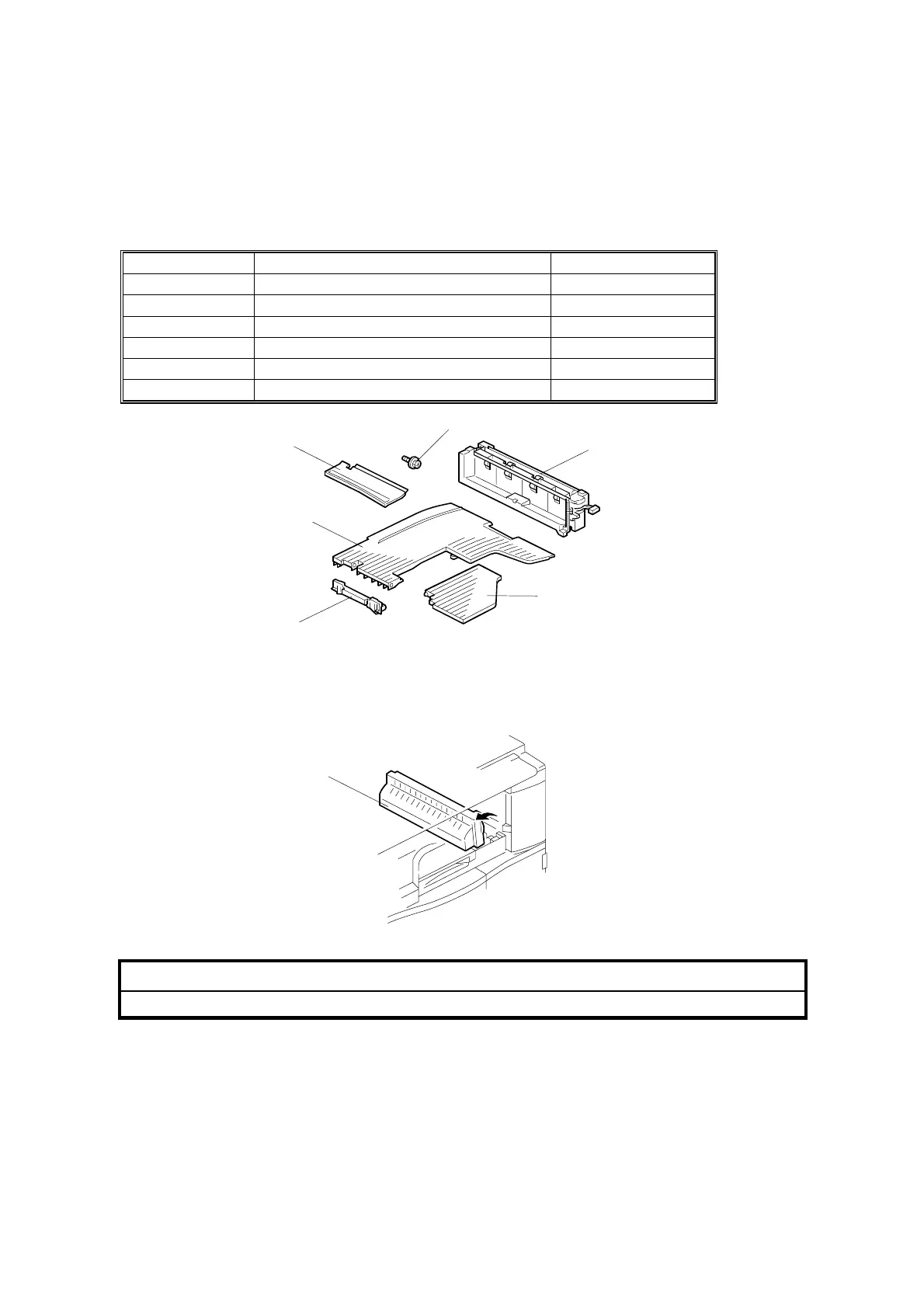

3.7 1-BIN TRAY UNIT INSTALLATION
3.7.1 COMPONENT CHECK
Check the quantity and condition of the components against the following list.
No. Description Q’ty
1 1-Bin Tray Unit 1
2Tray 1
3 Sub-Tray 1
4Tray Guide 1
5 Paper Guide 1
6 Tapping Screw M3x8 1
3.7.2 INSTALLATION PROCEDURE
!
CAUTION
Unplug the copier power cord before starting the following procedure.
NOTE: Before installing this 1-bin tray unit, the optional interchange unit (B416)
must be installed.
1. Remove all tapes.
2. If the optional bridge unit has been installed, open the right jam removal cover
[A] of the bridge unit.
If the optional bridge unit is not installed, skip this step.
B413I101.WMF
B413I501.WMF
1
2
3
4
5
6
[A]
To Next Page
