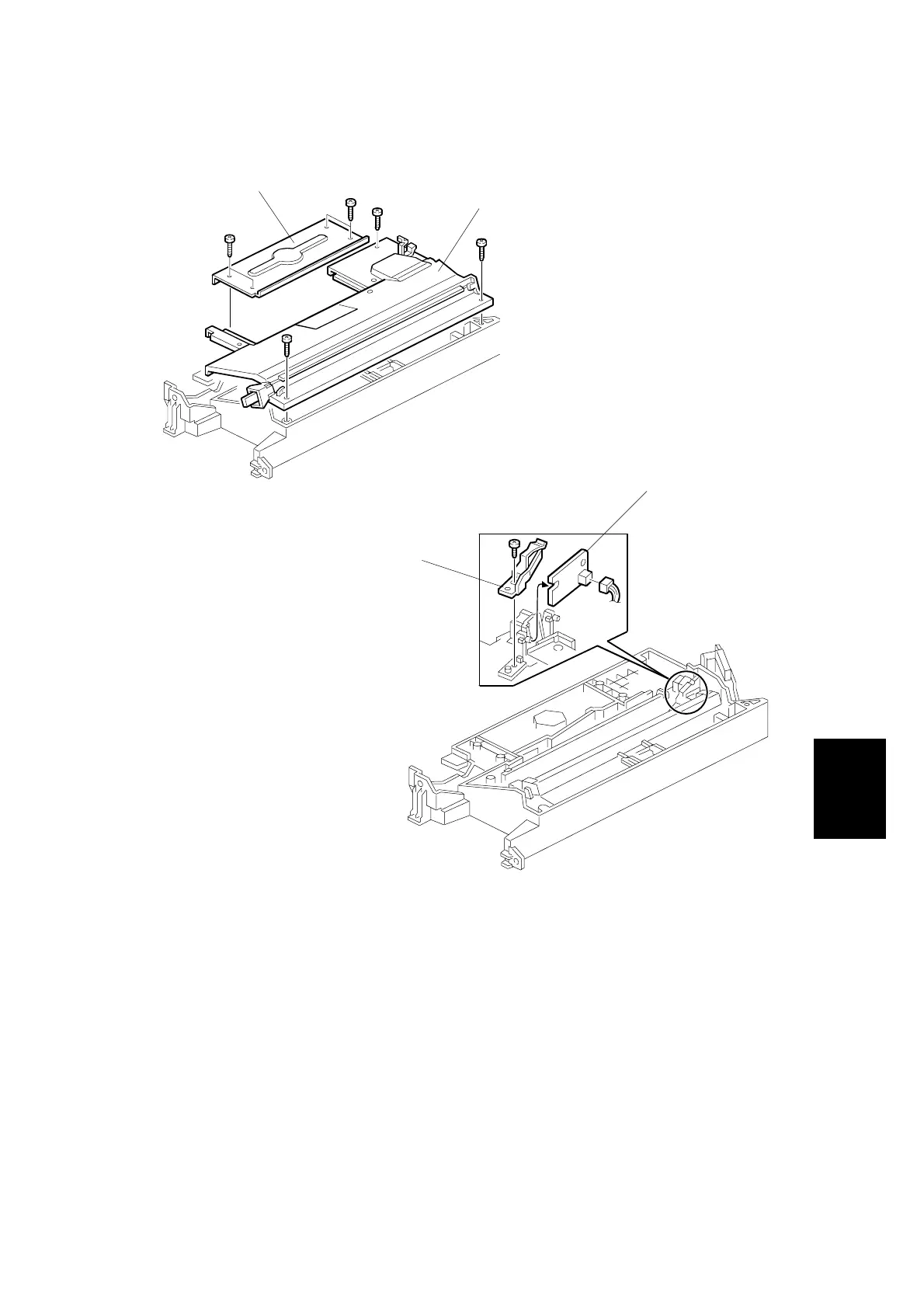

6.2.5 LASER SYNCHRONIZATION DETECTOR
1. Remove the laser unit (☛ 6.2.2).
2. Remove the heat sink [A] (4 screws).
3. Remove the laser unit cover [B] (3 screws).
4. Remove the bracket [C] (1 screw).
5. Replace the laser synchronization detector [D] (1 connector).
B027R106.WMF
B027R107.WMF
[A]
[C]
[D]
[B]
