SCANNER UNIT 10 August, 2001
6-4
6.1.4 ORIGINAL SIZE SENSORS
1. Remove the exposure glass. (☛ 6.1.1)
2. Remove the lens cover. (☛ 6.1.3)
3. Remove the original width sensor [A] (1 screw, 1 connector).
4. Remove the lens block. (☛ 6.1.3)
5. Remove the original length sensors [B] (1 screw, 1 connector each).

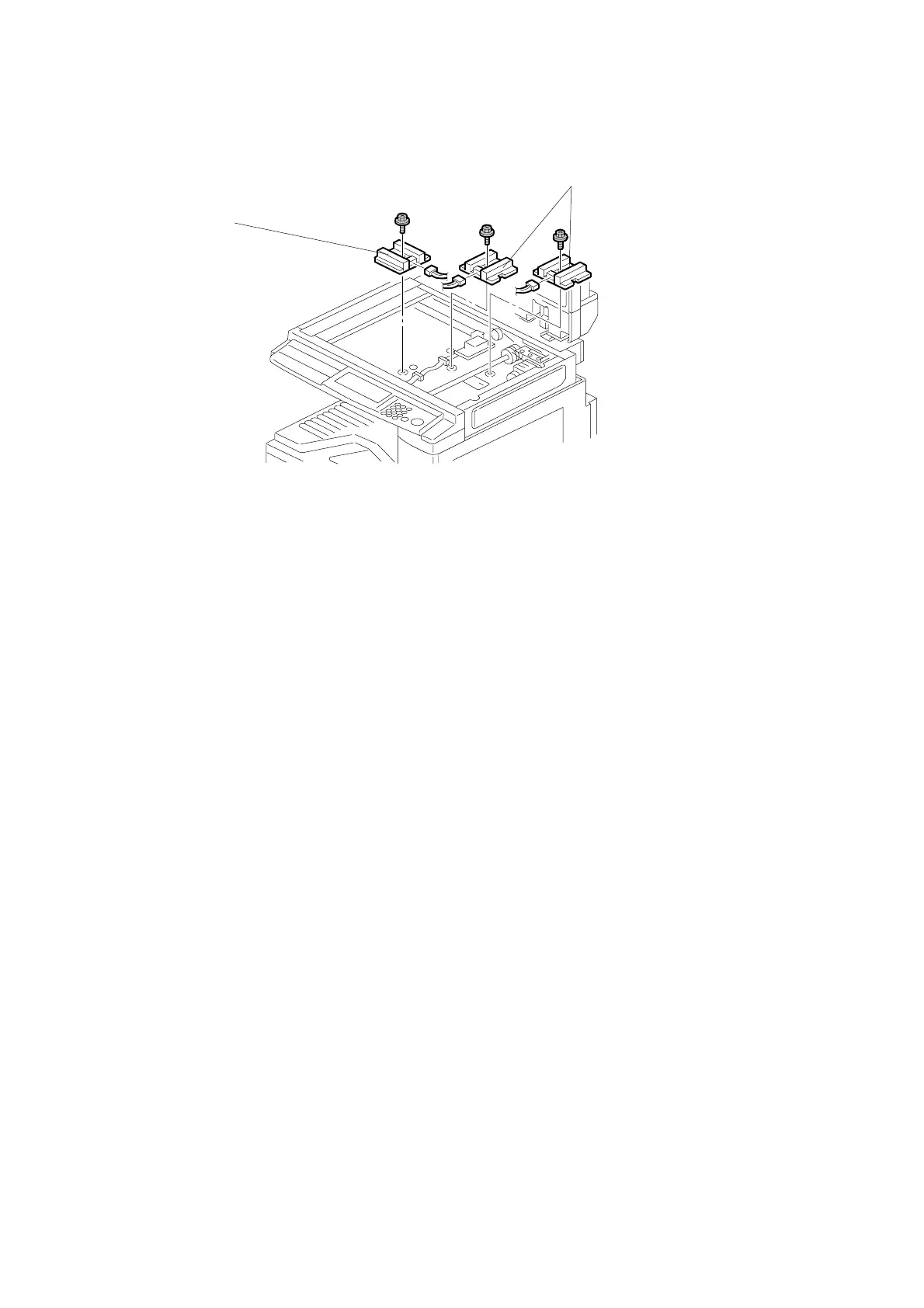

B027R054.WMF
[A]
[B]
