10 August, 2001 PAPER FEED
2-45
Detailed
Descriptions
2.8 PAPER FEED
2.8.1 OVERVIEW
There are two paper trays, each of which can hold 500 sheets.
The paper tray feed stations use a friction pad system.
The two relay sensors are used for paper jam detection.

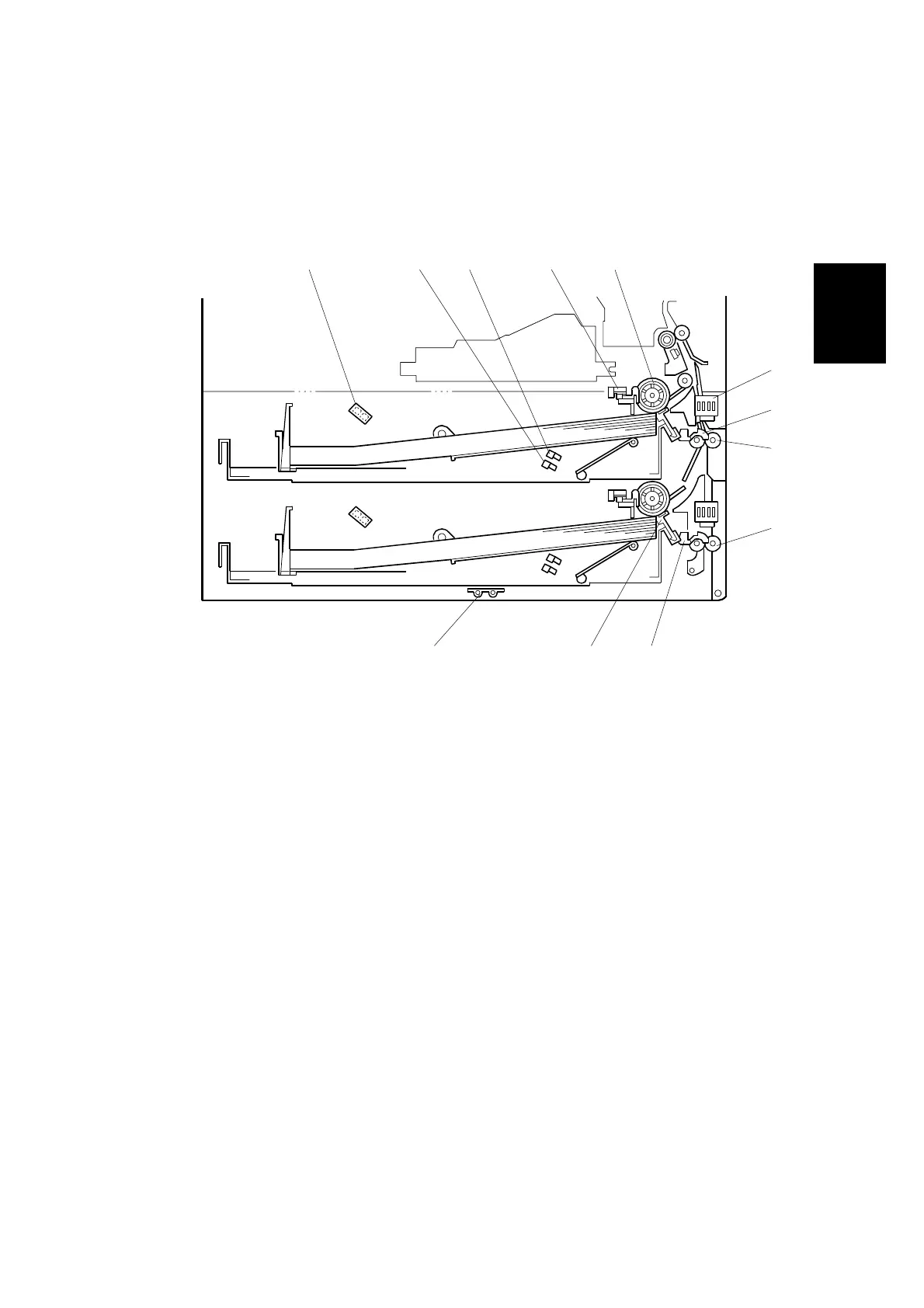

The components of the paper feed station are as follows.
1. Paper Lift Sensor
2. Paper Height –1 Sensor
3. Paper Height –2 Sensor
4. Paper End Sensor
5. Paper Feed Roller
6. Paper Size Sensor
7. Upper Relay Sensor
8. Upper Relay Roller
9. Lower Relay Roller
10. Lower Relay Sensor
11. Friction Pad
12. Tray Heater (Option)
B027D501.WMF
1 2 3 4 5
6
8
9
101112
7
To Next Page
