PLATEN COVER INSTALLATION 10 August, 2001
3-44
3.14.2 HDD (B420)
!
CAUTION
Unplug the main machine power cord before starting the following
procedure.

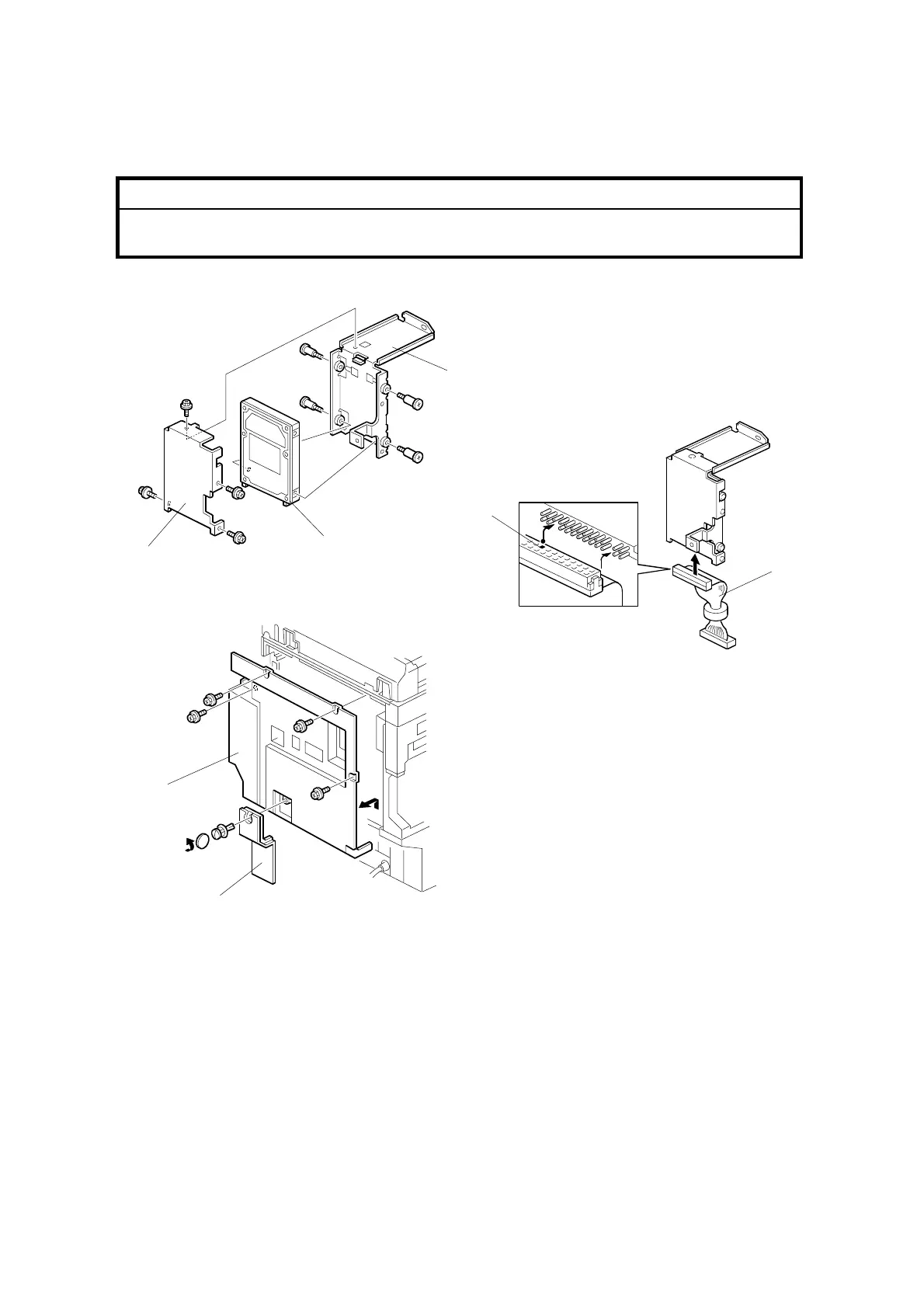

1. Attach the HDD [A] to the HDD bracket [B] (4 stepped screws).
NOTE: The PCB side of the HDD must face the HDD bracket.
2. Attach the shield plate [C] to the HDD (4 – M3x3 screws).
3. Connect the cable [D] to the HDD.
NOTE: The marked location [E] which is not a pinhole must face the HDD.
4. Remove the connector cover [F] and rear cover [G] (4 screws).
B453I102.WMF
B453I103.WMF
B453I101.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
To Next Page
