SCANNER UNIT 10 August, 2001
6-6
6.1.6 SCANNER MOTOR/LAMP STABILIZER
1. Remove the connector cover [A], disconnect the cable, and remove the rear
cover [B].
2. Replace the scanner motor [C] (3 screws, 1 spring, 1 connector).
3. Replace the lamp stabilizer [D] (2 connectors).
4. Reassemble the machine and do the scanner and printer copy adjustments. (☛
6.8)

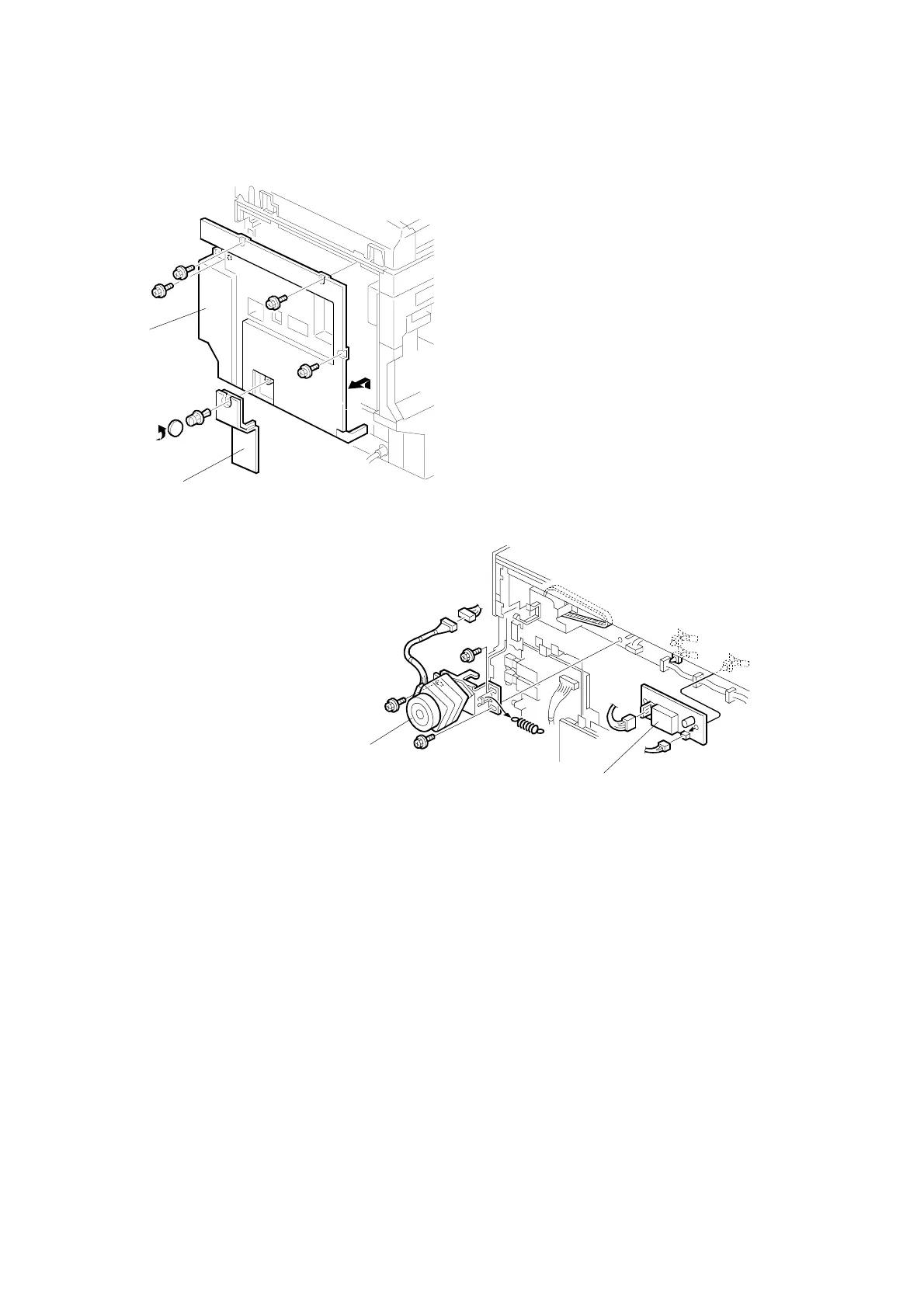

B027R515.WMF
B022R007.WMF
[A]
[B]
[C]
[D]
