10 August, 2001 SCANNER UNIT
6-3
Replacement
Adjustment

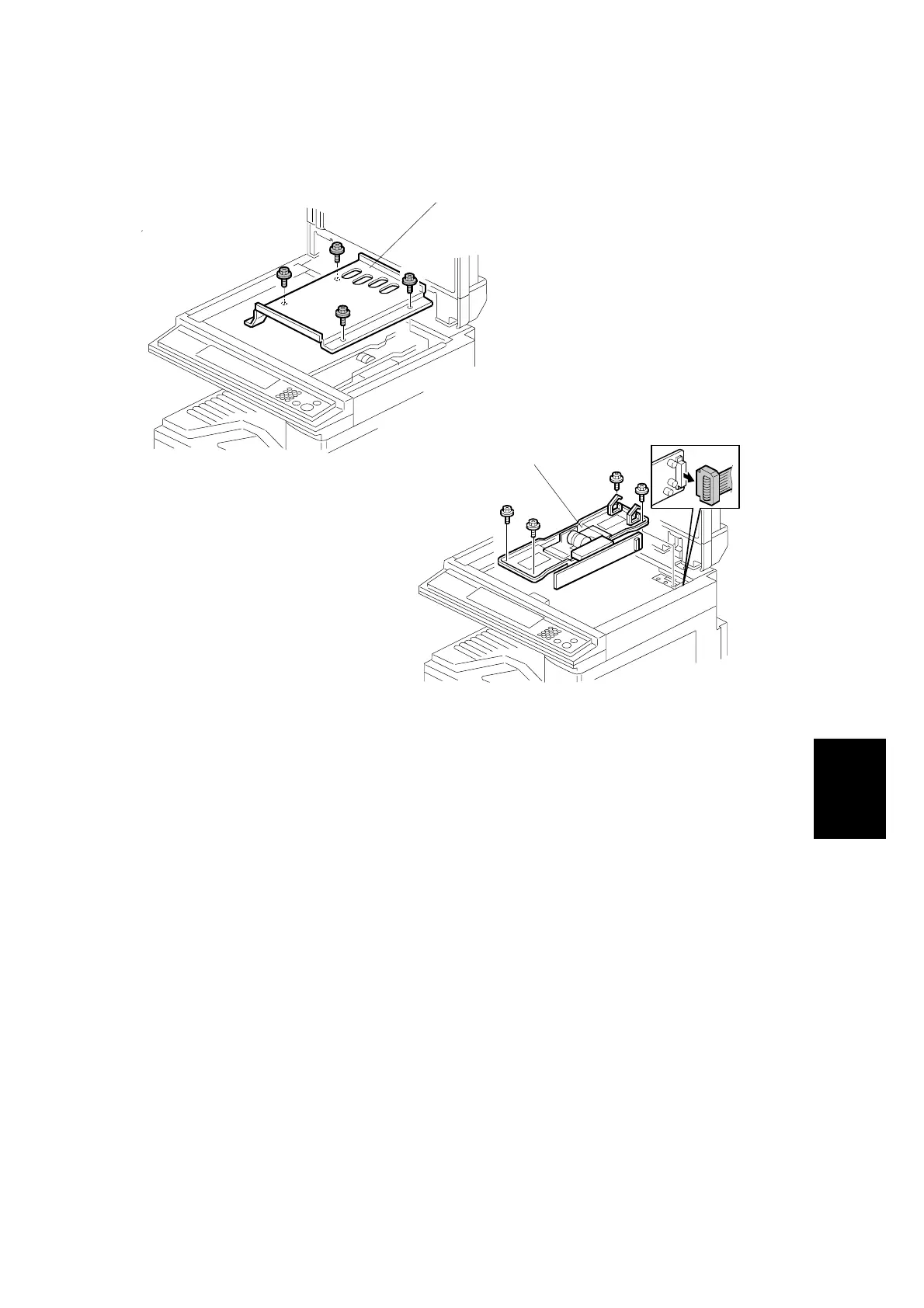

6.1.3 LENS BLOCK ASSEMBLY
1. Remove the exposure glass. (☛ 6.1.2)
2. Remove the lens cover [A] (4 screws).
3. Replace the lens block assembly [B] (4 screws, 1 connector, 2 clamps).
NOTE: Do not remove the screws which are locked with white paint.
4. Reassemble the machine and do the scanner and printer copy adjustments. (☛
6.8)
B022R003.WMF
B022R006.WMF
[A]
[B]
