10 August, 2001 LASER UNIT
6-11
Replacement
Adjustment

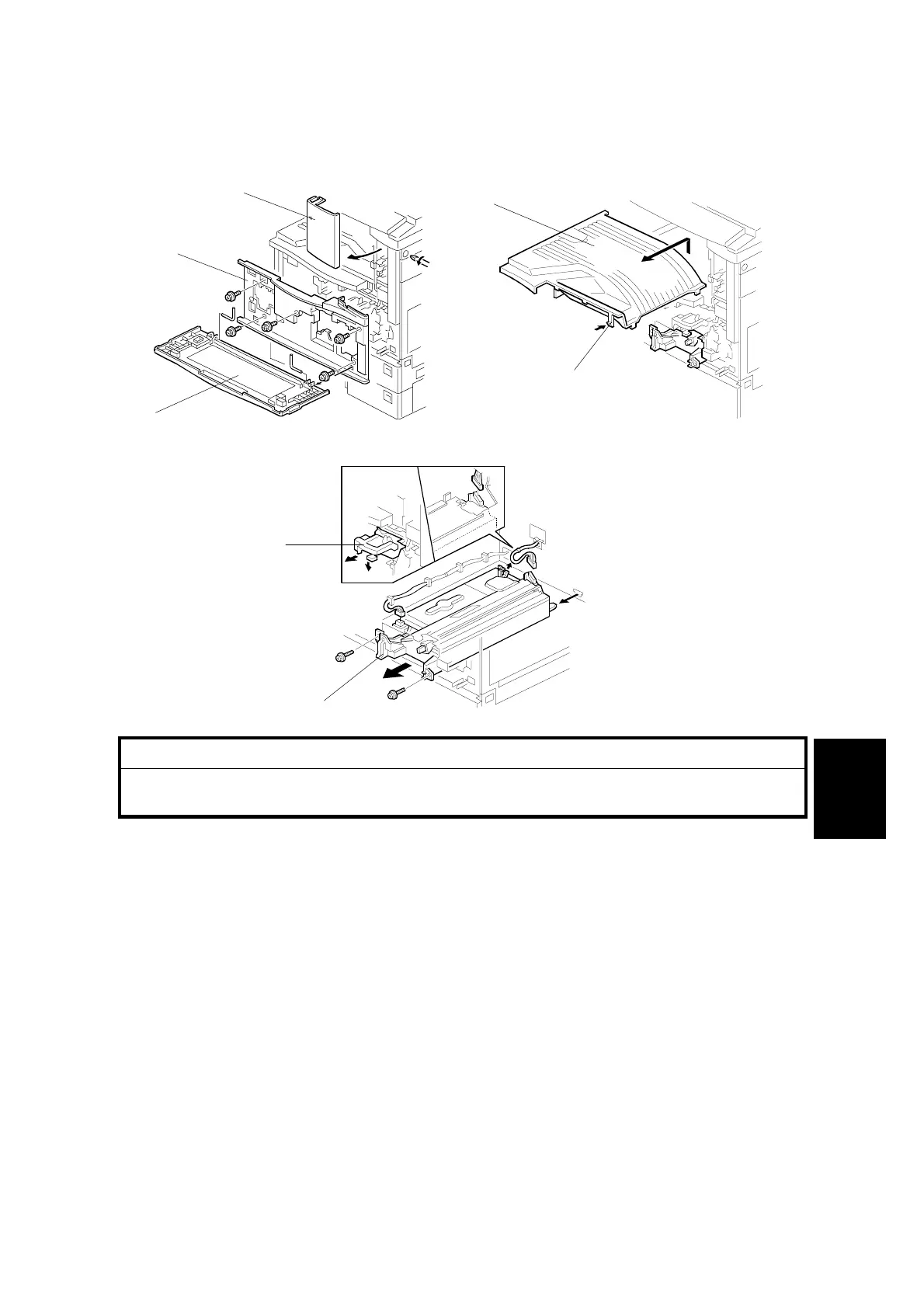

6.2.2 LASER UNIT
!
WARNING
Turn off the main power switch and unplug the machine before attempting
this procedure. Laser beam can seriously damage your eyes.
1. Remove the optional finisher/bridge unit, and either the tray for the optional 1-
bin tray unit or optional shift tray, if these units have been installed.
2. Remove the upper front cover [A] (1 screw, 1 hook).
3. Remove the front cover [B] (2 pins).
4. Remove the inner cover [C] (5 screws).
5. Remove the copy tray [D] (1 hook [E]).
6. Remove the toner bottle holder [F].
7. Remove the laser unit [G] (2 screws, 2 connectors).
8. After reassembling the machine, do the scanner and printer copy adjustments.
(☛ 6.8)
B027R101.WMF
B027R102.WMF
B027R103.WMF
[A]
[B]
[D]
[C]
[E]
[F]
[G]
