KEY COUNTER INSTALLATION 10 August, 2001
3-46
3.15 KEY COUNTER INSTALLATION
!
CAUTION
Unplug the machine power cord before starting the following procedure.

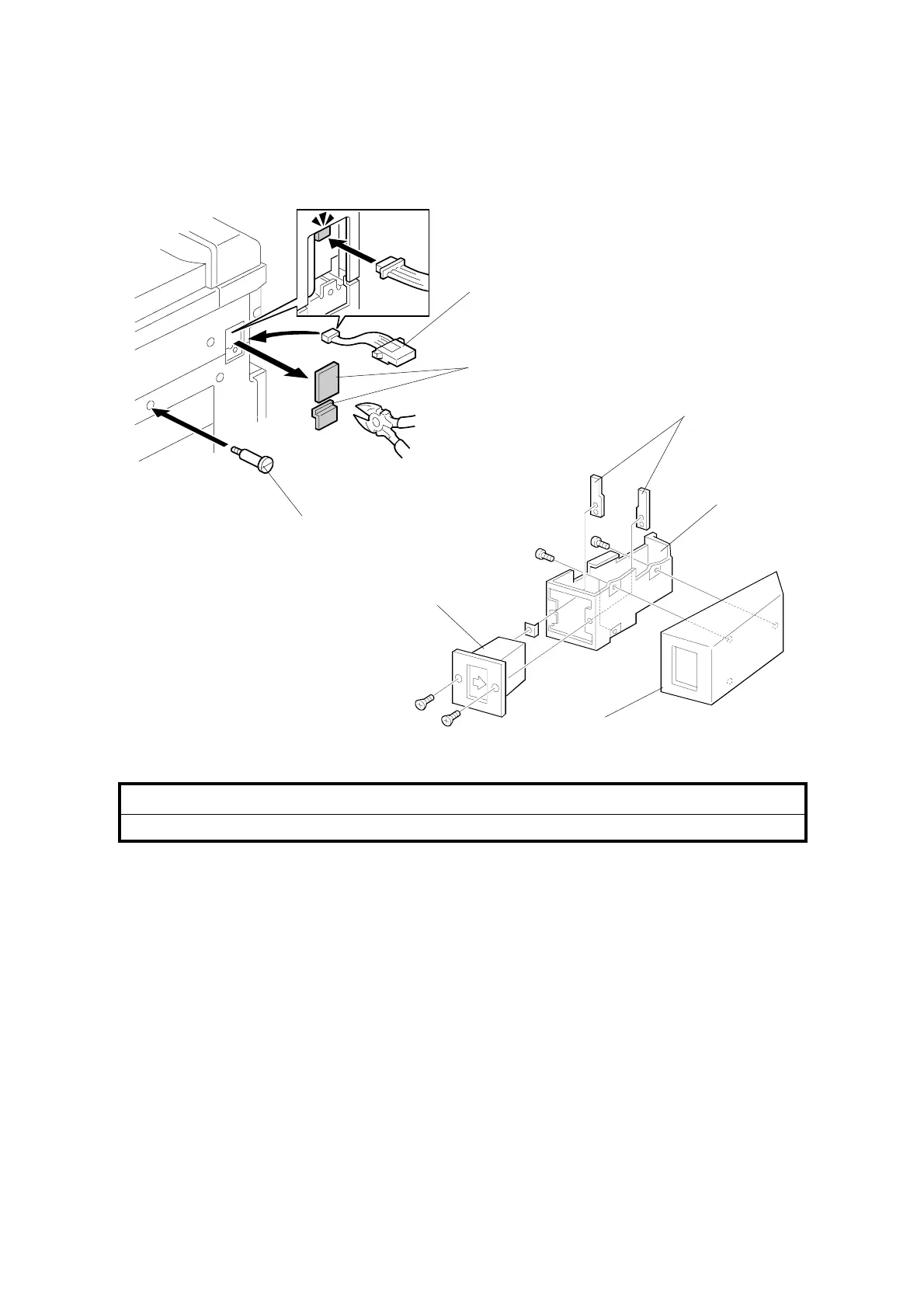

1. Remove two caps [A].
2. Connect the key counter cable [B].
3. Install the stepped screw [C].
4. Hold the key counter plate nuts [D] on the inside of the key counter bracket [E]
and insert the key counter holder [F].
5. Secure the key counter holder to the bracket (2 screws).
6. Install the key counter cover [G] (2 screws).
B027I231.WMF
B027I500.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
To Next Page
