10 August, 2001 PAPER FEED
2-55
Detailed
Descriptions
2.8.9 SPECIAL PAPER SETTING
Only the 2nd tray can feed special paper such as thick paper or envelopes. The
special paper type can be selected either by using the UP mode or with the
following operation.

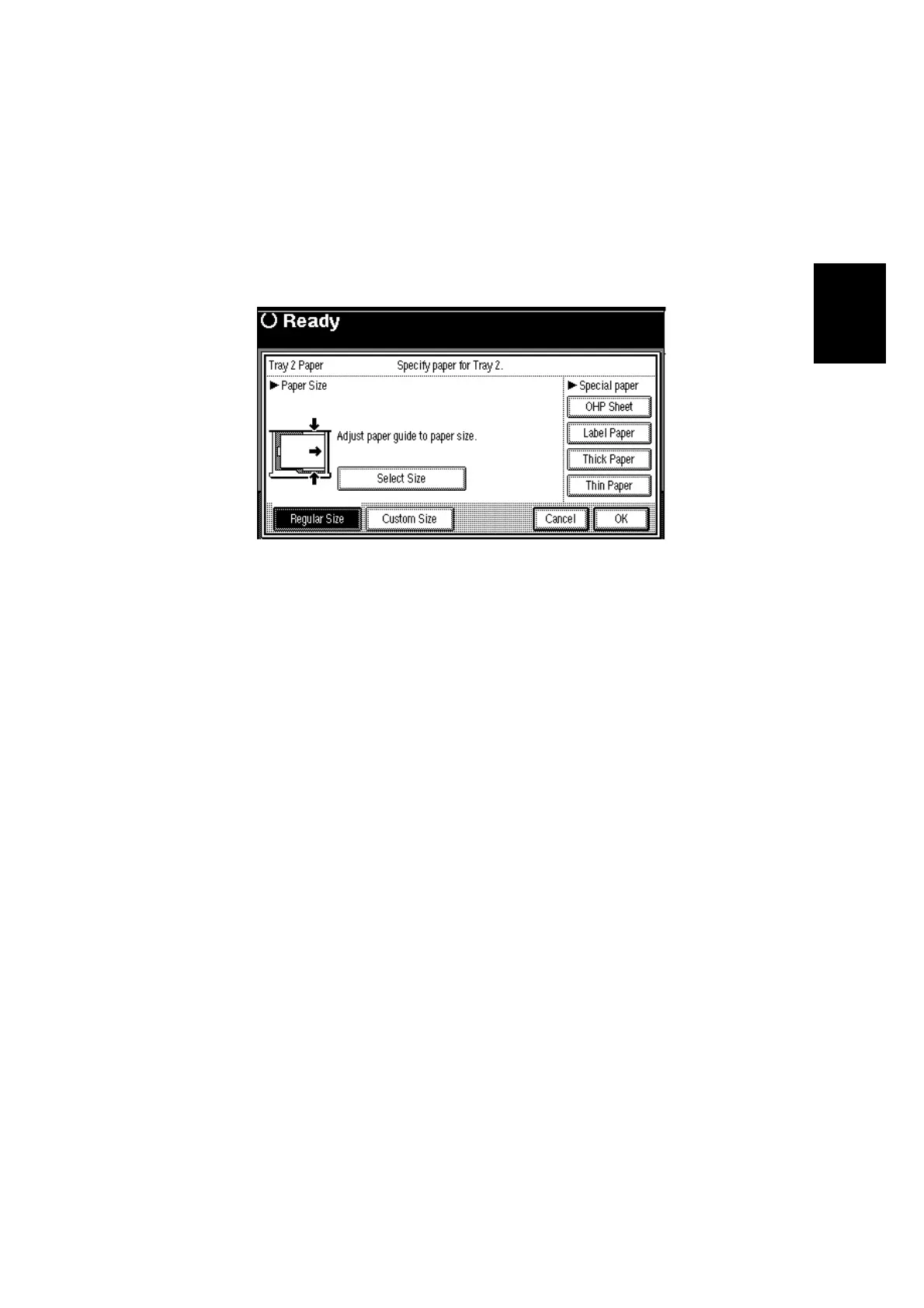

• Select the 2nd tray then press the ! key.
After selecting the special paper type, the fusing temperature and transfer roller
current will be changed as follows.
1. Fusing temperature (when thick paper is selected):
Current operation temperature + 15 °C
2. Transfer roller current:
A3 width (11”): 14 µA
B4 width (10”): 15 µA
A4 width (8.5”): 17 µA
A5 width (5.5”): 20 µA
Note that for the by-pass tray, the fusing and transfer conditions for special paper
are also applied if the user uses thick (non-standard) mode.
B027D590.WMF
