IMAGE FUSING AND PAPER EXIT 10 August, 2001
2-64
2.10.4 PRESSURE ROLLER

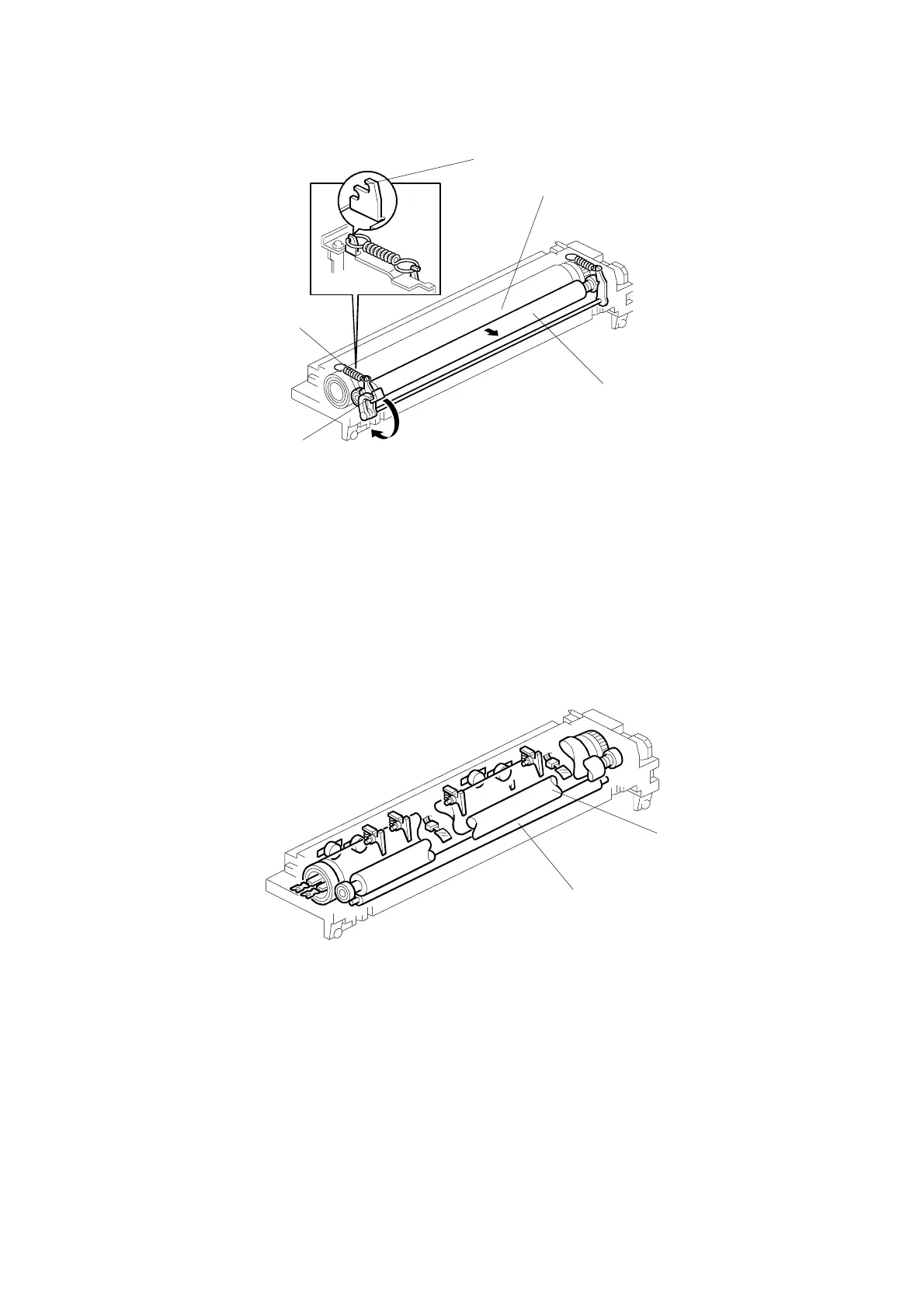

The pressure springs [A] constantly apply pressure between the hot roller [B] and
the pressure roller [C].
Applied pressure can be changed by adjusting the position of the pressure springs.
The spring is positioned at the top [D] as the default setting.
The user moves lever [E] when using thicker copy paper or envelopes, to reduce
the pressure between the hot and pressure rollers.
2.10.5 CLEANING MECHANISM
The cleaning roller [A] is always in contact with the pressure roller [B]. It collects
toner and paper dust adhered to the surface of the pressure roller.
B027D562.WMF
B022D552.WMF
[A]
[B]
[C]
[D]
[A]
[B]
[E]
