SATO CL4NX User Manual

IEEE1284 Interface Connection (Standard)
108
• To use the RS-232C interface to connect with the computer, the printer's [Interface] >
[RS-232C] > [Interface] menu must be set to [RS-232C].
• The interface settings of the computer can be confirmed by the following. In the Device
Manager, right-click [Ports] > [Communications Port (COM1)] and select [Properties].
Then, check the [Port Settings] tab of the displayed Properties screen.

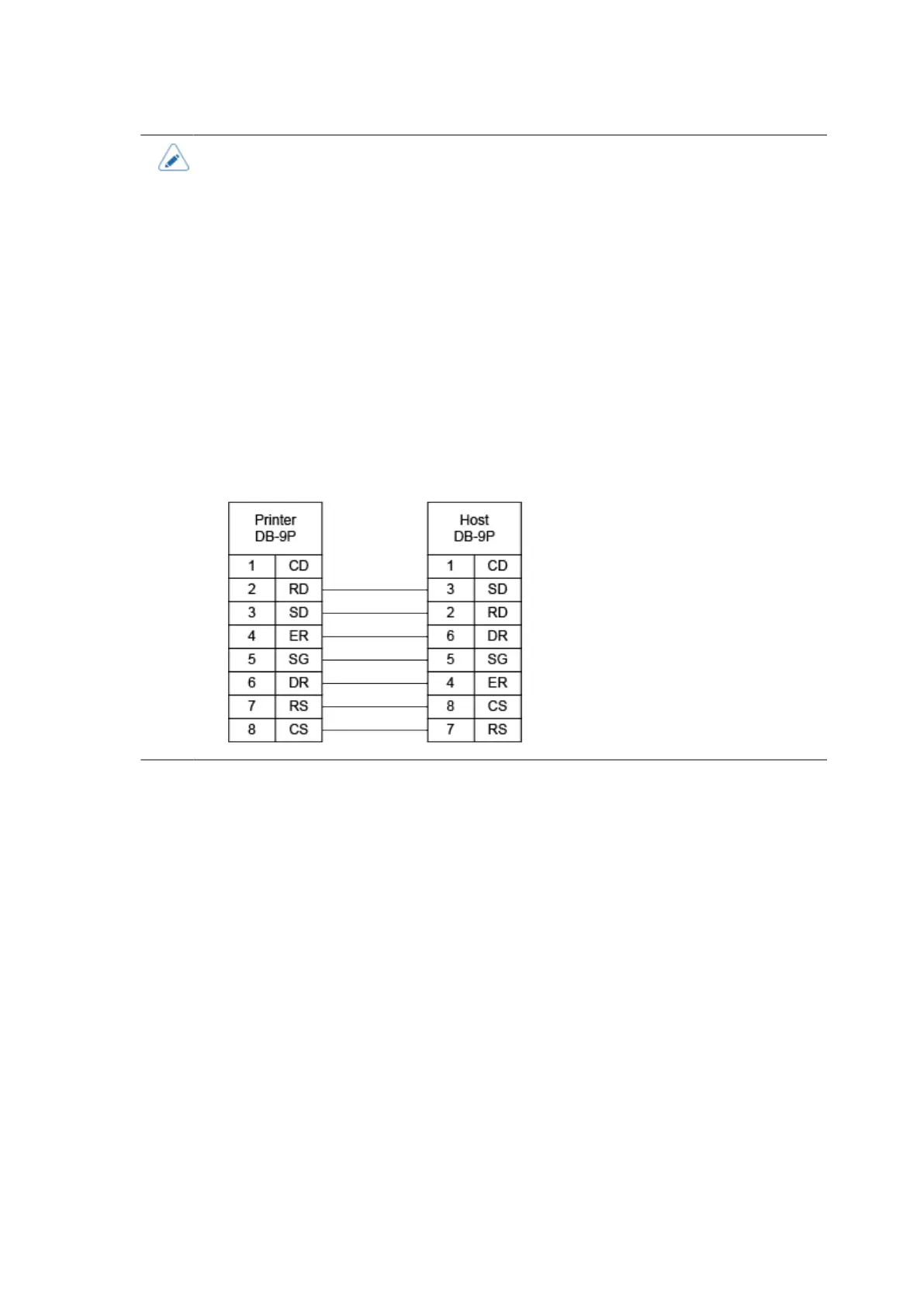

• For the RS-232C cable, note that the connection cable varies according to the
communication protocol setting. If you use the wrong cable, it will not operate correctly.
• If the communication settings differ between the computer and printer, it will not
operate correctly. A communication error will be detected.
• To use the printer driver, the communication protocol must be set to Status4. (The
initial value of the communication protocol for the printer's RS-232C interface is
STATUS4.)
• Be sure to use the recommended RS-232C cable.
• Printing using the USB serial conversion cable is not guaranteed. Also, no support for
the connection procedure is provided.
IEEE1284 Interface Connection (Standard)
Connect the interface cable when the printer is powered off.
Connect the IEEE1284-compliant cable to the IEEE1284 connector (1) of the printer.

SATO CL4NX Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Maximum roll diameter	220 mm
Maximum printing width	104 mm
Printing media thickness	0.06 - 0.26 µm
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	271 mm
Height	321 mm
Weight	15000 g
