SATO CL4NX User Manual

697

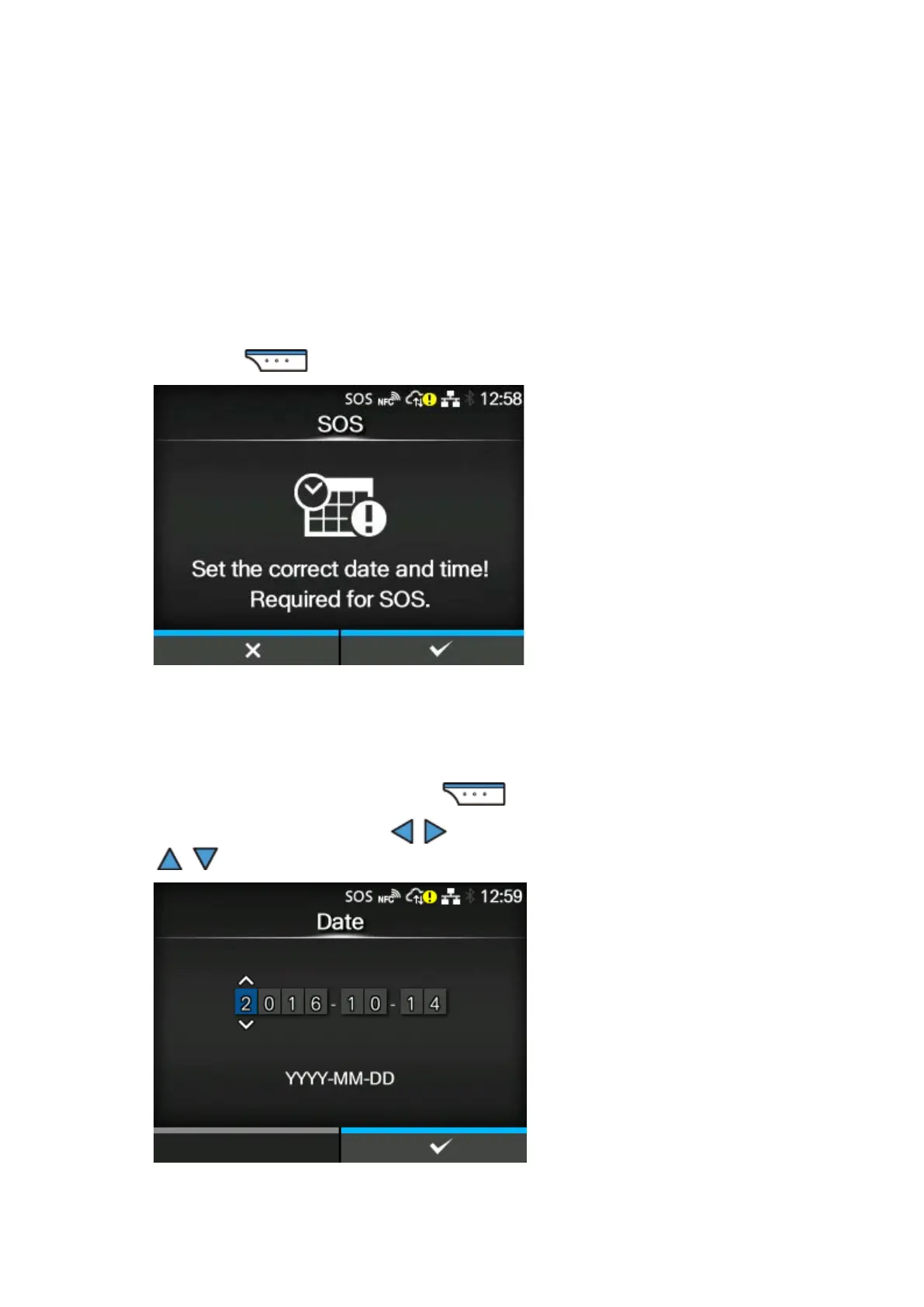

Operating the Date and Time Settings Notification Screen of SOS (SATO
Online Services) (SOS users only)
To use the SOS (SATO Online Services) function, date and time settings of the printer must be set
correctly. A notification screen appears when there is a problem with the date and time settings and
the printer cannot connect to SOS. Follow the steps on the screen and set the date and time correctly.
1.
Press the button on the notification screen.
Clear the NTP server connection problem when the NTP function is enabled. The notification
screen appears every 15 seconds until the NTP server connection problem is cleared.
Date and time setting screen appears when the NTP function is disabled or the optional RTC kit is
installed. Proceed to step 2.
2.
Set the correct date and press the button.
Select the digit for input using the / buttons and select the number to input using the
/ buttons.

SATO CL4NX Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Maximum roll diameter	220 mm
Maximum printing width	104 mm
Printing media thickness	0.06 - 0.26 µm
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	271 mm
Height	321 mm
Weight	15000 g
