SATO CL4NX User Manual

[Barcode Checker]
478

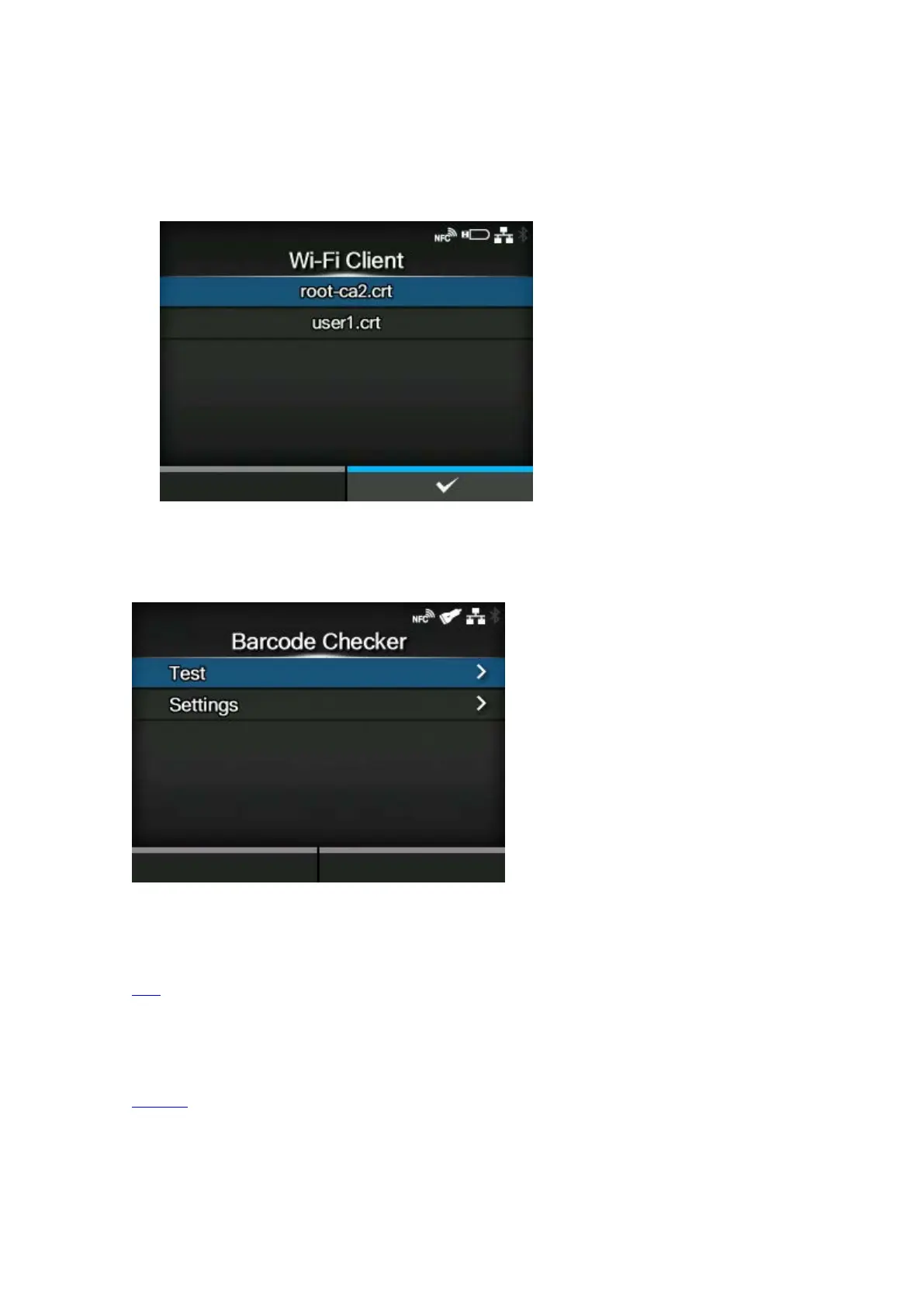

2. Insert the USB memory into the USB connector (Type A).
3. Go to the [Settings] > [Tools] > [Certificates] menu.
4. Select the certificate you want to install. Refer to the item description above.
5. Select the certificate file from the list.
[Barcode Checker]
Set the barcode check function.
By connecting a barcode checker to the printer, you can check the barcodes after printing.
The setting items are as follows:
Test
Set up the barcode checker.
◦ Available only if you have connected the barcode checker.
Settings
Set the barcode check function.

SATO CL4NX Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Maximum roll diameter	220 mm
Maximum printing width	104 mm
Printing media thickness	0.06 - 0.26 µm
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	271 mm
Height	321 mm
Weight	15000 g
