SATO CL4NX User Manual

605
Head Pressure Setting

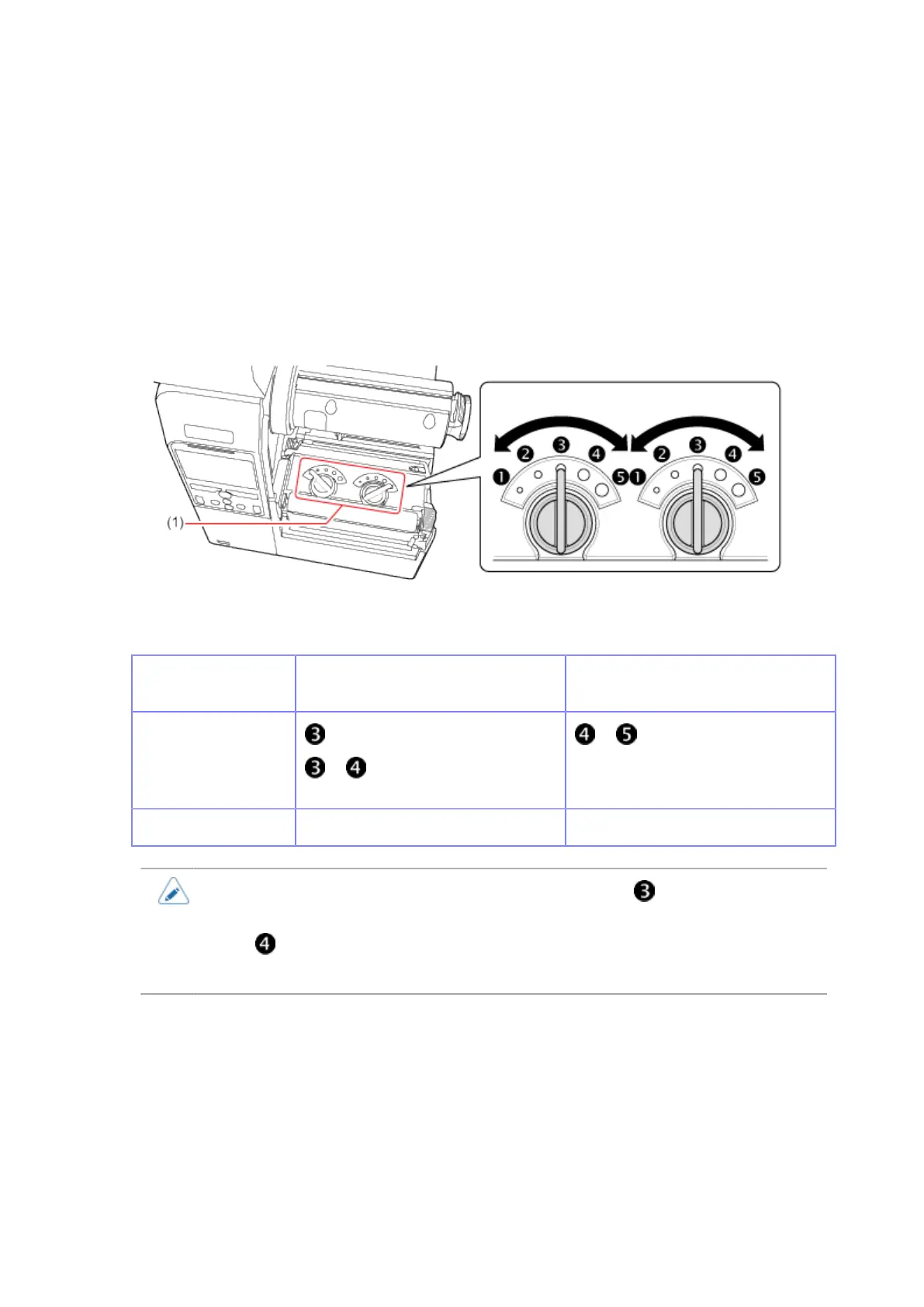

Set the head pressure according to the media thickness, including the liner.
1. Open the top cover of the printer.
2. Find the adjustment dials (1) on the top of the print head assembly.
3. Turn the adjustment dials (1) according to the media thickness and set the head
pressure.
Media Thickness
(mm (inch))
0.060 - 0.200 (0.0024" - 0.0079") 0.200 - 0.268 (0.0079" - 0.011")
Adjustment Dials
(Left and Right, CL4NX only)
to (Left and Right, CL6NX
only)
to
(Left and Right)
Reference Thin paper/normal label, etc. Thick paper/tag, etc.
•
The factory default settings of both Left and Right dials are .
• For CL6NX dispenser model, the factory default settings of both Left and Right dials
are .
• The thickness of the media includes the liner.
Be sure to set the pressure balance after adjusting the head pressure.

SATO CL4NX Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Maximum roll diameter	220 mm
Maximum printing width	104 mm
Printing media thickness	0.06 - 0.26 µm
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	271 mm
Height	321 mm
Weight	15000 g
