SATO CL4NX User Manual

595

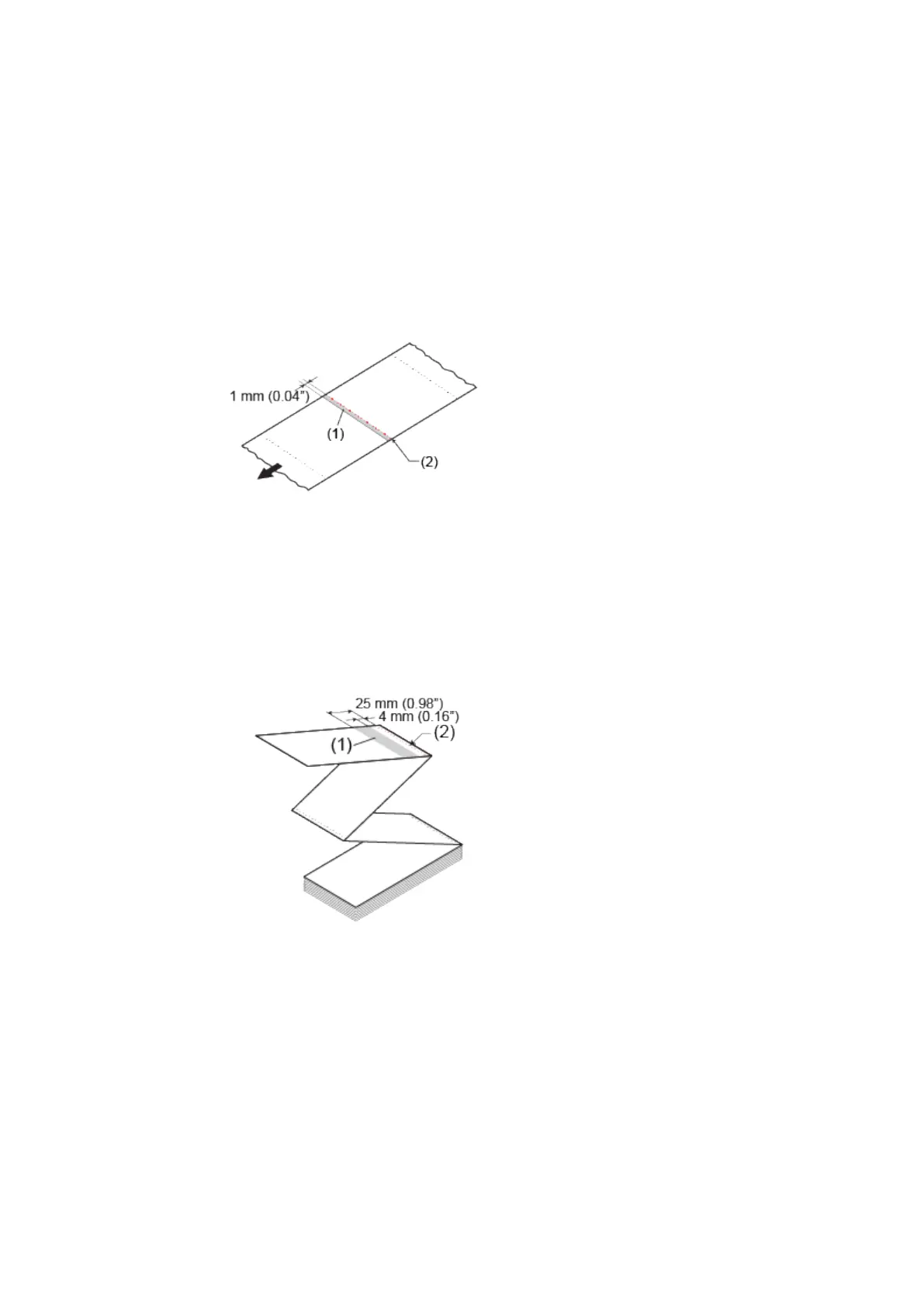

Cut Position When Using the Media with Perforated Line in Cutter Mode
Adjust the cut position so as not to cut the media on the perforated line and on the area near side from
the perforated line (the area is shown in the figure below).
When the media is cut on the area not to be cut, it could cause a paper jam or damage.
• Media Roll
The area not to be cut is on the perforated line and on the area within 1 mm (0.04") near side
from the perforated line.
(1) Area not to be cut
(2) Perforated line
• Fan-fold Media
The area not to be cut is on the perforated line and on the area within 4 to 25 mm (0.16" to 0.98")
near side from the perforated line.
(1) Area not to be cut
(2) Perforated line

SATO CL4NX Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Maximum roll diameter	220 mm
Maximum printing width	104 mm
Printing media thickness	0.06 - 0.26 µm
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	271 mm
Height	321 mm
Weight	15000 g
