Diagnostics and service
5.3 Displaying versions
HMI Advanced (IM4)
Commissioning Manual, 03/2009, 6FC5397-0DP10-3BA0
141
5.3 Displaying versions
Overview
The version data displayed under “NCU Version” state the software versions on the CF card.
This especially applies to measurement cycles and cycle versions.
● Version data, NCU
● Version data, HMI files
● Version data, cycles
● Version data, definitions
The measurement cycles and cycles that are used by HMI-Advanced are available on the
hard disk of the PCU. Their version can be queried via the horizontal softkeys.
With the “Detail” softkey, you can query further information about a version, for example, to
pass it on to hotline support personnel if service is required.

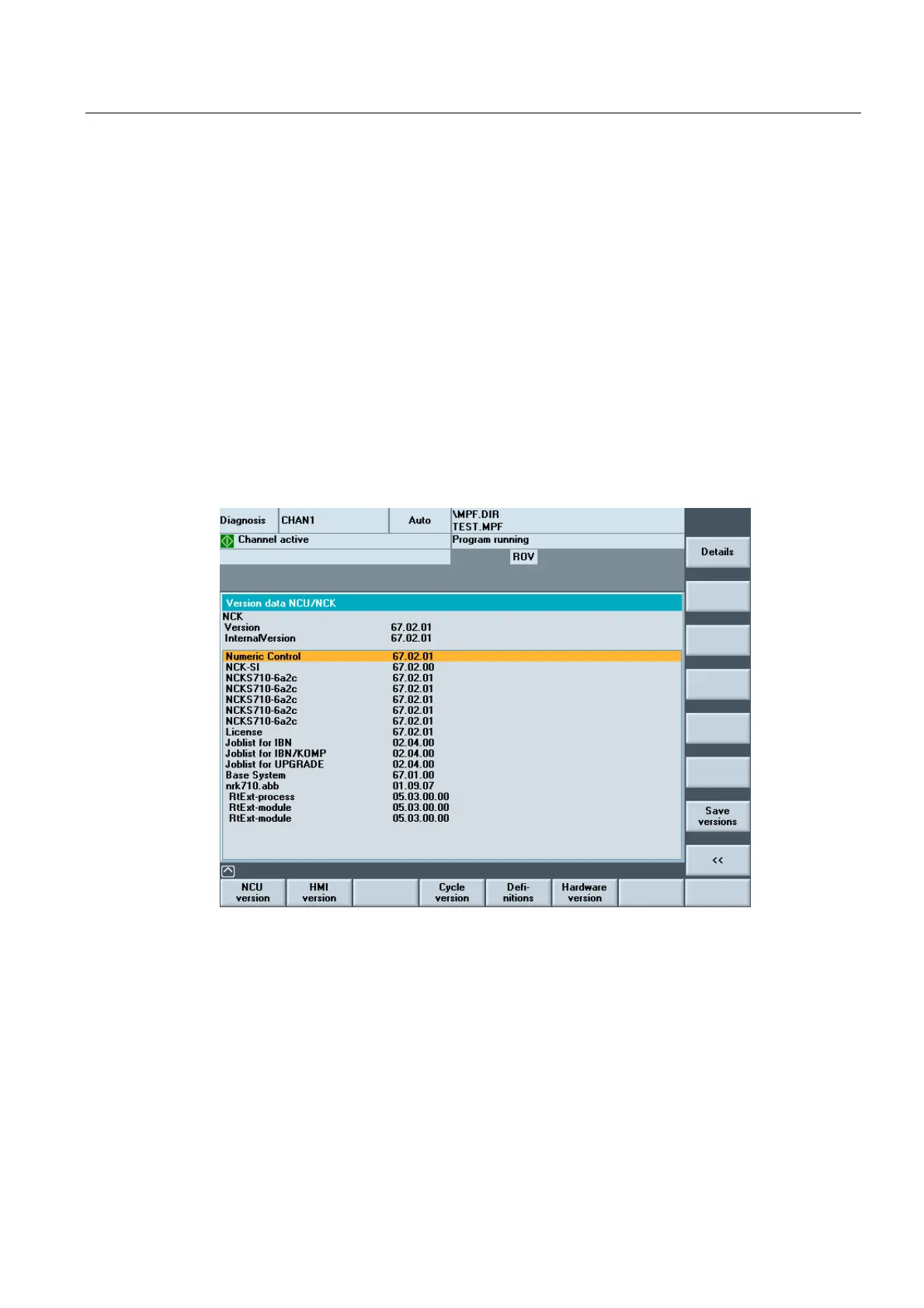

Figure 5-3 NCU version (example)
