Commissioning a system
1.1 Delivery condition of the system
PCU-Basesoftware (IM8)
6 Commissioning Manual, 03/2009, 6FC5397-1DP10-4BA0
Supplied software on the PCU
The software installed on delivery of the PCU includes the components below, among
others:
MS Windows XP Professional SP2
Internet Explorer V 6.0
MPI driver V 6.03
Symantec Ghost (default) V 8.2 (incl. Ghost Explorer)
TCU Support
(is already installed and available on the hard disk under
D:\Updates, if it must be re-installed.)
V 8.6
Documentation for all Ghost tools is supplied on the PCU’s hard disk under E:\TOOLS.
Note
For the system component versions contained in the PCU Basesoftware, see the
C:\BaseVers.txt file.
1.1.1 Hard disk partitions
Division of the hard disk
The hard disk has 40 GB of storage capacity and is divided into a primary partition C and an
expanded partition with the three logical drives D, E and F which work with NTFS file access.
Depending on the order details, the HMI system software may be pre-loaded on delivery. It is
installed subsequently by the customer the first time the system is booted up.
For reasons of data security, the HMI system software and the Windows XP system software
are distributed on the different hard disk partitions.

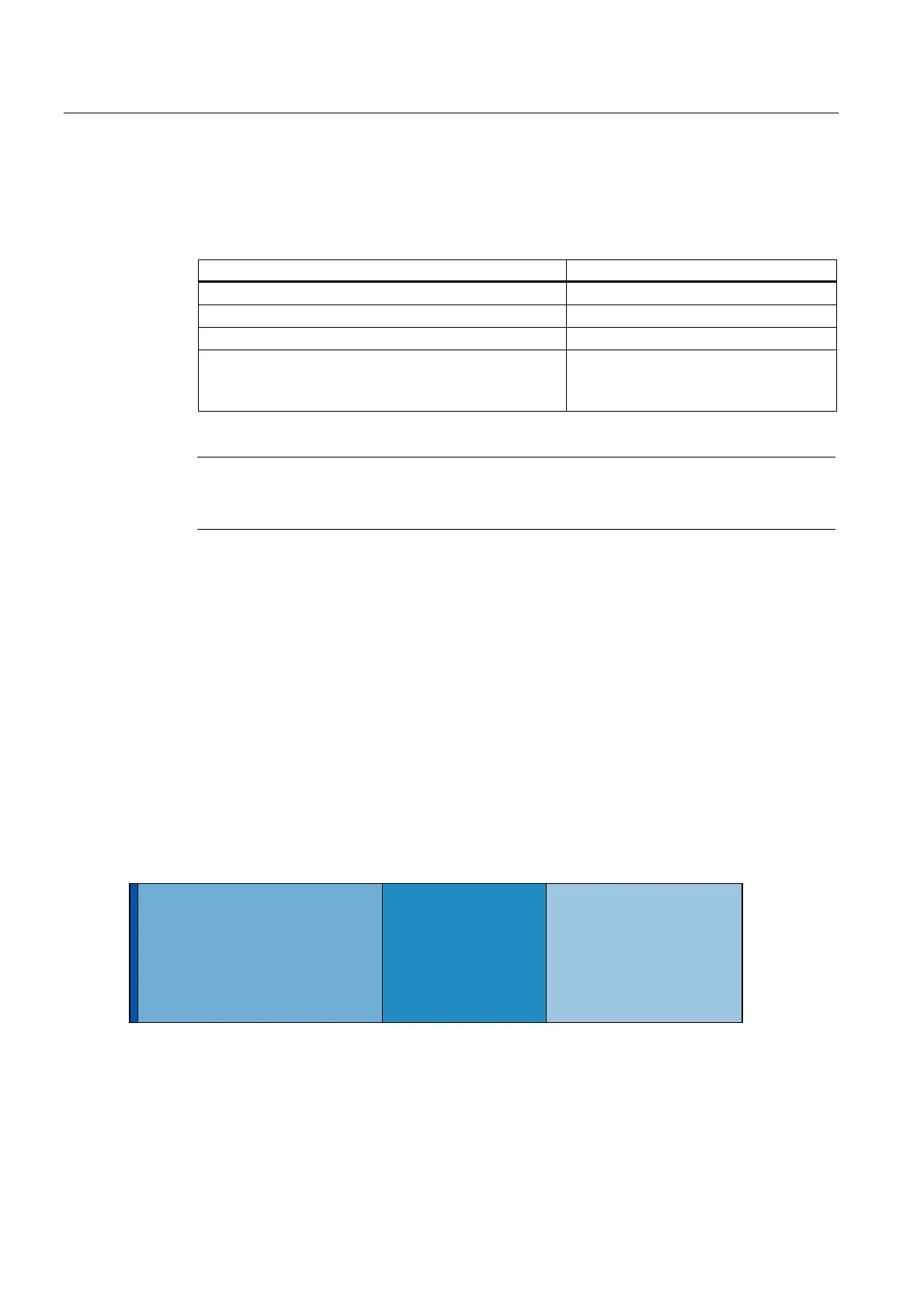

The following figure shows how the hard disk of the PCU is used:
(0(5*(1&<&
6<67(0(703' 86(5)
*%*% FD*%
*%
Figure 1-1 Division of the hard disk
