3RT1/3RH1 contactors

SIRIUS System Manual

GWA 4NEB 430 0999-02b

3-37

The following table shows you the components of the kits for the contactor

combination for reversing in frame size S2 and S3 and explains how to put it

together:

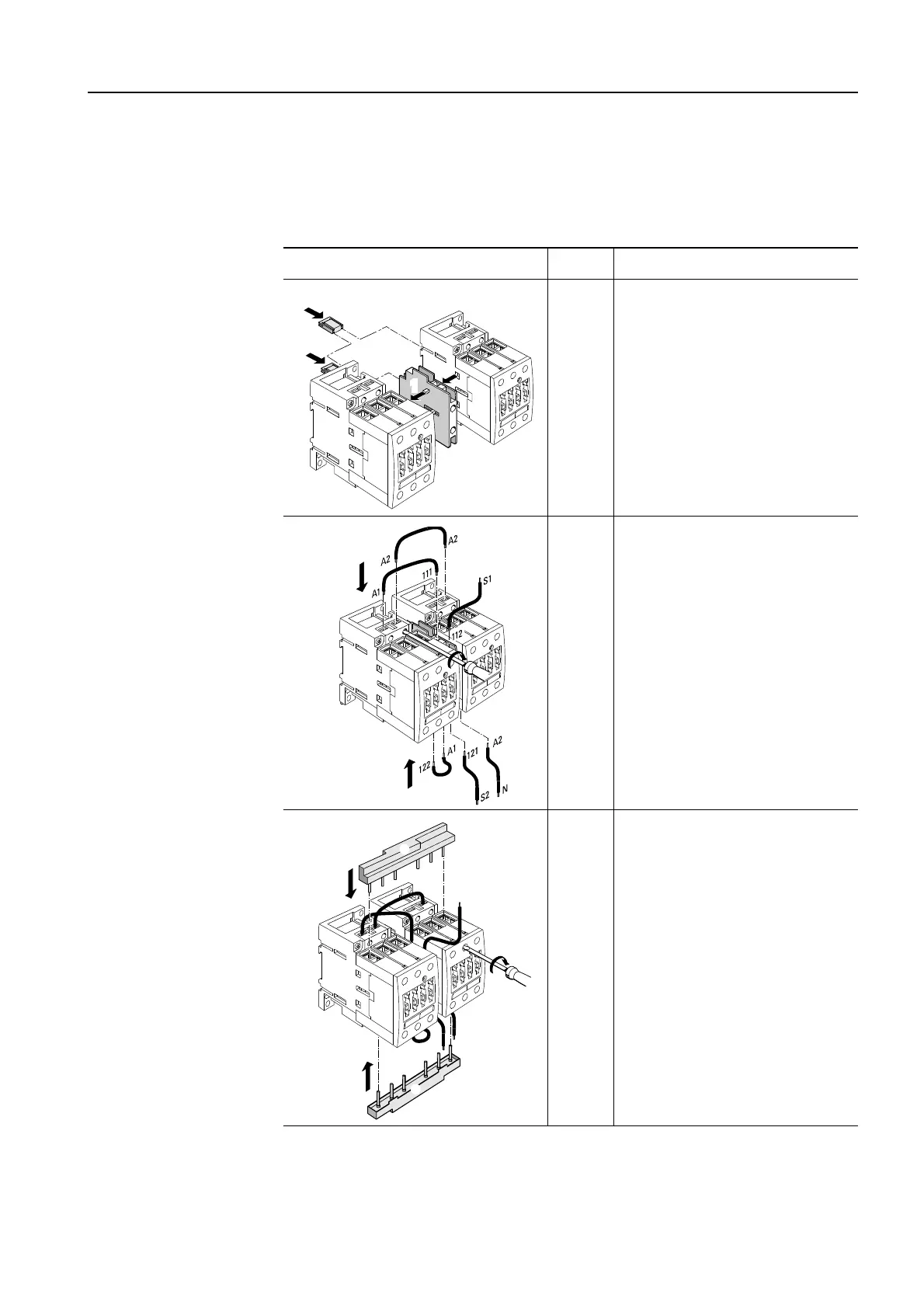

Table 3-18: Assembling the contactor combination for reversing (frame sizes S2/S3)

Drawing: frame size S2 (S3) Step Procedure

1/2/3

Mount the mechanical inter-

lock between the two contac-

tors

(1/2),

and insert the 2

connecting clips (10 mm spa-

cing)

(3)

on the back of the two

contactors.

Wire the actuating voltage and

the electrical reversing interlock

using the auxiliary conducting

paths.

5/6

Attach the wiring modules

(5)

in order to connect the main

conducting paths and tighten

the terminals

(6)
