8.3.5 Commissioning
Every SIRIUS 3RW soft starter comes with the following warning, which it is
imperative to heed:
Caution
This device has been tested carefully at the factory and found to be in wor-
king order.
During transportation, however, it may have been subject to stresses over
which we have no control. The bypass relays in the main circuit may be in an
undefined state.
In the interests of complete safety, the following procedure should be used
at commissioning or after the replacement of the SIRIUS soft starter:
First
, apply the supply voltage to A1/A2 in order to put the impulse series
relays in a defined switching state.
Then
, switch on the main circuit (L1/L2/L3).
If you do not do this, the motor can be switched on inadvertently and cause
damage to people or parts of the system.
Settings

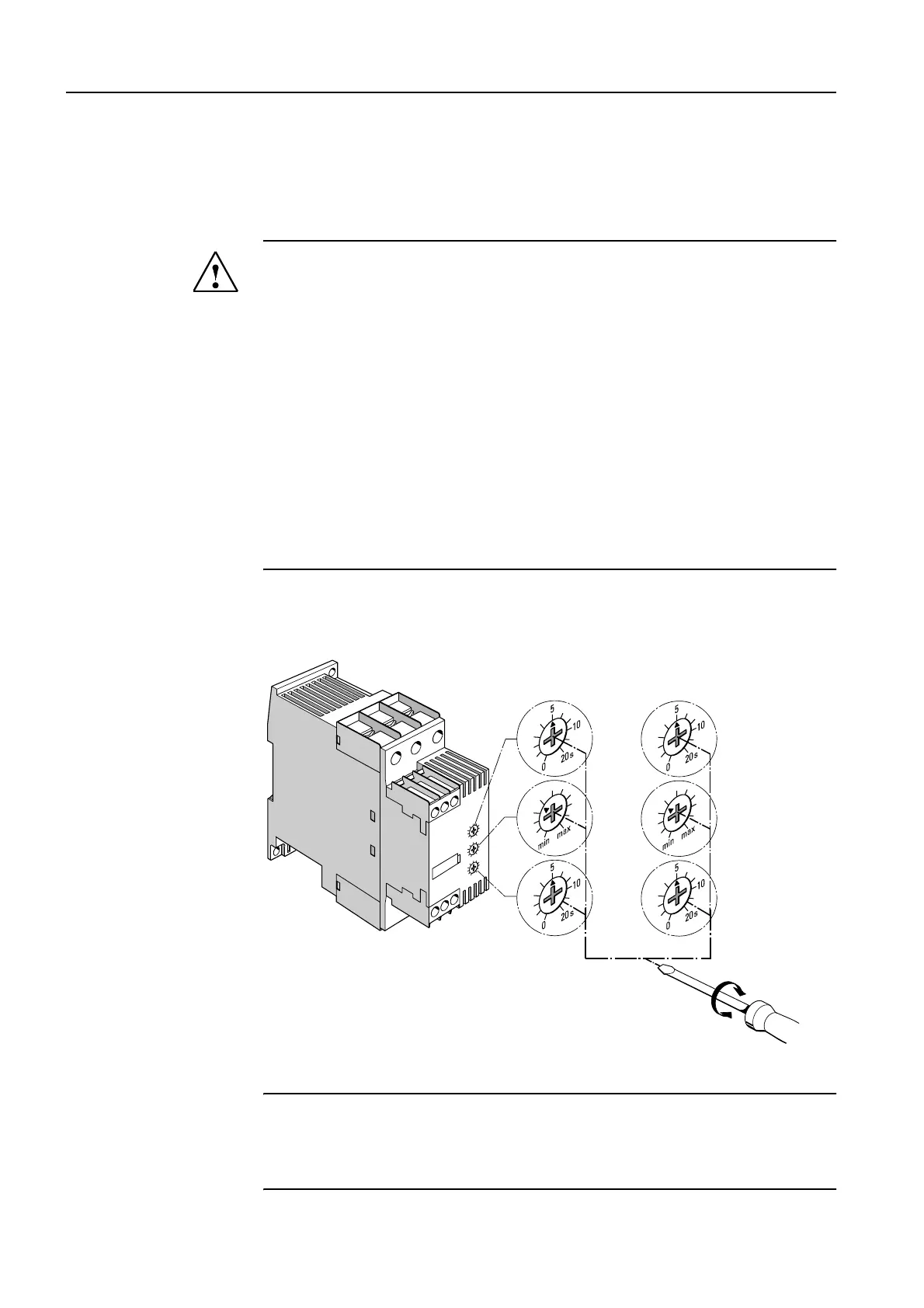

Figure 8-15: Settings, 3RW3
Note
At commissioning, the settings of the potentiometers for the ramp time and
the starting voltage should remain unchanged. These set values must be
obtained in a trial.
3RW30
t
R
on
u
S
t
R off
3RW31
t
R1
u
S
t
R2
