System overview
SIRIUS System Manual
GWA 4NEB 430 0999-02b
1-13
Device combinations

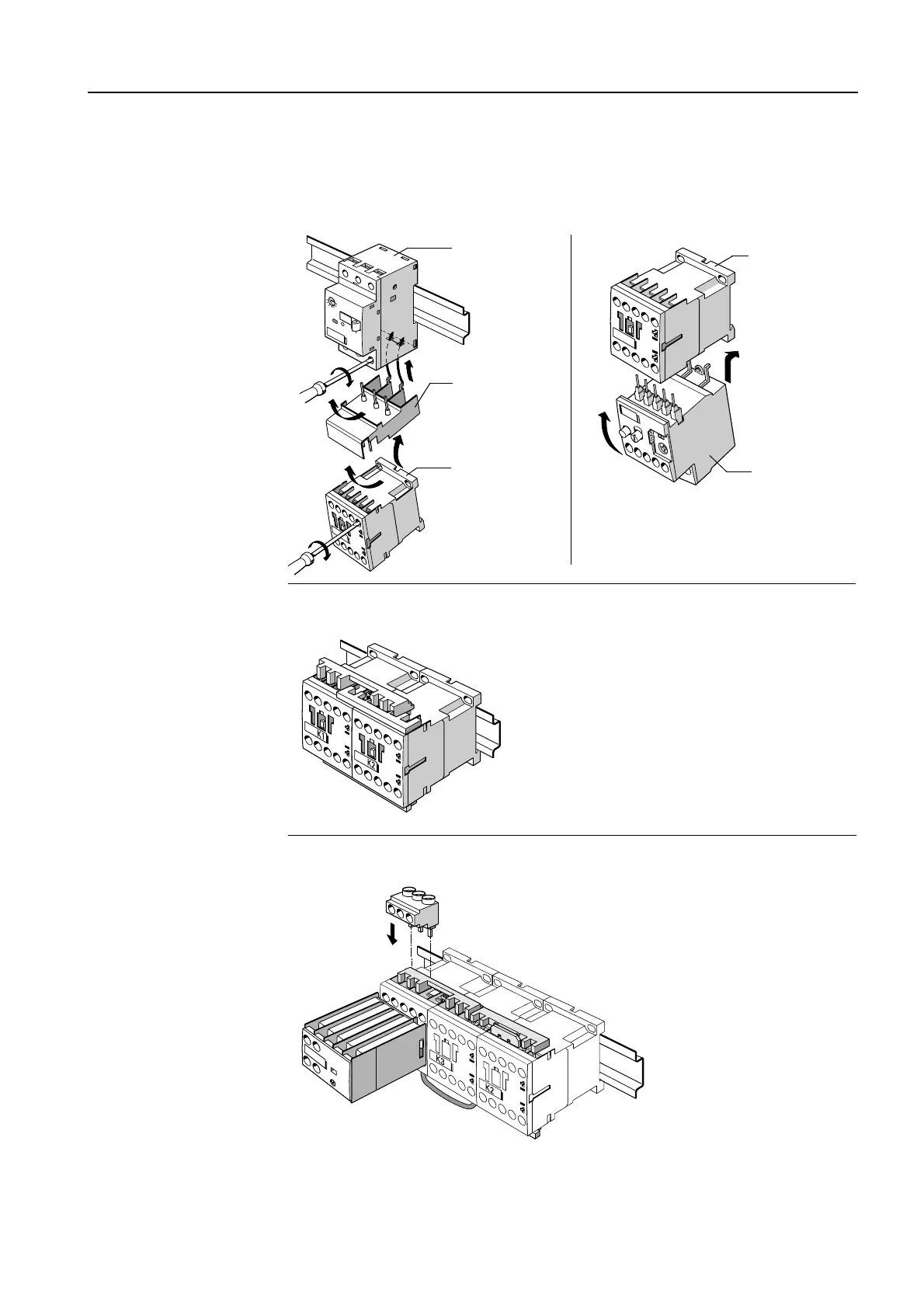

The following diagrams show you the possible device combinations, using
the S00 frame size as an example:
Figure 1-6: Device combinations
3RV10 circuit
breaker
3RA19 link
module
3RT10 contactor
3RT10 contactor
3RU11 overload
relay
Fuseless
load feeder
Fused
load feeder
3RA13 reversing combination
3RA14 star-delta combination
