3RA1 fuseless load feeders
SIRIUS System Manual
GWA 4NEB 430 0999-02b
5-5
5.2.2 Mounting kits for self-assembly
Because SIRIUS is a modular system, the standard devices fit together opti-
mally both mechanically and electrically. The fuseless load feeders can
therefore be assembled quickly and easily in all four frame sizes. To this end,
the circuit breaker and the contactor are connected to the corresponding kit.
Kits
There are kits for reversing feeders for mounting on:
• Rail, frame sizes S0, S2, S3: mounting kit for reversing operation
frame size S00: wiring kit for reversing operation
• Busbars, frame sizes S00, S0, S2: mounting kit for reversing operation

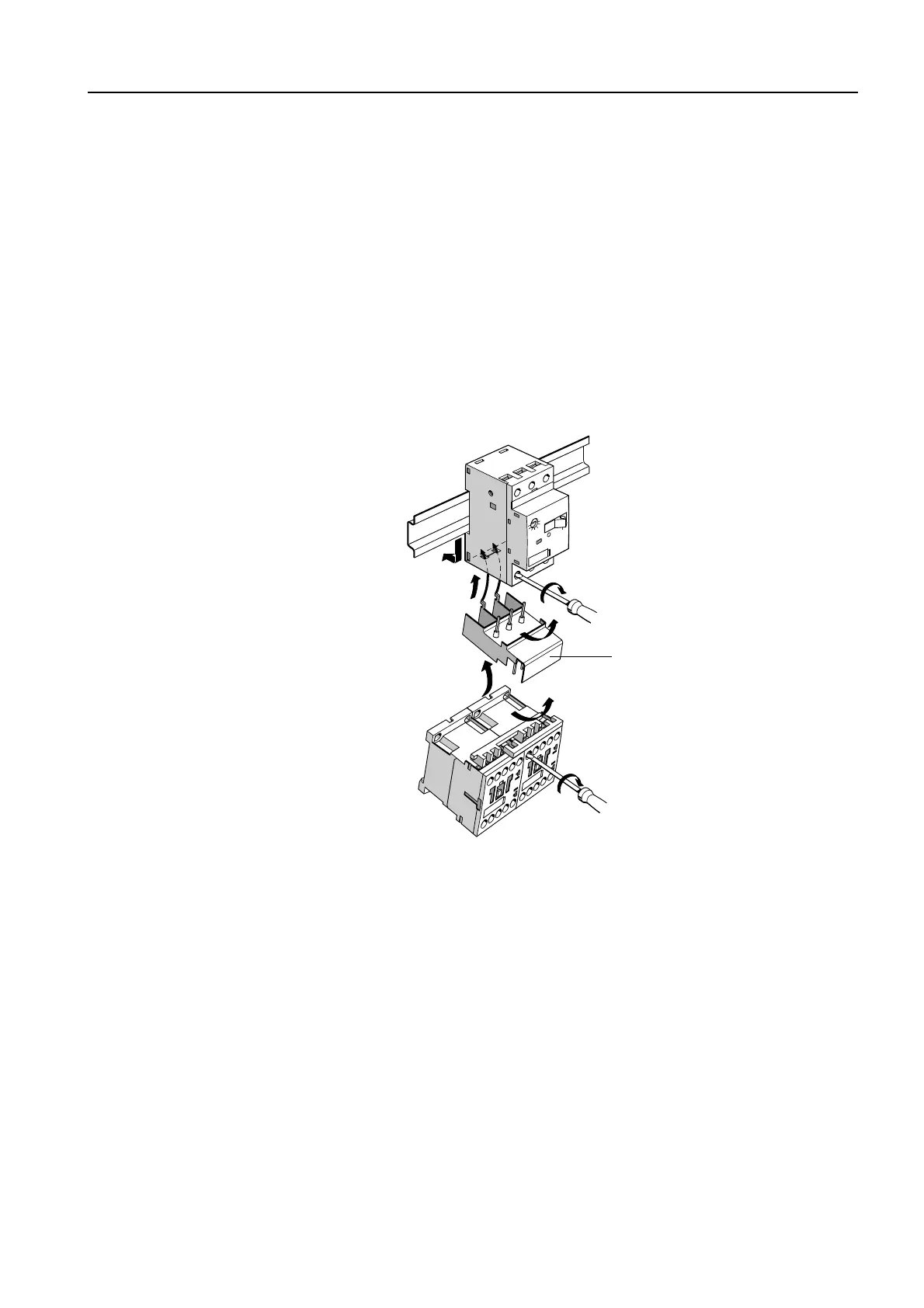

The following illustration shows how to assemble the fuseless load feeder
of frame size S00 for reversing operation and rail mounting:
Figure 5-2: Self-assembly of a fuseless load feeder (frame size S00)
5.2.3 Complete devices
The fuseless load feeders are also available fully assembled:
• Up to 22 kW in the case of direct starters
• Up to 11 kW in the case of reversing starters
4
5
6
1
2
3
Adapter
(3RA1911-1A)
7
