3RT1/3RH1 contactors
SIRIUS System Manual
GWA 4NEB 430 0999-02b
3-81
3.4.7.4 Soldering pin connector for frame size S00
Description
The standard contactors of frame size S00 in the SIRIUS range can be sol-
dered onto printed circuit boards by means of the soldering pin adapter.
Soldering pin connection is possible:
• For contactors with an integrated auxiliary contact
• For contactors with an attached 4-pole auxiliary switch block
• For the reversing wiring of the S00 contactors. This involves carrying out
the reversing wiring before soldering it on the printed circuit board
Mounting main con-
tacts

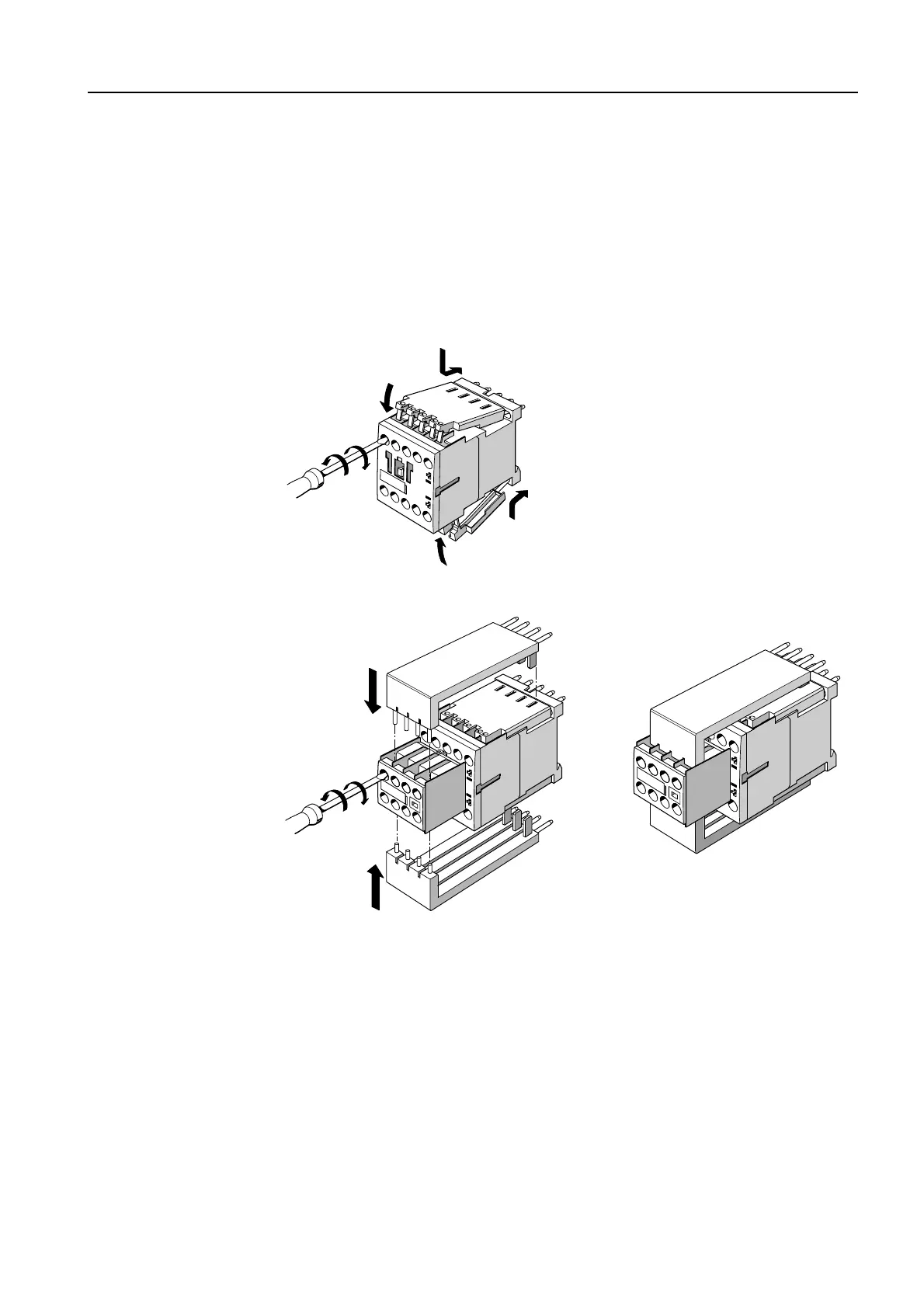

Figure 3-63: Soldering pin connection, mounting
Mounting on 4-pole
auxiliary switch block
Figure 3-64: Mounting the soldering pin connection on a 4-pole auxiliary switch block
The soldering pin connectors are
inserted above and below in the screw-
type terminals of the contactors.
1
4
2
3
3
2
