3RU11, 3RB10, and 3RB12 overload relays
SIRIUS System Manual
GWA 4NEB 430 0999-02b
4-7
3RB12

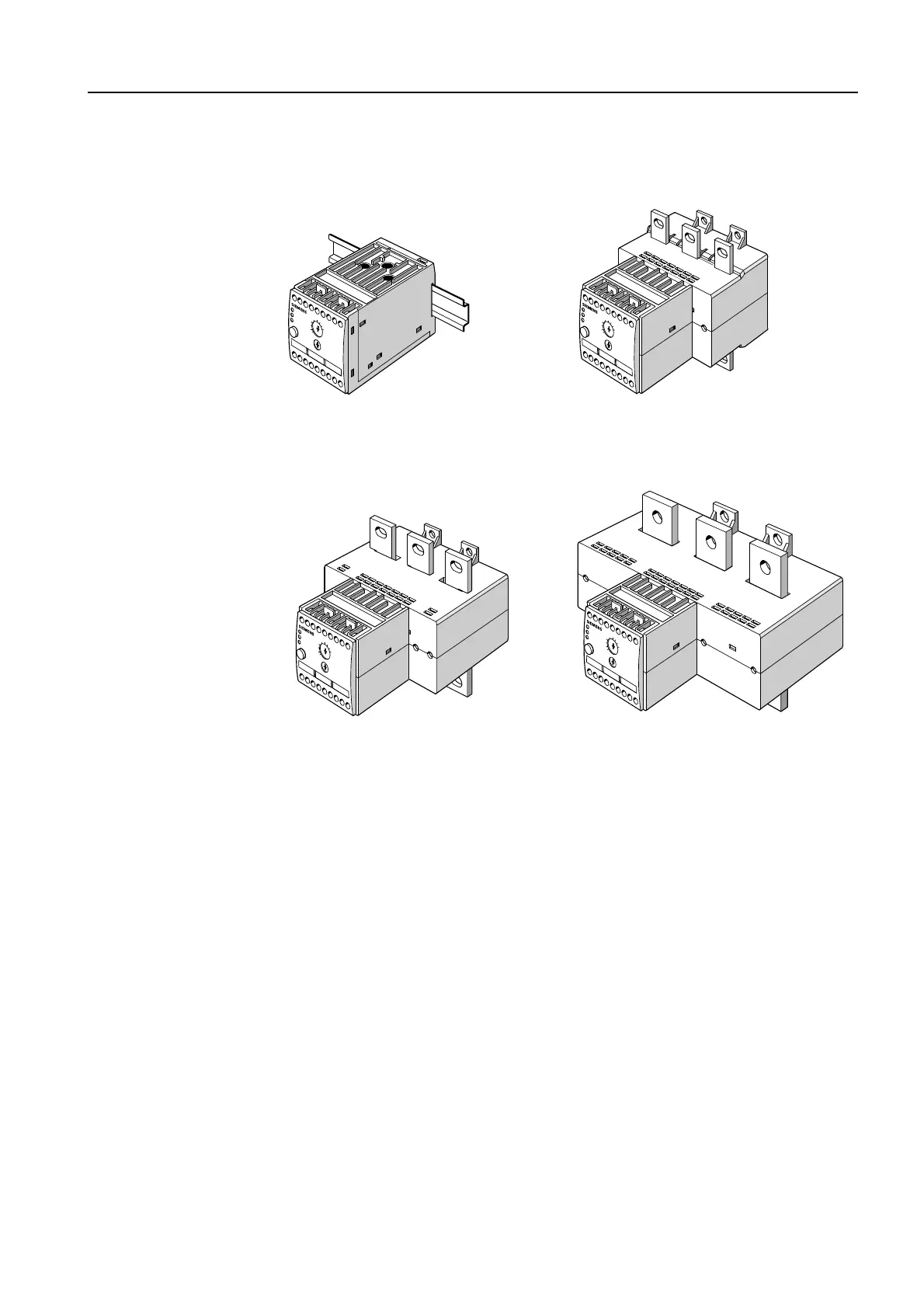

Figure 4-3: 3RB12 electronic overload relay
3RB12 46
Stand-alone installation
with bar-type transformer
3RB12 53
3RB12 57 3RB12 62
