Siemens SIRIUS System Manual

3RT1/3RH1 contactors
SIRIUS System Manual
GWA 4NEB 430 0999-02b
3-105
3RT19 time-delay auxiliary switch block

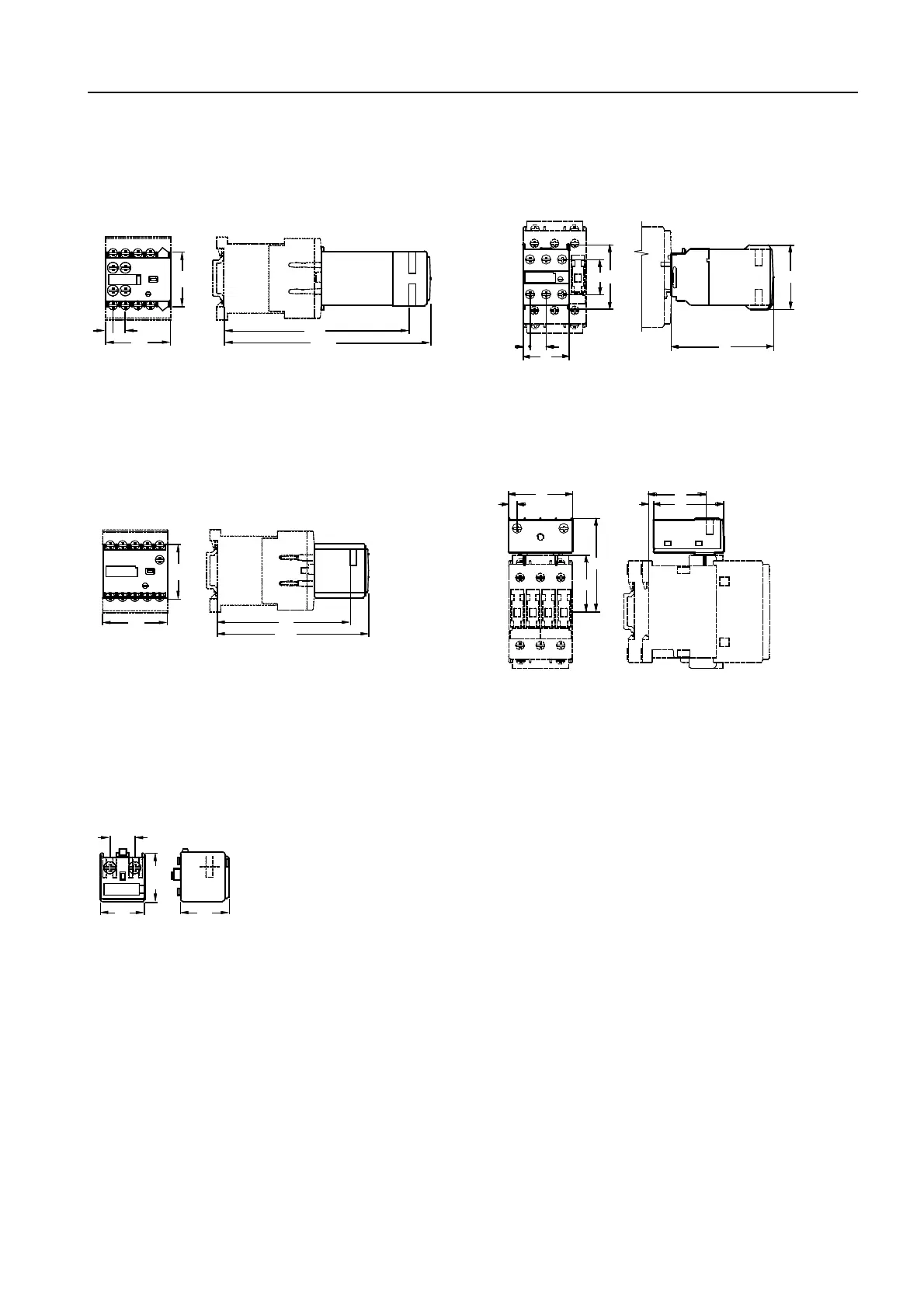

Figure 3-96: 3RT1916-2E.., -2F.., -2G.. (frame size S00) 3RT19 26-2E.., -2F.., -2G.. (frame sizes S0 to S3)
3RT19 time-delay time relay blocks, on-delay
Figure 3-97: 3RT19 16-2 (frame size S00) 3RT19 26-2 (frame sizes S0 to S3)
For attachment to the front of the contactor Attachable on the top of the contactor
(dimensions also apply to off-delay time relay blocks) (dimensions also apply to off-delay time relay blocks and
to coupling links (3RH19 24-1GP11))
3RH19 11 auxiliary switch block, 1-pole
Figure 3-98: 3RH19 11-1AA.., 3RH19 11-1BA..
Infeed from one side
NSB00254
38
9
5
45
127
143
NSB00772
25
46
5
33
73
46
38
45
NSB00256
92
105
45
64
41
50
66
40
NSB00773
NSB00255
27
27,5
24
13,6
13.6
27.5
